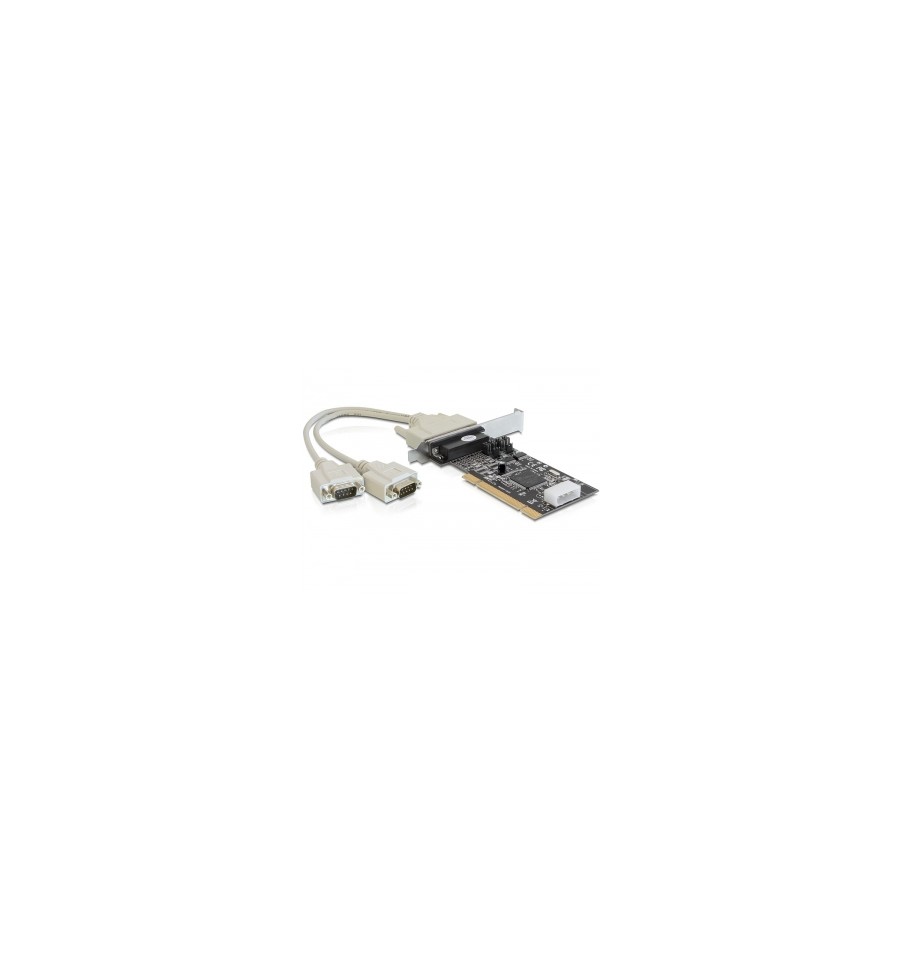

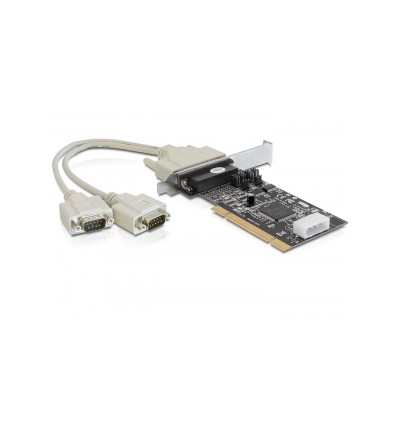

Delock PCI Card - 2 x Serial with voltage supply, Low profile bracket

Description

The Delock PCI card expands your PC by two external serial ports. The serial ports support a voltage of 5 V and 12 V, which can be set through the jumper. Thus you do not require an additional power supply for the connected devices.

Specification

• Chipset: Oxford OXuPCI952

• Connector:  2 x serial RS-232 DB9 male

1 x internal power connector 4 pin Molex male

• Serial connector will be lead outside through a cable

• Data transfer rate up to 230.4 Kb/s

• Compatible with 16C950 UART

• FIFO: 128 byte

• ±15KV ESD protection on all signal pins

• 5 V or 12 V voltage can be set individually for each port through  the jumper (Pin 1/4/8/9)

• I/O address and IRQ assigned by BIOS

• 32-Bit PCI standard 3.0

• Also suitable for a 64-bit PCI slot

System requirements

• Windows XP/XP-64/Vista/Vista-64/7/7-64

• PC with one free PCI Slot

• Power supply with a free Molex power connector

Package content

• PCI card

• 1 serial connecting cable

• Low profile bracket

• Driver CD

• User manual

Package
• Retail Box
