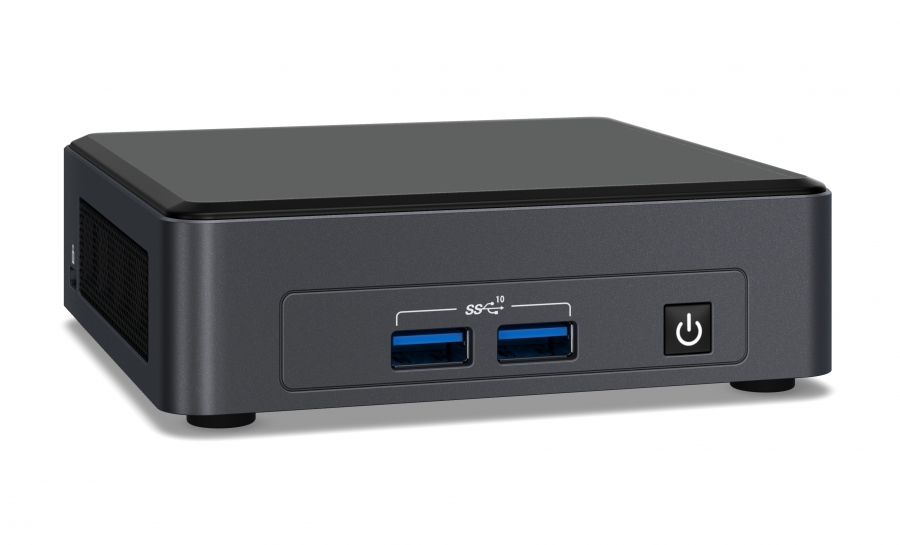

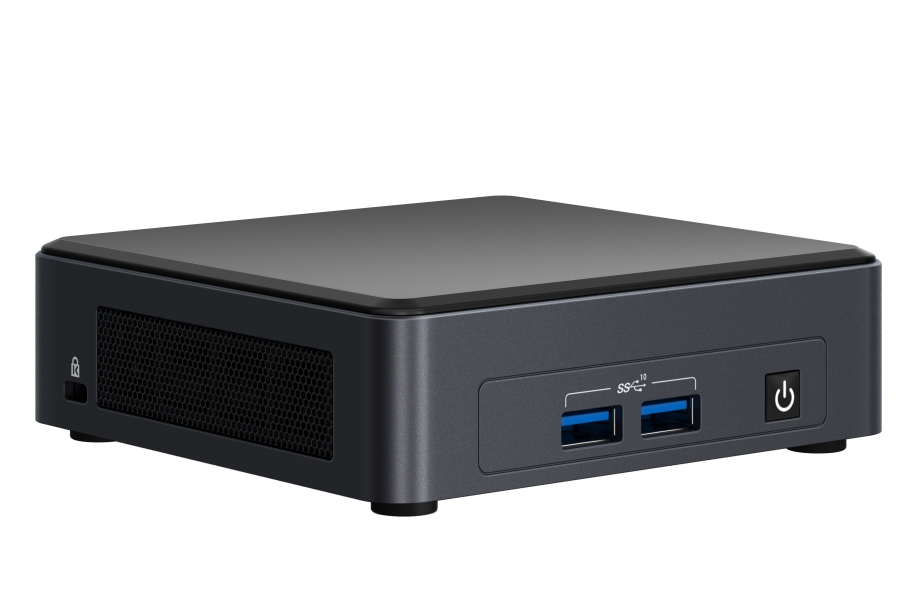

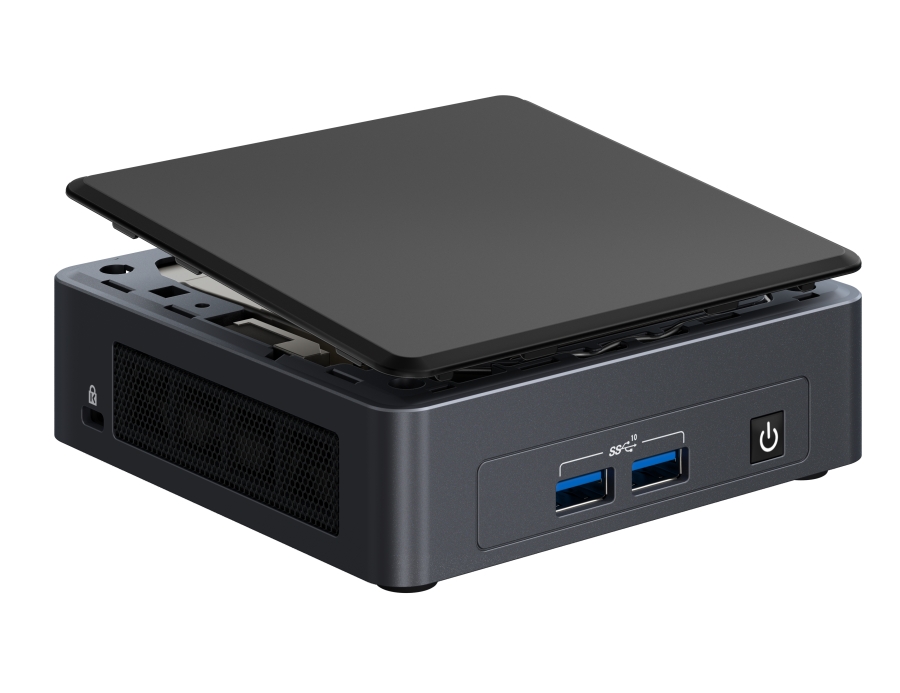

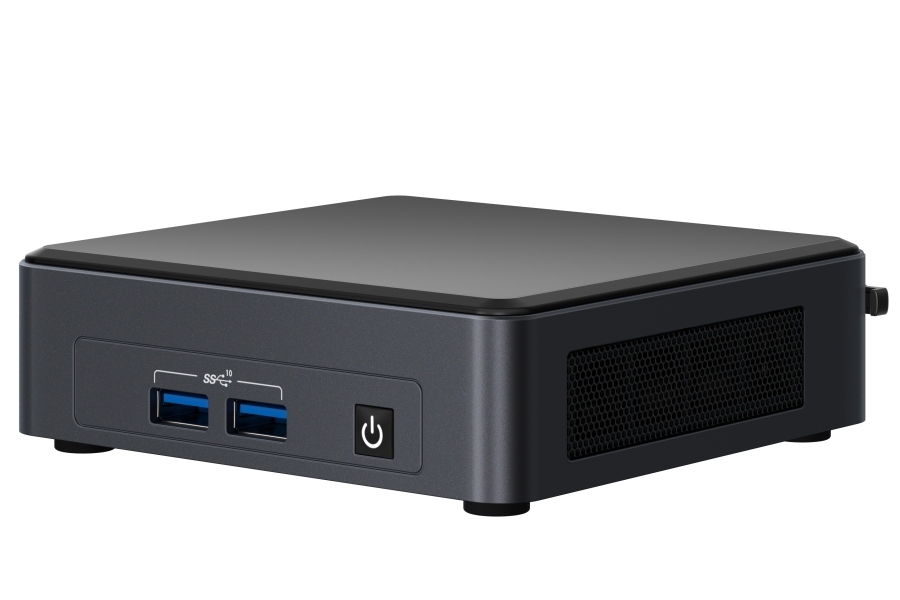

Intel NUC 11 NUC11TNKi7 Professional Kit

Manufacturer: Intel

Reference BNUC11TNKI70Z02

Condition: New

More info

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1165G7
Processor cores	4
Processor threads	8
Processor lithography	10 nm
Processor boost frequency	4.7 GHz
Processor cache	12 MB
Thermal Design Power (TDP)	28 W
CPU configuration (max)	1
Memory slots type	SO-DIMM
Number of memory slots	2
Number of DIMM slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
ECC	N
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5
SSD form factor	M.2
Number of storage drives supported	2
On-board graphics card	N
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Number of displays supported	2
Built-in speaker(s)	N
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
LAN controller	Intel I225-LM
Bluetooth	Y
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Internal USB 2.0 ports quantity	2
Serial port via internal header	Y
Number of SATA III connectors	1
M.2 card slot (wireless)	2230 (E-key) (E)
USB ports quantity	4
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
PCI Express slots version	4.0
Chassis type	UCFF
Product colour	Black
Cooling type	Active
Product type	Mini PC barebone
On/off switch	Y
LED indicators	Y
Cable lock slot	Y
Cable lock slot type	Kensington
Motherboard form factor	UCFF
Number of processors supported	1
Windows operating systems supported	Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64
Linux operating systems supported	RedHat EL Linux, Ubuntu 20.04 LTS
Compatible operating systems	Windows 11 Home, Windows 11 Pro, Windows 10 Home, 64-bit, Windows 10 IoT Enterprise, Windows 10 Pro, 64-bit, Red Hat Linux, Ubuntu 20.04 LTS*
Embedded options available	N
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Idle States	Y
Intel Trusted Execution Technology	N
Intel Stable Image Platform Program (SIPP)	N
Intel® Optane™ Memory Ready	N
Intel® Platform Trust Technology (Intel® PTT)	Y
Intel Virtualization Technology (VT-x)	Y
Harmonized System (HS) code	84713000
Power supply type	External AC adapter
Number of power supply units	1
AC adapter output voltage	12 - 24 V
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 40 °C
Width	117 mm
Depth	112 mm
Height	37 mm
Power cord included	Y
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Number of SATA connectors	1
HDD size	2.5"
DC input voltage	12 - 24 V
Processor ARK ID	121578
Status	Launched
Launch date	Q1'22
