New

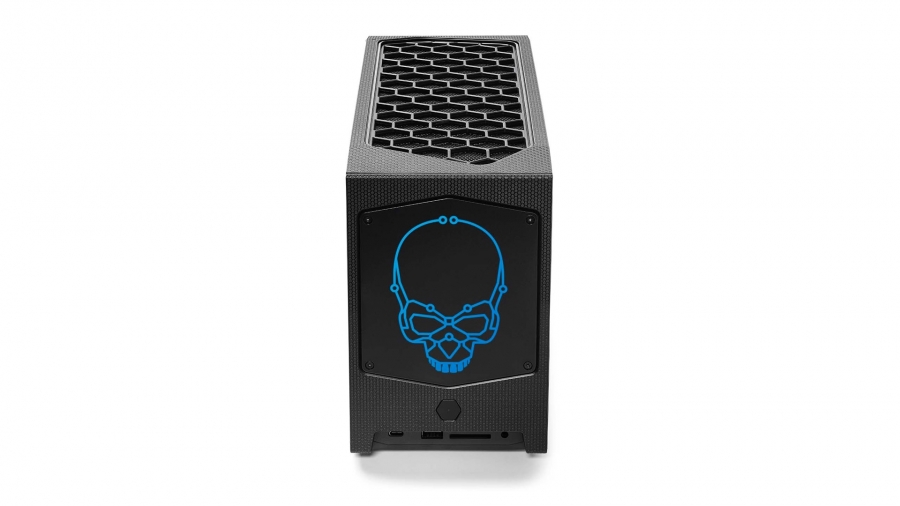

Intel NUC 12 NUC12DCMi7 Extreme Kit

Manufacturer: Intel

Reference RNUC12DCMI70002

Condition: New

More info

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.Max Turbo Frequency Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.Intel vPro® Platform Eligibility The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.Intel® Rapid Storage Technology Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.Integrated Graphics Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.Intel® Optane™ Memory Supported Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.RAID Configuration RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700
Processor boost frequency	4.9 GHz
Processor cache	25 MB
Thermal Design Power (TDP)	65 W
Memory bandwidth supported by processor (max)	51.2 GB/s
CPU configuration (max)	1
Memory slots type	SO-DIMM
Number of memory slots	2
Number of DIMM slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	51.2 GB/s
Memory voltage	1.2,1.35 V
Removable memory card slot	SDXC with UHS-II support
ECC	N
Non-ECC	Y
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
RAID levels	0, 1
Card reader integrated	Y
Compatible memory cards	SDXC
On-board graphics card	N
Graphics card family	Intel
On-board graphics card model	Intel UHD Graphics 770
Discrete graphics card model	Not available
Number of displays supported	3
Built-in speaker(s)	N
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Y
Bluetooth version	5.2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
HDMI version	2.0b
Mini DisplayPorts quantity	1
Number of SATA III connectors	2
M.2 card slot (wireless)	Intel® Wi-Fi 6E AX211
USB version	2.0/3.2 Gen 2 (3.1 Gen 2)
USB ports quantity	11
M.2 card slot (storage)	2 via PCH + 1 via CPU (NVMe)
Thunderbolt 4 ports quantity	2
PCI Express slots version	5, 4.0
PCI Express x16 slots	1
Chassis type	8L sized PC
Product colour	Black
Cooling type	Active
Product type	PC barebone
LED indicators	Y
Housing material	Metal, Plastic
Cable lock slot	Y
Cable lock slot type	Kensington
ARK ID	216964
Motherboard chipset	Intel Z690
Number of processors supported	1
BIOS type	EEPROM
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11 x64, Windows 10 x64
Compatible operating systems	Windows 10, 64-bit*
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Intel® vPro™ Platform Eligibility	N
Embedded options available	N
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel Rapid Storage Technology	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel 64	Y
Idle States	Y
Enhanced Intel SpeedStep Technology	Y
Intel Trusted Execution Technology	Y
Execute Disable Bit	Y
Intel Stable Image Platform Program (SIPP)	Y
Intel® Optane™ Memory Ready	Y
Intel® Platform Trust Technology (Intel® PTT)	Y
Intel Virtualization Technology (VT-x)	Y
Sustainability certificates	ENERGY STAR, ErP, REACH, RoHS
Harmonized System (HS) code	84713000
Power supply type	Internal power supply unit
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Width	357 mm
Depth	189 mm
Height	120 mm
Power cord included	Y
Additional headers	2x USB2.0, FRONT_PANEL
Number of SATA connectors	2
Status	Launched
Launch date	Q1'22
