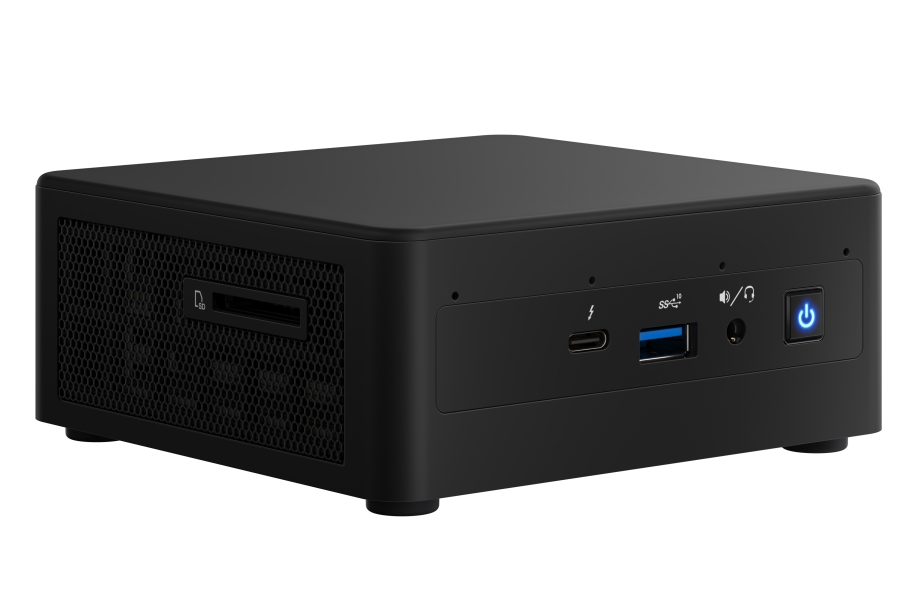

Intel NUC 11 NUC11PAHi7 Performance Kit

Manufacturer: Intel

Reference RNUC11PAHI70Z02

Condition: New

More info

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.Max Turbo Frequency Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.Intel vPro® Platform Eligibility The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.Intel® Rapid Storage Technology Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.Intel® HD Audio Technology Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.Integrated Graphics Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.TPM Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1165G7
Processor cores	4
Processor threads	8
Processor lithography	10 nm
Processor boost frequency	4.7 GHz
Processor cache	12 MB
Thermal Design Power (TDP)	40 W
Memory bandwidth supported by processor (max)	51.2 GB/s
CPU configuration (max)	1
Memory slots type	SO-DIMM
Number of memory slots	2
Number of DIMM slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	51.2 GB/s
Removable memory card slot	SDXC with UHS-II support
ECC	N
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5
SSD form factor	M.2
Number of storage drives supported	2
On-board graphics card	N
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	Not available
Number of displays supported	4
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
LAN controller	Intel I225-V
Bluetooth	Y
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI version	2.0b
DisplayPorts quantity	1
Mini DisplayPorts quantity	1
DisplayPort version	1.4
Number of SATA III connectors	2
USB ports quantity	7
Thunderbolt 3 ports quantity	2
M.2 card slot (storage)	2280
DC-in jack	Y
PCI Express slots version	4.0
Chassis type	UCFF
Product colour	Black
Product type	Mini PC barebone
LED indicators	Y
ARK ID	228582
Motherboard form factor	UCFF
Number of processors supported	1
Trusted Platform Module (TPM)	N
Audio output channels	7.1 channels
Consumer infrared Rx sensor	Y
Windows operating systems supported	Windows 11 x64, Windows 10 x64
Compatible operating systems	Windows 10, 64-bit*
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Intel® vPro™ Platform Eligibility	N
Intel® High Definition Audio (Intel® HD Audio)	Y
Embedded options available	N
Intel Rapid Storage Technology	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Idle States	Y
Intel Trusted Execution Technology	N
Intel Stable Image Platform Program (SIPP)	N
Intel® Platform Trust Technology (Intel® PTT)	Y
Intel Virtualization Technology (VT-x)	Y
Harmonized System (HS) code	84713000
Power supply type	External AC adapter
AC adapter output voltage	19 V
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Width	117 mm
Depth	112 mm
Height	51 mm
Additional headers	CEC, USB3.1, USB2.0, FRONT_PANEL, RGB
Number of SATA connectors	2
HDD size	2.5"
DC input voltage	19 V
Status	Launched
Launch date	Q2'22
