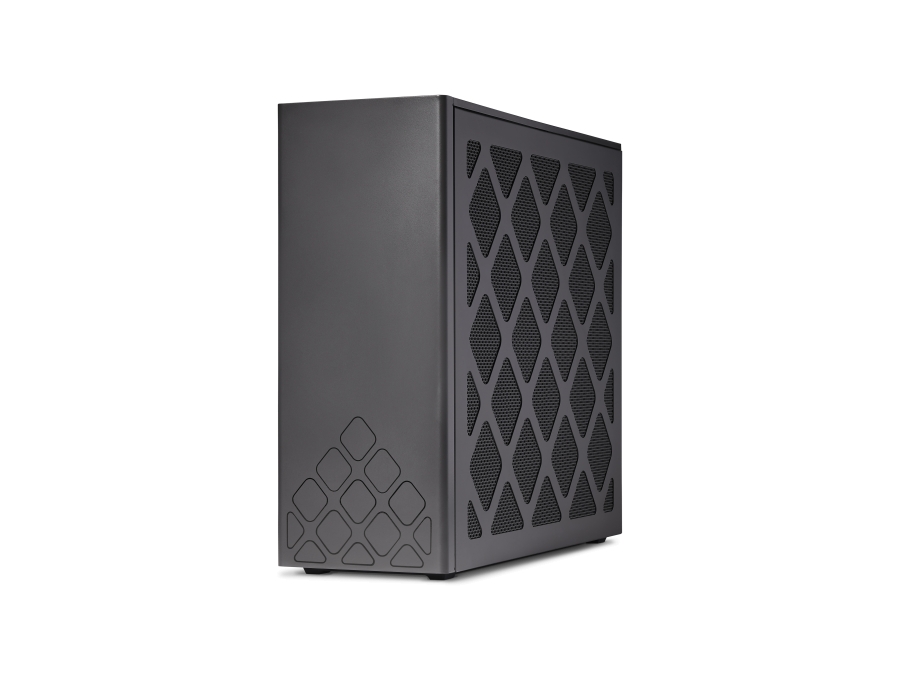

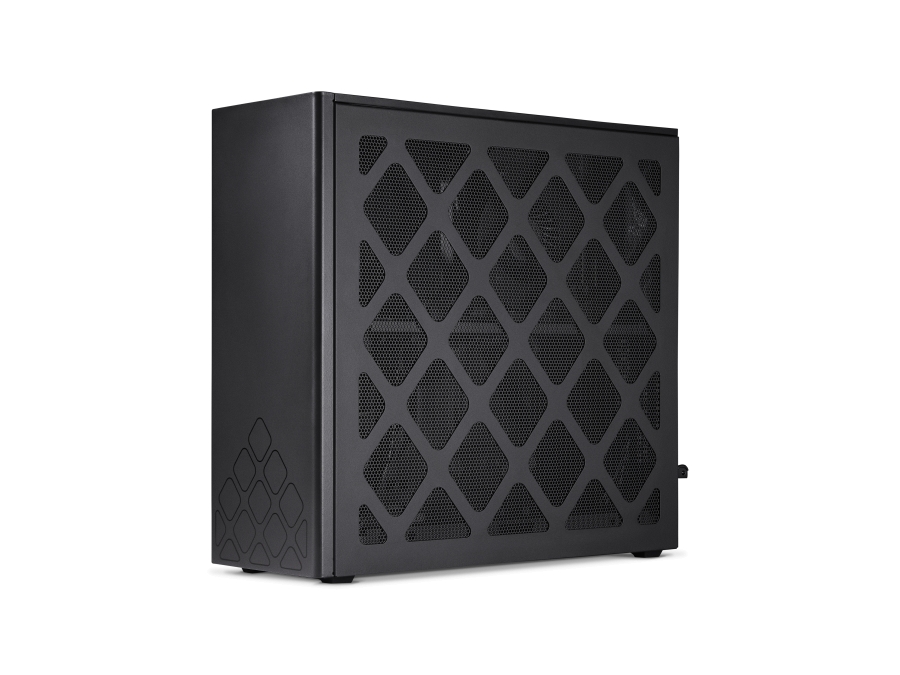

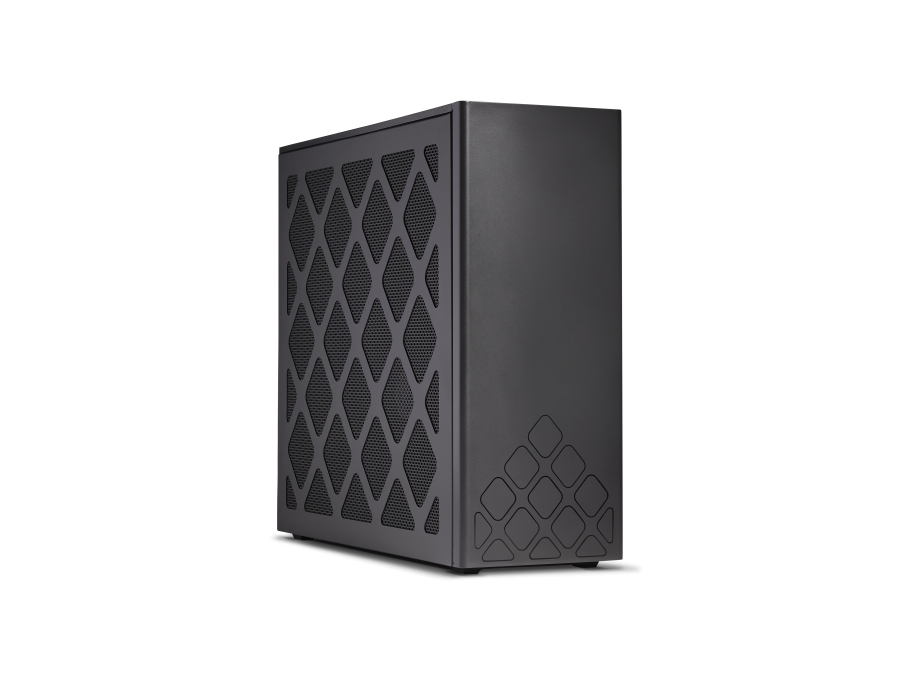

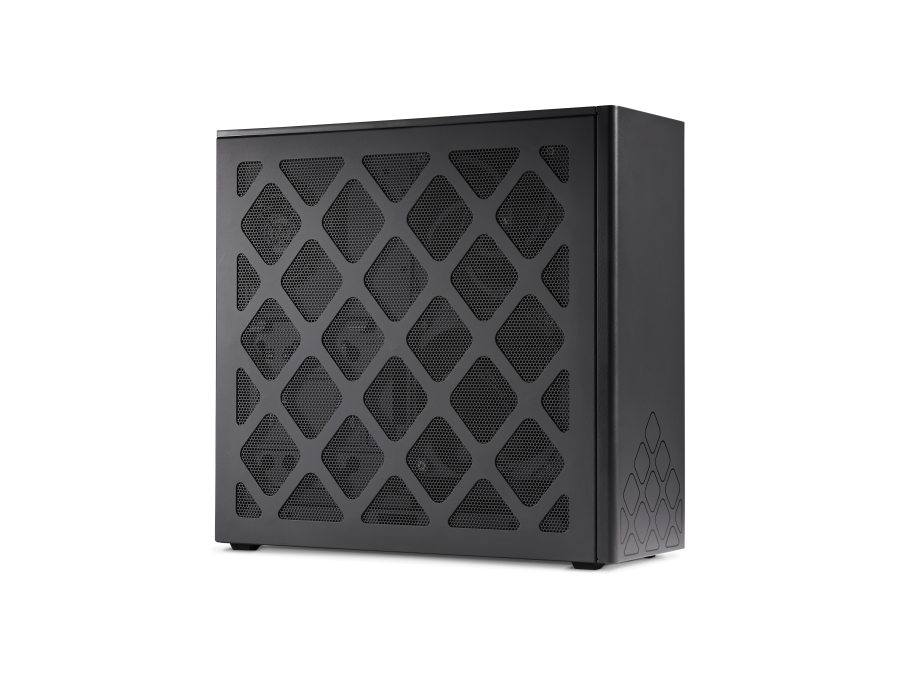

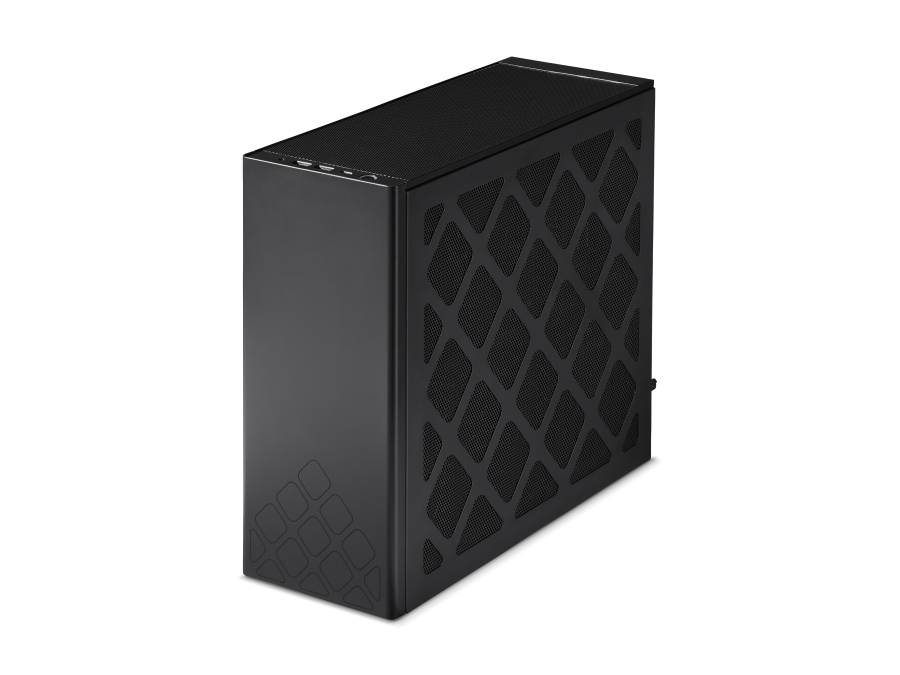

Intel NUC 13 NUC13RNGi9 Extreme Kit

Manufacturer: Intel

Reference RNUC13RNGI90002

Condition: New

More info

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.Max Turbo Frequency Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.Intel® Rapid Storage Technology Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.Integrated Graphics Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.Intel® Optane™ Memory Supported Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.RAID Configuration RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13900K
Processor cores	24
Processor threads	32
Processor boost frequency	5.8 GHz
Processor cache	36 MB
L2 cache	32 MB
Thermal Design Power (TDP)	125 W
CPU configuration (max)	1
Memory slots type	SO-DIMM
Number of memory slots	2
Number of DIMM slots	2
Maximum internal memory	64 GB
Supported memory types	DDR-SDRAM
Memory channels	Dual-channel
ECC	N
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5
SSD form factor	M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	5
RAID levels	0, 1
On-board graphics card	N
Graphics card family	Intel
On-board graphics card model	Intel UHD Graphics 770
Maximum resolution	7680 x 4320 pixels
Number of displays supported	3
Built-in speaker(s)	N
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Killer Wi-Fi 6E AX1690
Bluetooth	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Microphone in	Y
Headphone outputs	1
Combo headphone/mic port	Y
Number of SATA III connectors	4
M.2 card slot (wireless)	Killer™ Wi-Fi 6E AX1690i
USB ports quantity	11
M.2 card slot (storage)	2 via PCH + 1 via CPU (NVMe)
Thunderbolt 4 ports quantity	2
PCI Express slots version	5, 4.0
Chassis type	Desktop
Product colour	Black
Cooling type	Active
Product type	PC barebone
On/off switch	Y
LED indicators	Y
Cable lock slot	Y
Cable lock slot type	Kensington
ARK ID	229782
Certification	IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 FCC Part 15B/15C/15E CISPR/EN 55032/55024 ICES-003 VCCI 32 BSMI CNS 13438 KN 32/35 AS/NZS CISPR 32 EN 300 328 EN 301 893 EN 300 440 EN 301 489-1/3/17 EN 62311 AS/NZS 4268 AS/NZS 2772.2 ARPANSA
Motherboard chipset	Intel Z690
Number of processors supported	1
BIOS type	EEPROM
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Y
Compatible operating systems	Windows 11 (64-bit)
Operating system installed	N
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Embedded options available	N
Intel Rapid Storage Technology	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel 64	Y
Idle States	Y
Enhanced Intel SpeedStep Technology	Y
Intel Flex Memory Access	Y
Intel Trusted Execution Technology	Y
Execute Disable Bit	Y
Intel Stable Image Platform Program (SIPP)	Y
Intel® Optane™ Memory Ready	Y
Intel® Platform Trust Technology (Intel® PTT)	Y
Intel Virtualization Technology (VT-x)	Y
Sustainability certificates	ENERGY STAR, RoHS
Introduction year	2022
Warranty period	3 year(s)
Harmonized System (HS) code	8471500150
Power supply type	Internal power supply unit
Power supply	750 W
Number of power supply units	1
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 40 °C
Width	337 mm
Depth	318 mm
Height	129 mm
Power cord included	Y
Additional headers	FRONT_PANEL
Number of SATA connectors	4
HDD size	2.5"
Status	Launched
Product family	Intel NUC
Product series	Intel NUC kit
Product codename	Raptor Canyon
Launch date	Q4'22
