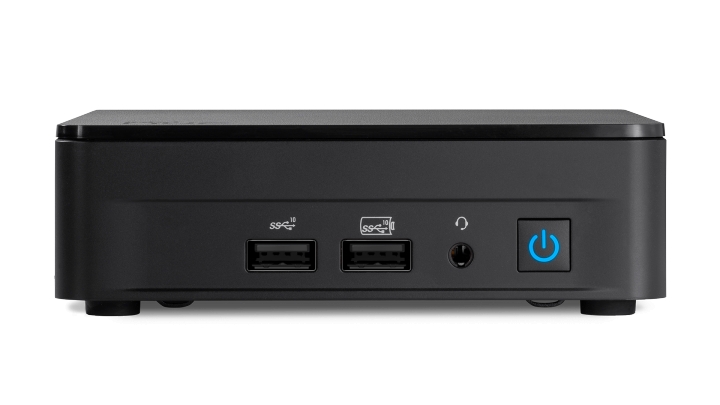

Intel NUC 13 NUC13ANKI3 Professional Kit

Manufacturer: Intel

Reference RNUC13ANKI30002

Condition: New

More info

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.Intel® ME Firmware Version Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.Max Turbo Frequency Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.Intel® HD Audio Technology Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.Integrated Graphics Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.Intel® Optane™ Memory Supported Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel Core i3-13xxx
Processor model	i3-1315U
Processor cores	6
Processor threads	8
Performance cores	2
Efficient cores	4
Performance-core boost frequency	4.5 GHz
Efficient-core boost frequency	3.3 GHz
Processor boost frequency	4.5 GHz
Processor cache	10 MB
Processor codename	Raptor Lake
CPU configuration (max)	1
Memory slots type	SO-DIMM
Number of memory slots	2
Number of DIMM slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
ECC	N
Non-ECC	Y
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	PCI Express, Serial ATA
NVMe	Y
Number of storage drives supported	2
On-board graphics card	N
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Maximum resolution	7680 x 4320 pixels
Number of displays supported	4
Built-in speaker(s)	N
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
LAN controller	Intel I226-V
Bluetooth	Y
Bluetooth version	5.3
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
DisplayPorts quantity	1
Combo headphone/mic port	Y
Serial port via internal header	N
Number of SATA III connectors	1
M.2 card slot (wireless)	2230 (E-key) (E)
USB ports quantity	4
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity	2
DC-in jack	Y
PCI Express slots version	4.0
Number of M.2 (M) slots	1
Chassis type	UCFF
Product colour	Black
Cooling type	Active
Product type	Mini PC barebone
On/off switch	Y
LED indicators	Y
ARK ID	233095
Motherboard form factor	UCFF
Windows operating systems supported	Windows 10 IoT Enterprise, Windows 11 x64
Linux operating systems supported	RedHat EL Linux, Y
Compatible operating systems	Windows 10 IoT Enterprise\|Ubuntu\|Linux*
Operating system installed	N
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Intel® High Definition Audio (Intel® HD Audio)	Y
Embedded options available	N
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Flex Memory Access	Y
Intel Trusted Execution Technology	Y
Execute Disable Bit	Y
Intel ME Firmware Version	16.1
Intel® Optane™ Memory Ready	N
Intel® Platform Trust Technology (Intel® PTT)	Y
Intel Virtualization Technology (VT-x)	Y
Harmonized System (HS) code	8471500150
Power supply type	External AC adapter
Width	117 mm
Depth	112 mm
Height	37 mm
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
DC input voltage	12 - 20 V
Status	Launched
Product family	Intel NUC
Product codename	Arena Canyon
Launch date	Q1'23
