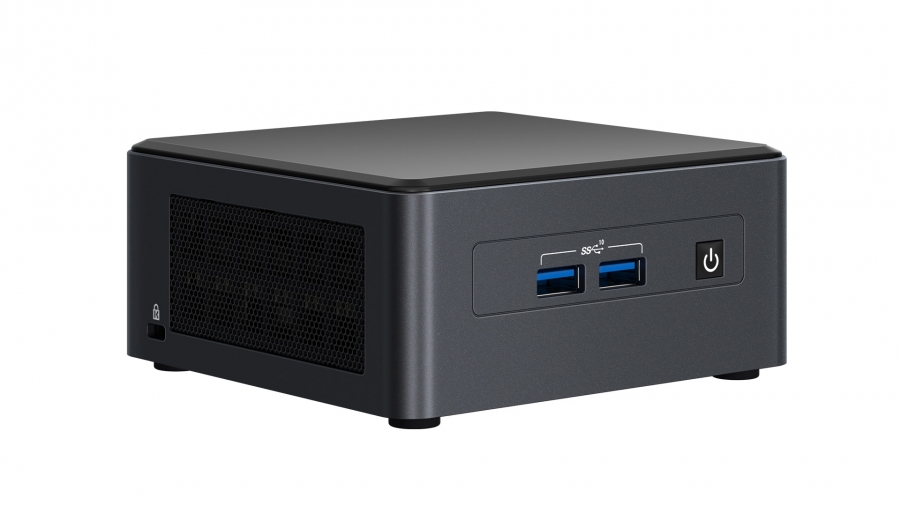

Intel NUC 11 NUC11TNHv7 Professional Kit

Manufacturer: Intel

Reference BNUC11TNHV70002

Condition: New

More info

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel vPro® Platform Eligibility The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.Intel® ME Firmware Version Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.TPM Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.TPM Version TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1185G7
Processor cores	4
Processor threads	8
Processor lithography	10 nm
Processor boost frequency	4.8 GHz
Processor cache	12 MB
Thermal Design Power (TDP)	28 W
CPU configuration (max)	1
Memory slots type	SO-DIMM
Number of memory slots	2
Number of DIMM slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
ECC	N
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5
SSD form factor	M.2
Storage drive interface	M.2, Serial ATA III
Number of storage drives supported	3
On-board graphics card	N
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Number of displays supported	4
Built-in speaker(s)	N
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
LAN controller	Intel I225-LM
Bluetooth	Y
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Internal USB 2.0 ports quantity	2
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
DisplayPorts quantity	1
Thunderbolt ports quantity	2
Serial port via internal header	Y
Number of SATA III connectors	1
M.2 card slot (wireless)	2230 (E-key) (E)
USB ports quantity	4
Thunderbolt 3 ports quantity	1
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
PCI Express slots version	4.0
Chassis type	UCFF
Product colour	Black
Product type	Mini PC barebone
On/off switch	Y
ARK ID	205609
Motherboard form factor	UCFF
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Windows operating systems supported	Windows 10 x64, Windows 10 IoT Enterprise
Linux operating systems supported	RedHat EL Linux, Ubuntu 20.04 LTS
Compatible operating systems	Windows 10 IoT Enterprise\|Linux
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Intel® vPro™ Platform Eligibility	Y
Embedded options available	N
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Idle States	Y
Intel Trusted Execution Technology	Y
Intel ME Firmware Version	15
Intel Stable Image Platform Program (SIPP)	Y
Intel® Optane™ Memory Ready	N
Intel Virtualization Technology (VT-x)	Y
Harmonized System (HS) code	84713000
Power supply type	External AC adapter
Power supply	28 W
Number of power supply units	1
AC adapter output voltage	12 - 24 V
Width	117 mm
Depth	112 mm
Height	54 mm
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Number of SATA connectors	1
HDD size	2.5"
DC input voltage	12 - 20 V
Status	Launched
Launch date	Q1'21
