Mainboard Banana Pi BPI-M2+

Mainboard Banana Pi BPI-M2+

BPI

33189

New

Add to Compare

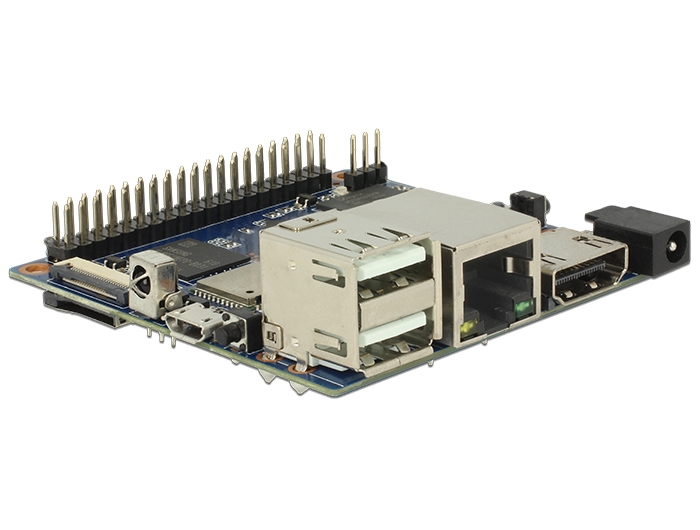

The Banana Pi M2 + is equipped with an ARM7 1GHz Quad-Core CPU and a Mali400MP2 600MHZ GPU. Also it is equipped with Gigabit Ethernet, plus 1GB DDR3 memory, as well as 8GB flash memory. There is an easy connection over the intergrated WLAN and Bluetooth module. Banana Pi has the same GPIOs and the identical circuit layout as the RPi, but additionally has a control button and a TTL interface.

Interface overview:

Specification:
Processor: H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU: Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0
DIMM: 1GB DDR3 (SDRAM shared with GPU)
Onboard memory: 8 GB EMMC Flash, 0 GB (max. 64 GB) TF-Card
Expansion slot: 1 x MicroSD card socket (Max. 64GB),
LAN: 10/100/1000 Mbit Ethernet RJ45
WLAN: WiFi b/g/n Ampak AP6212
Bluetooth: 4.0 - SDIO AP6212
Video-input:
CSI camera input:
Supports 8-bit YUV422 CMOS Sensor Interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM Pixel camera sensor
Supports Video Capture up to 1080p @ 30 fps
Video-output:
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function,
Intergrated CVBS
Supports Simultaneously output from HDMI and CVBS
Audio-output: HDMI
USB:
2x USB 2.0 HOST
1x USB 2.0 OTG
GPIO: 40-Pin Header, compaible with Raspberry Pi (Only slight adjustments necessary)
UART: UART GPIO (1x3 Pin)
LED: Power LED & Status LED
IR: IR input on Board
Taster: Power Button, Recovery Button, Uboot Button
Input voltage: 5 V over the DC-input
Power supply: 1x Hollow connector 4.0/​1.7mm (Internal contact positive)
For OS: Android, Raspbian, Ubuntu, OpenSUSE, Debian, Bananian
Dimensions (length x width): 65mm x 65mm
Weight: 48g
Package content:
• Mainboard
