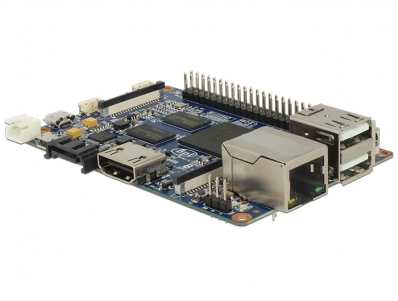

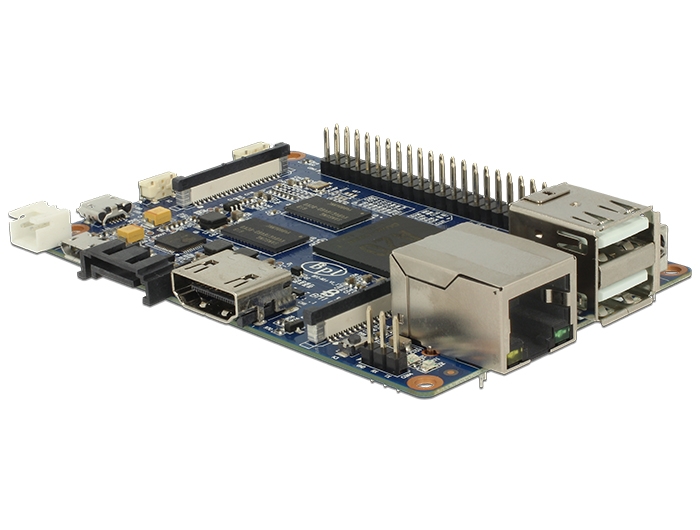

Mainboard Banana Pi BPI-M1+

Mainboard Banana Pi BPI-M1+

BPI

33188

New

Add to Compare
Special features:
Onboard Mikrofon, CIR-Header, Power-Button, Reset-Button, Diagnostic LED, USB OTG and SATA connenctor.
Compatible with Raspberry PI

The overview for the 40 pin assignment you find here
More Infos about the board under http://www.banana-pi.org

Interface overview:
Specification:
• Operating voltage: 5 V- (Micro-USB)
• Power consumption: max. 2 A
• Processor: A20 ARM Cortex-A7 Dual-Core, 1 GHz
• GPU: ARM Mali400MP2, compatible with OpenGL ES 2.0/1.1
• Memory: 1 GB DDR3 SDRAM
• SD-Card slott: maximum 64 GB
• SATA: maximum 2 TB
• Network: 10/100/1000 (REALTEK RTL8211E)
• WLAN: WiFi 802.11 b/g/n
• Camera: CSI input
• GPIO: (2x13-polig): GPIO, UART, I²C, SPI, CAN, ADC, PWM, +3.3 V, +5 V, GND
• Video-output: HDMI, CVBS, LVDS/RGB
• Audio-output: Klinke 3,5 mm, HDMI
• USB: 2x USB 2.0 (directly from the CPU), USB-OTG
• 3 LEDs: Power (red), Netzwerk (blue), frei definierbar (green)
• Buttons: Reset-, Power- and UBOOT-button
• Integrated microphon and Infrared-reveiver
• Dimensions (lenght x width): 92 x 60 mm
Package content:
• Mainboard
