Description:
Specification:
Dimensions: 46.8 x 112.6 x 119.4 mm
Motherboard size: 105 x 110 mm
Processor: Intel® Core i5-6200U
Memory slot for: 2 x SO-DIMM DDR4 - 2133 MHz - up to 32 GB
LAN: Gigabit LAN (Intel i219LM) - Gigabit LAN (Intel i210AT)
Audio: Realtek: ALC255
Graphics: Intel® HD Graphics 520
HDMI maximum resolution: 4096 x 2160 @ 24 Hz
Mini DP maximum resolution: 3840 x 2160 @ 60 Hz
Expansion slots:
1 x M.2 2280 for PCIe or SATA
1 x PCIe M.2 2230 A-E key - occupied by the Wifi-BT card
Storage:
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x SATA 6 Gbps)

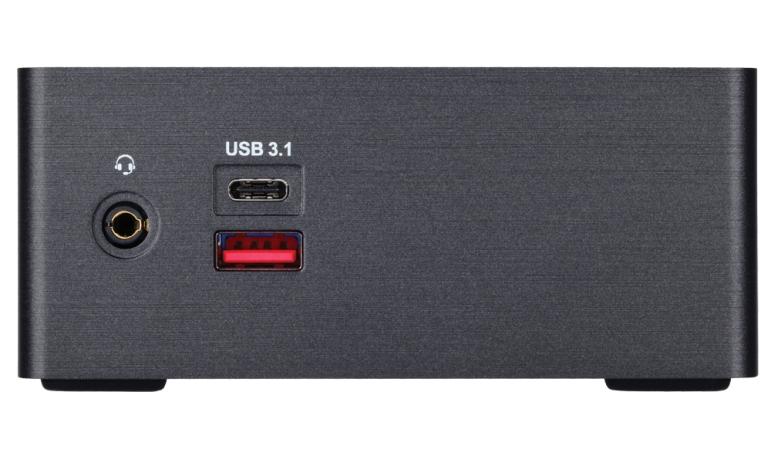

Front I/O:
1 x USB 3.1 type C
1 x USB 3.1
1 x Head phone jack with MIC

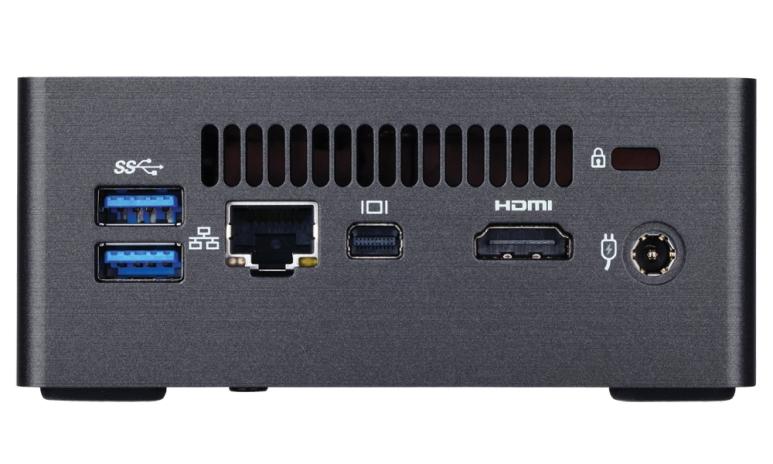

Rear I/O:
1 x HDMI (1.4a)
1 x Mini DP
2 x USB 3.0
1 x RJ45 (Gigabit LAN)
1 x DC-In
1 x Kensington lock slot

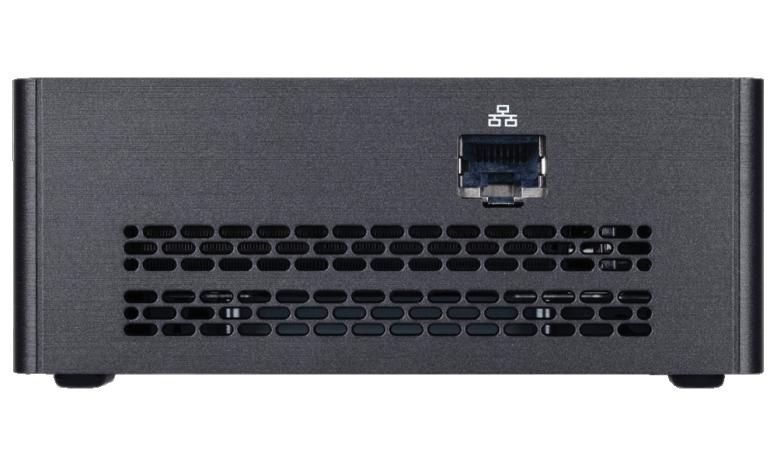

Side I/O:
1 x RJ45 (Gigabit LAN)
Power supply:
Input: AC 100-240V
Output: DC 19V
3.42A
VESA: Bracket included - Supports 75 x 75 and 100 x 100 mm
Wifi Card: Intel® Dual Band Wireless AC 3165
USB: Asmedia
Support OS: Win7 32/64bit, Win8.1 64bit, Win10 64bit
Operation temperature: 0°C - +35°C
Storage temperature: -20°C - +60°C
System requirements:
Package content:
Specification:
Dimensions: 46.8 x 112.6 x 119.4 mm
Motherboard size: 105 x 110 mm
Processor: Intel® Core i5-6200U
Memory slot for: 2 x SO-DIMM DDR4 - 2133 MHz - up to 32 GB
LAN: Gigabit LAN (Intel i219LM) - Gigabit LAN (Intel i210AT)
Audio: Realtek: ALC255
Graphics: Intel® HD Graphics 520
HDMI maximum resolution: 4096 x 2160 @ 24 Hz
Mini DP maximum resolution: 3840 x 2160 @ 60 Hz
Expansion slots:
1 x M.2 2280 for PCIe or SATA
1 x PCIe M.2 2230 A-E key - occupied by the Wifi-BT card
Storage:
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x SATA 6 Gbps)
Front I/O:
1 x USB 3.1 type C
1 x USB 3.1
1 x Head phone jack with MIC
Rear I/O:
1 x HDMI (1.4a)
1 x Mini DP
2 x USB 3.0
1 x RJ45 (Gigabit LAN)
1 x DC-In
1 x Kensington lock slot
Side I/O:
1 x RJ45 (Gigabit LAN)
Power supply:
Input: AC 100-240V
Output: DC 19V
3.42A
VESA: Bracket included - Supports 75 x 75 and 100 x 100 mm
Wifi Card: Intel® Dual Band Wireless AC 3165
USB: Asmedia
Support OS: Win7 32/64bit, Win8.1 64bit, Win10 64bit
Operation temperature: 0°C - +35°C
Storage temperature: -20°C - +60°C
System requirements:
Package content:
