Delock 2.5″ Converter U.2 SFF-8639 > M.2 NVMe Key M

Reference 62710

Condition: New

More info

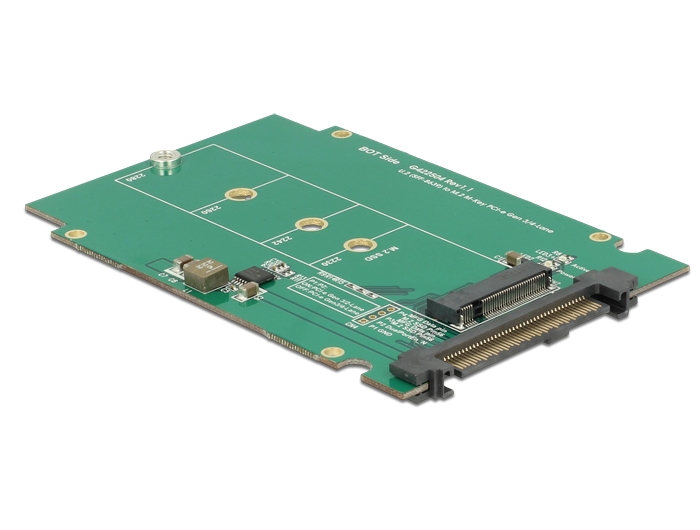

This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through the U.2 68 pin interface.

System requirements:
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16

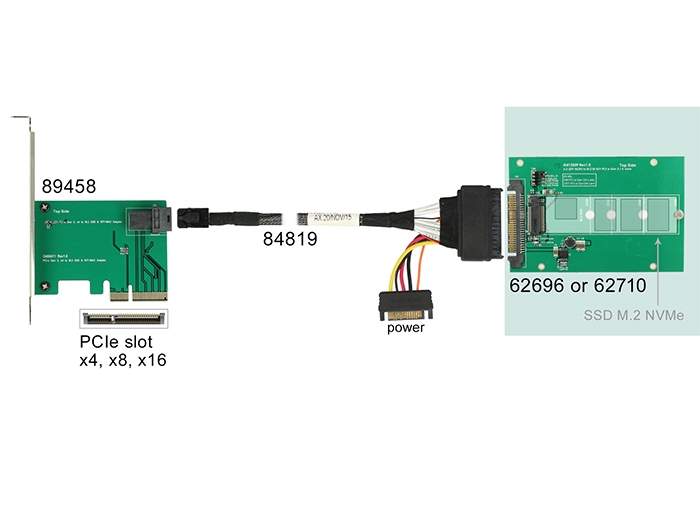

• A free U.2 SFF-8639 interface or
• A free SFF-8643 interface

Specification:
• Connector:
1 x U.2 SFF-8639 male >
1 x 67 pin M.2 key M slot
• Interface: PCIe (2 or 4 lanes)
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based
on PCIe
• Maximum height of the components on the module: 1.5 mm application of double-sided
assembled modules supported
• Jumper for 2 or 4 lanes setting M.2 SSD
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Power consumption: max. 13.2 W
• Short circuit protection, in-rush current suppression, over heating protection

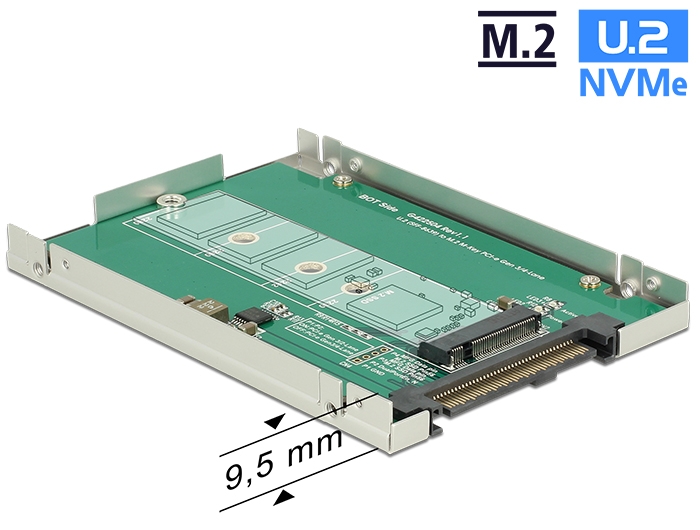

• Dimensions (LxWxH): ca. 100 x 65 x 9.5 mm

Package content:
• Converter

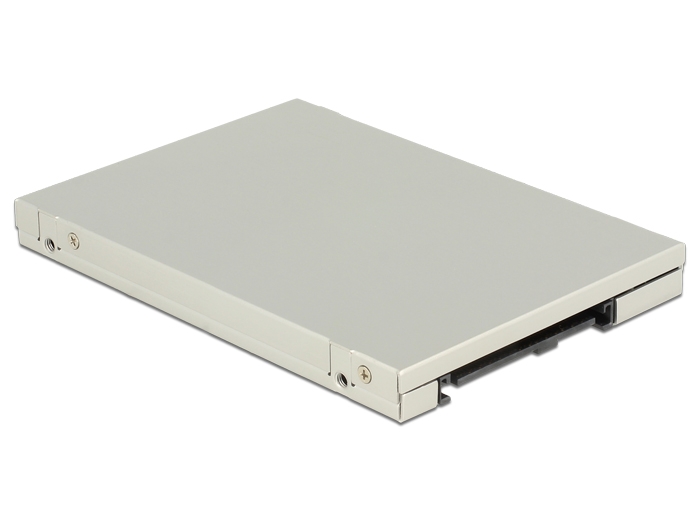

• 2.5″ enclosure

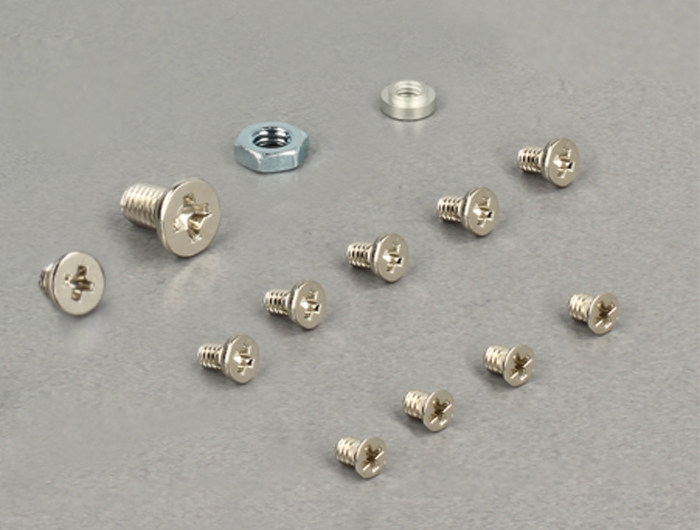

• 1 x fixing screw for M.2 module
• User manual
