> >>Delock Connector DC 5.5 x 2.1 mm female bulkhead soldering version - round 20 V / 10 A
Delock Connector DC 5.5 x 2.1 mm female bulkhead soldering version - round 20 V / 10 A

Delock Connector DC 5.5 x 2.1 mm female bulkhead soldering version - round 20 V / 10 A

DELOCK

90174

New

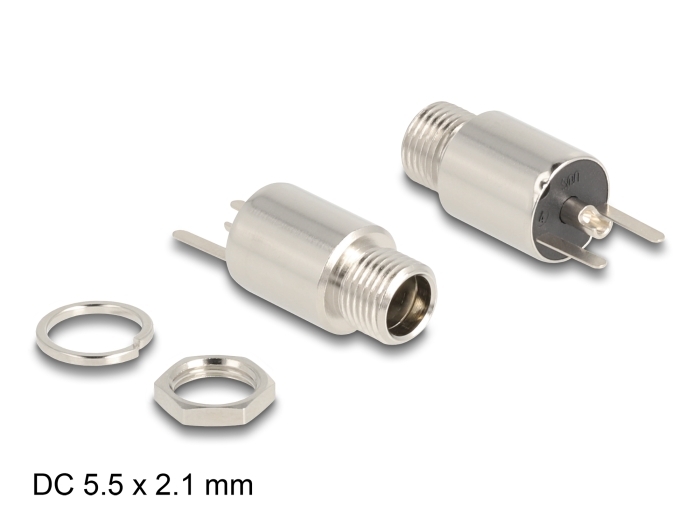

This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
Specification:
• Connectors:
  1 x DC 5.5 x 2.1 x 12.0 mm female
  2 x solder connection
• Suitable for DC pin length: 9.5 mm / 12 mm
• Operating voltage: 20 V DC
• Current: max. 10 A
• Round base
• Thread type: M8*P0.75
• Mounting depth: ca. 19.6 mm
• Visible height when installed: ca. 6.0 mm
• Nickel-plated connector

Specification of power connector
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  depth: ca. 12.0 mm
Package content:
• DC female bulkhead
Data sheet:
http://www.delock.de/produkt/90174/pdf.html?sprache=en
