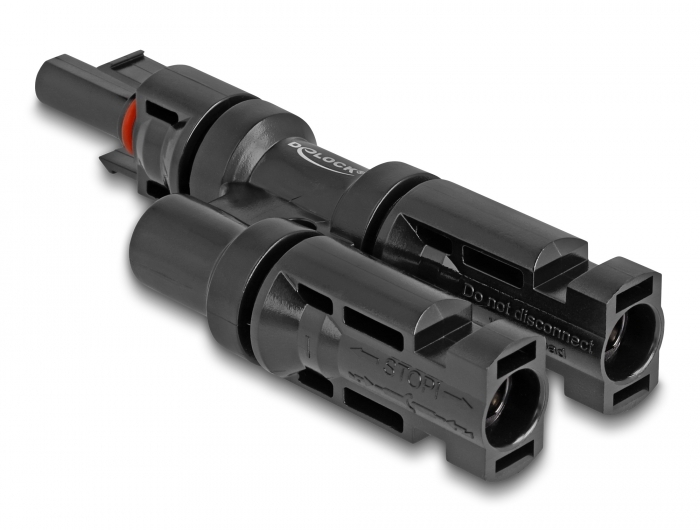

Delock DL4 Solar Connectors 1 x female to 2 x male

Reference 60023

Condition: New

More info

This DL4 solar connectors by Delock can be used to transmit power obtained from a photovoltaic system.

DL4 connectors
The DL4 plugs and sockets have a snap-in function, which avoids unwanted interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.

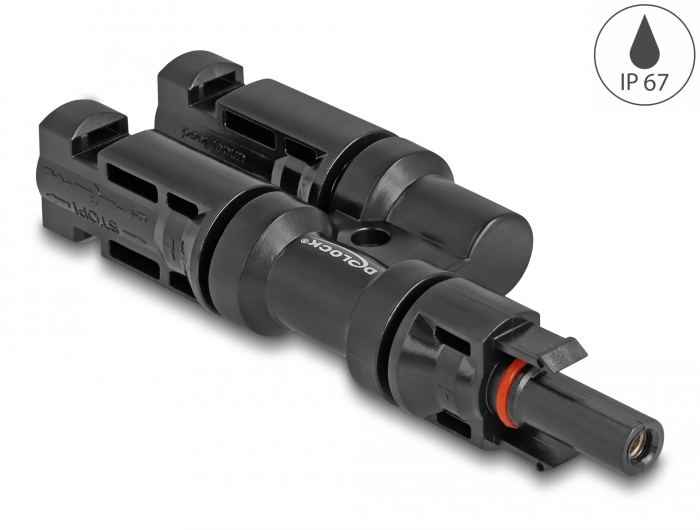

IP67 dust and waterproof
The DL4 solar connector is protected from dirt and moisture.

System requirements:
• Free DL4 ports

Specification:
• Connectors:
1 x DL4 female
2 x DL4 male
• Cable cross section: ca. 2.5, 4, 6 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67
• Voltage: max. 1000 V
• Colour: black
• Dimensions (LxWxH): ca. 10.4 x 3.9 x 1.8 cm

Package content:
• DL4 solar connector

Data sheet:
http://www.delock.de/produkt/60023/pdf.html?sprache=en
