Delock MDR male 20 pin solder connection with housing

Reference 66622

Condition: New

More info

This shielded MDR (Mini D Ribbon) male with soldering connection by Delock can be used for cable mounting and I/O applications.

Protection by enclosure
The plastic housing protects the male connector from dirt and damage.

Strain relief
The screw-on strain relief fixes the cable in the enclosure.

Specification:
• Connectors: 1 x MDR 20 male (2 rows) with soldering connection
• Pitch: 1.27 mm
• Useable for a cable gauge from 30 to 24 AWG
• Contact coating: gold plated, nickel plated
• Operating temperature: -25 °C ~ 85 °C
• Fire-resistance rating: 94V-0
• Housing material: plastic
• Dimensions (LxWxH): ca. 39.0 x 33.4 x 12.7 mm

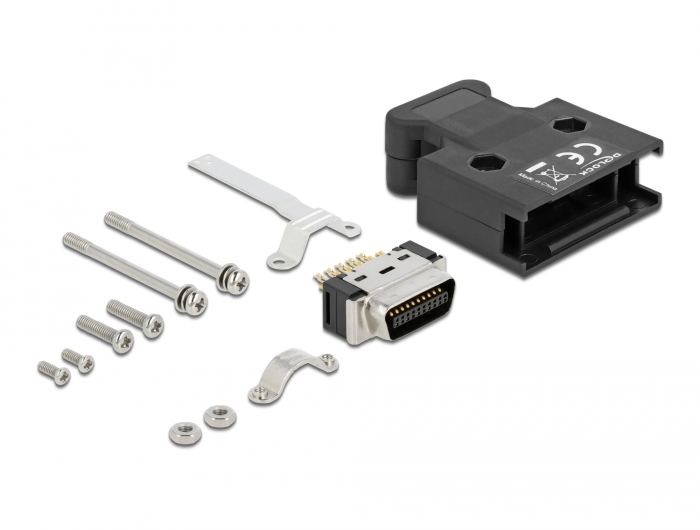

Package content:
• MDR male
• Housing 2-part
• Strain relief 2-part
• 4 x screw
• 2 x locking screws
• 2 x nut

Data sheet:
http://www.delock.de/produkt/66622/pdf.html?sprache=en
