Delock Converter U.2 SFF-8639 to M.2 NVMe Key M with 3.5″ frame

Delock Converter U.2 SFF-8639 to M.2 NVMe Key M with 3.5″ frame

DELOCK

63922

New

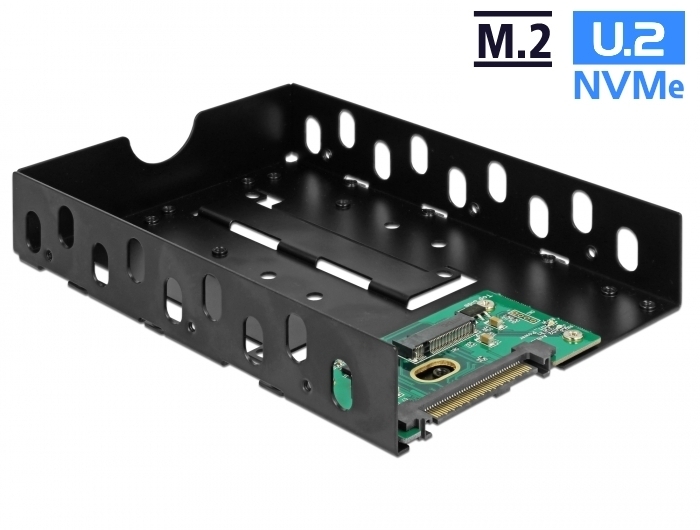

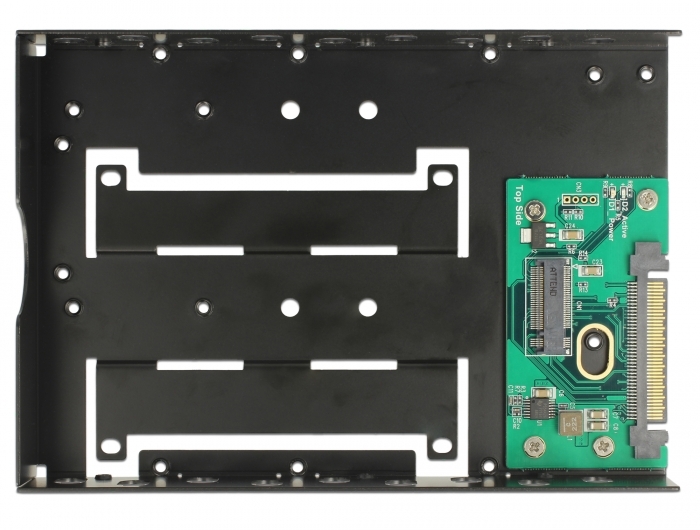

This Delock converter enables the connection of a M.2 SSD in 22110 and 2280 format. The converter can be installed into a 3.5″ slot and can be connected to the system internally through the U.2 68 pin interface. On the existing spacers can be easily mounted the enclosed heat sink for the M.2 SSD.
System requirements:
• Linux Kernel 3.10 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Connection cables
• A free 3.5″ bay
Specification:
• Connectors:
  1 x U.2 SFF-8639 male >
  1 x 67 pin M.2 key M slot
• Interface: PCIe
• Supports M.2 modules in format 22110 and 2280 with key M or
  key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm,
  application of double-sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum power for modules: 4 A
• Short circuit protection, in-rush current suppression, over heating protection
• ESD protection up to 2 kV
• Bootable
• Dimensions (LxWxH): ca. 147 x 101 x 26 mm

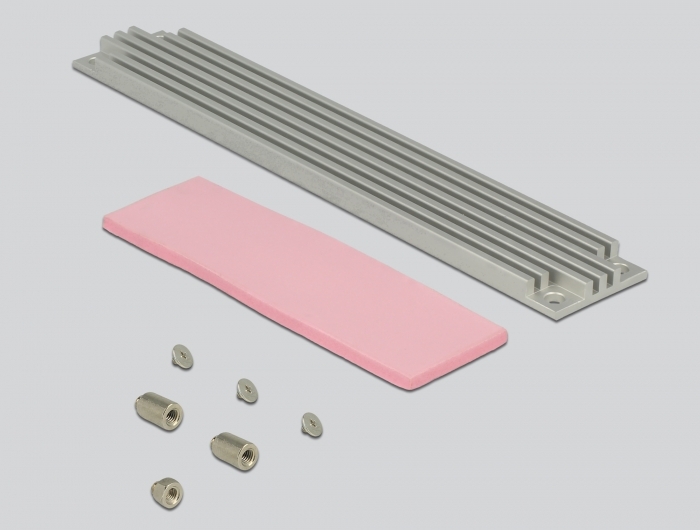

Package content:
• Converter
• 3.5″ enclosure
• Heat sink
• 1 x self-adhesive thermal pad
• 3 x screw
• 1 x nut for M.2 module
• 2 x spacer for heat sink
• User manual
Data sheet:
http://www.delock.de/produkt/63922/pdf.html?sprache=en
