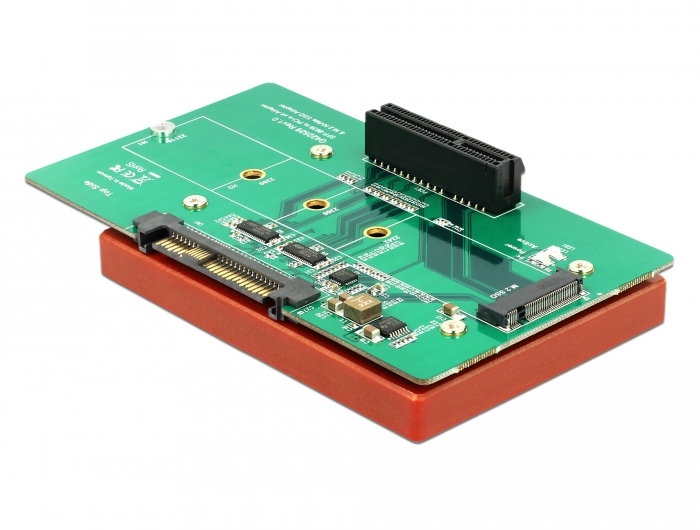

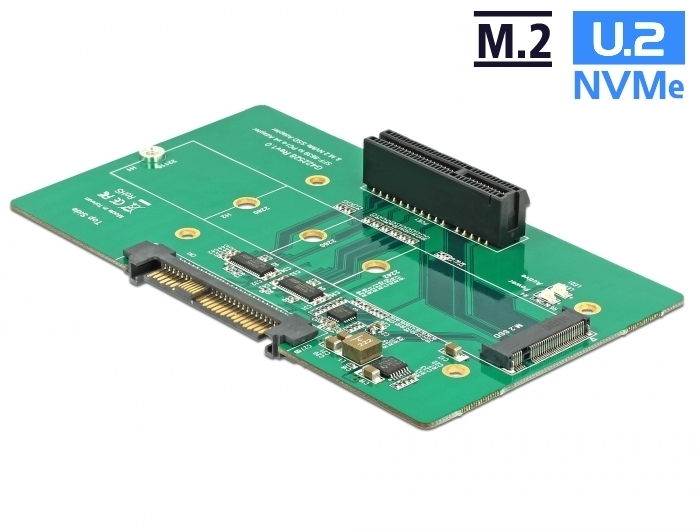

Delock U.2 SFF-8639 Adapter to PCIe x4 or M.2 Key M slot with fixing plate

Reference 63951

Condition: New

More info

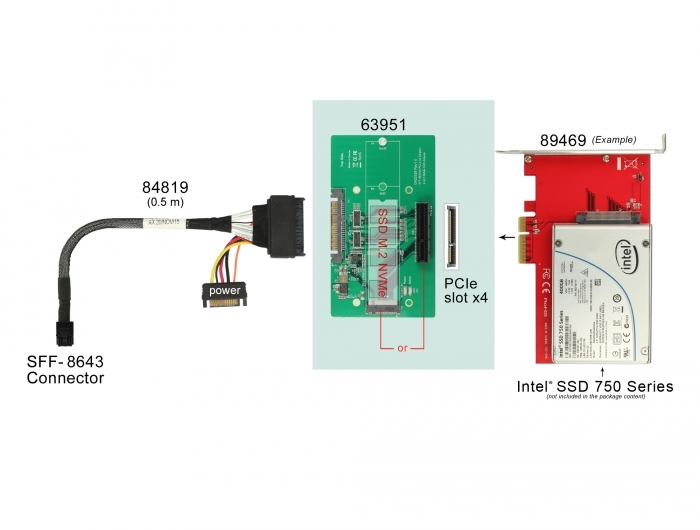

This adapter by Delock can be connected via U.2 interface to the system and provides a PCI Express x4 NVMe or an M.2 key M slot. Suitable cards or M.2 memory can be connected to the slots for the transmission of NVMe signals.

System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface

Specification:
• Connectors:
  1 x U.2 SFF-8639 male >
  1 x PCI Express x4, V3.0
  1 x 67 pin M.2 key M slot
• Interface: PCIe

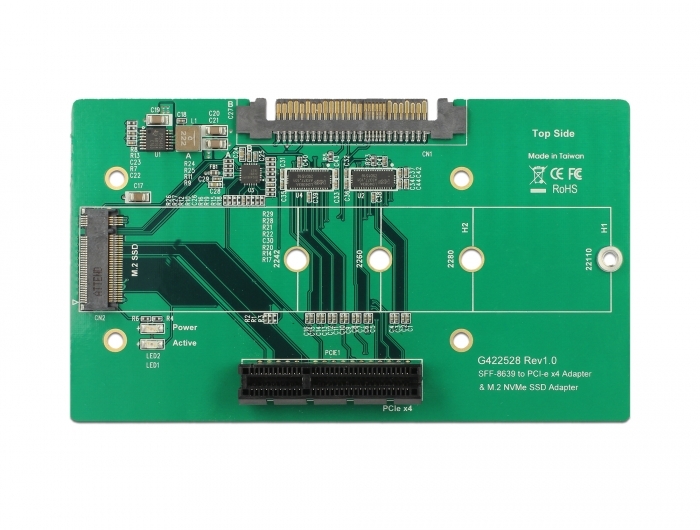

• Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• 2 x LED indicator for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH):
  adapter: ca. 122 x 70 x 14 mm
  fixing plate: ca. 95 x 70 x 10 mm

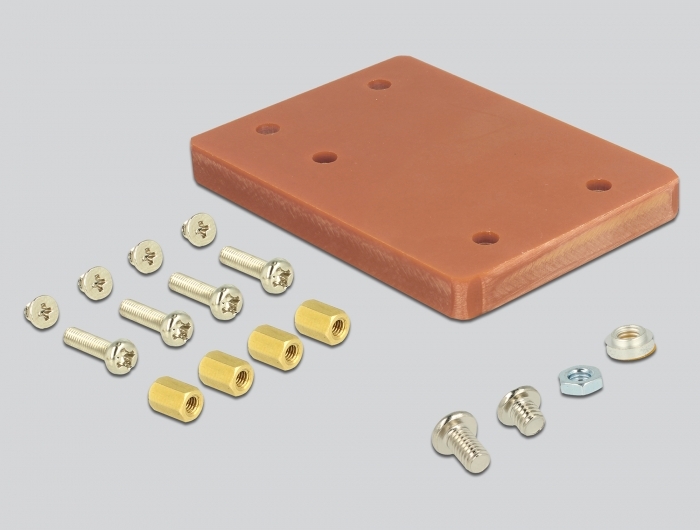

Package content:
• Adapter
• Fixing plate
• Screws and spacer
• User manual
