Delock 2.5″ Converter USB 3.1 Gen 2 USB Type-C™ female > 2 x mSATA with RAID 7 mm

Reference 62852

Condition: New

More info

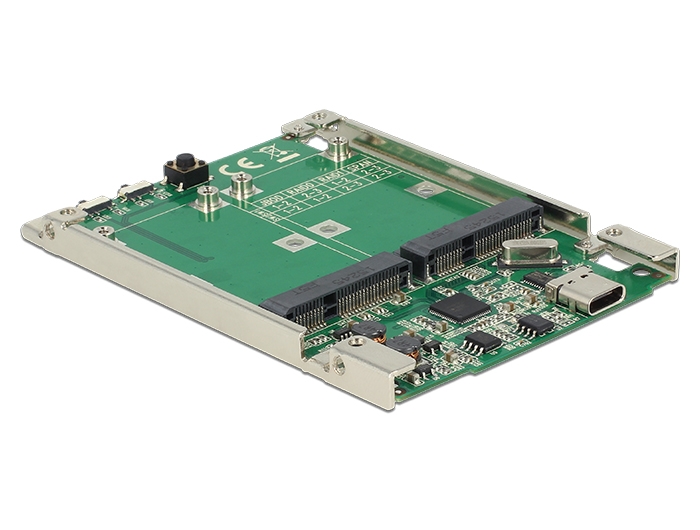

This converter by Delock enables the connection of up to two mSATA SSD and can be built in as 2.5″ disk. Therefor the converter will be installed into the system through the USB interface. When using more than one SSD, there is the possibility to use different RAID level.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.19
• A free USB interface

Specification:
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female >
2 x mSATA slot (half size / full size)
• Chipset: Asmedia ASM1352R
• Form factor: 2.5″
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps,
SATA 6 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• 1 x Reset button
• DIP switch for RAID mode setting
• For 3.3 V mSATA module
• 4 x LED indicator
• Supports RAID 0, 1, JBOD

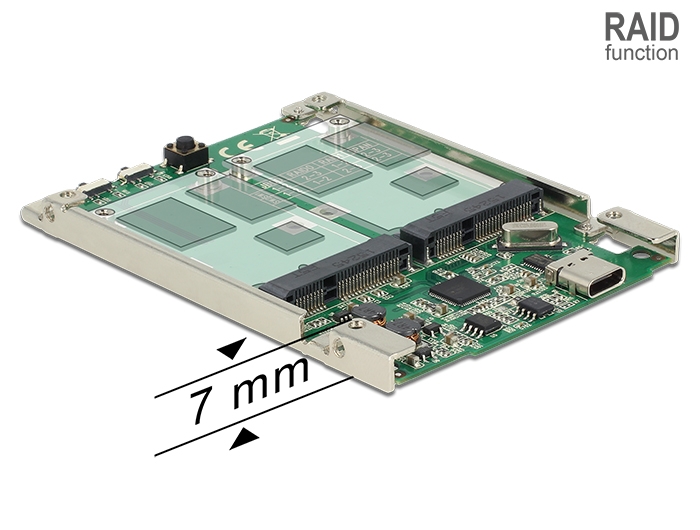

• Dimensions (LxWxH): ca. 100 x 70 x 7 mm

Package content:
• Converter
• Cable USB Typ-A male to USB-C™ male, length ca. 50 cm
• User manual
