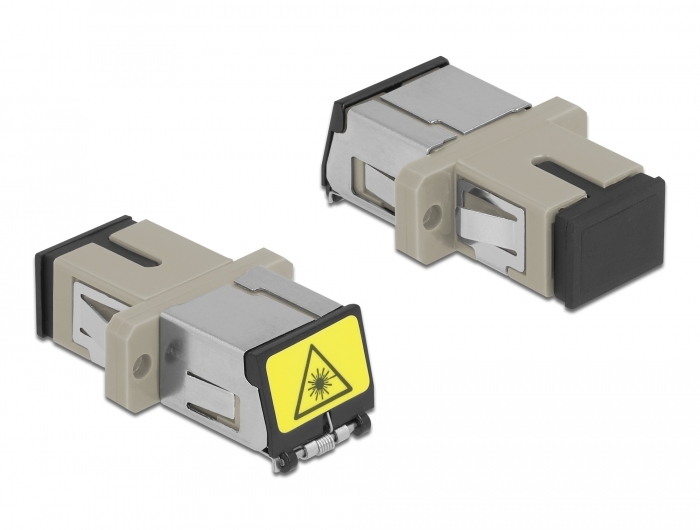

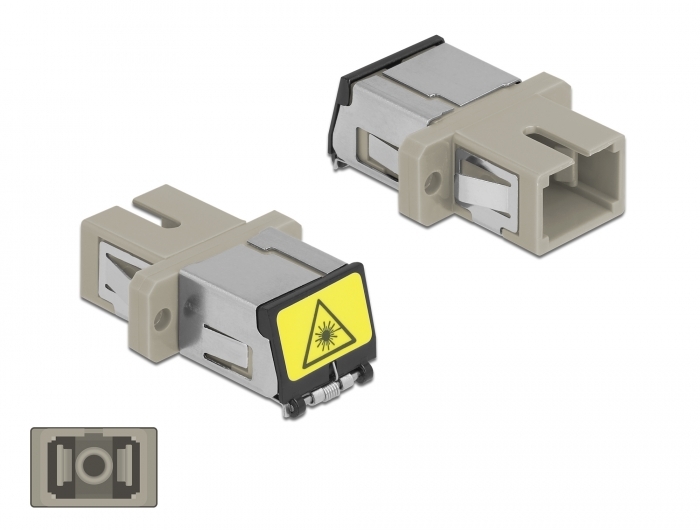

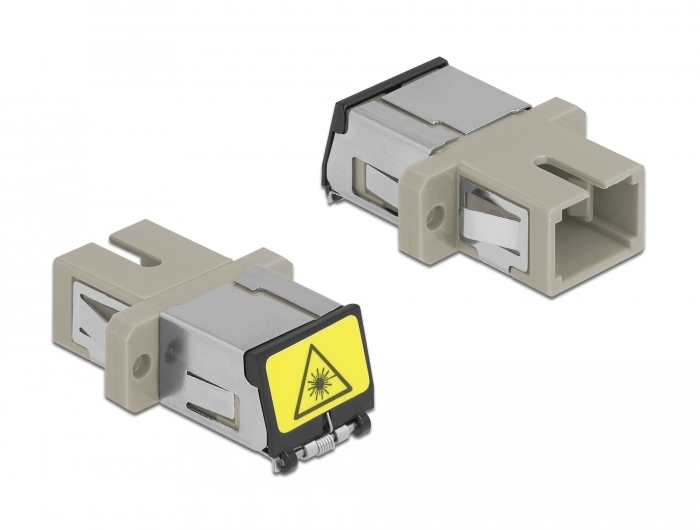

Delock Optical Fiber Coupler with laser protection flip SC Simplex female to SC Simplex female Multi-mode beige

DELOCK

86889

New

With this SC Simplex coupling by Delock, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.

Protection against laser radiation
The integrated flip ensures protection against laser radiation.

Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
System requirements:
• A free SC Simplex male port
Specification:
• Connectors:
  1 x SC Simplex female >
  1 x SC Simplex female
• For multi-mode fiber OM1 / OM2
• Ceramic sleeve
• With a laser protection flip and a dust protection cap
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: 2.4 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 13.4 x 9.5 mm
• Operating temperature: -20 °C ~ 70 °C
• Material: plastic
• Colour: beige
• Dimensions (LxWxH): ca. 27.4 x 12.7 x 9.3 mm
Package content:
• SC Simplex coupler
Data sheet:
http://www.delock.de/produkt/86889/pdf.html?sprache=en
