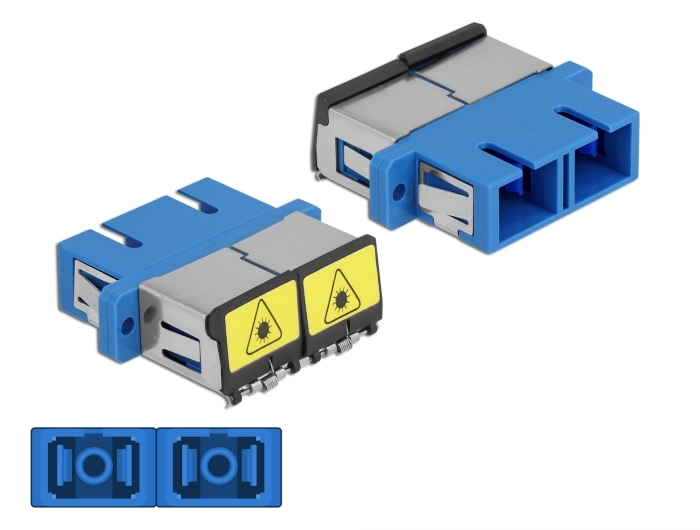

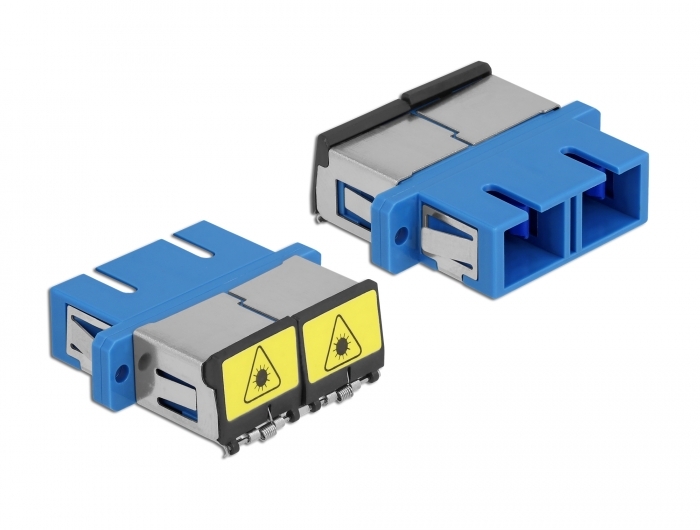

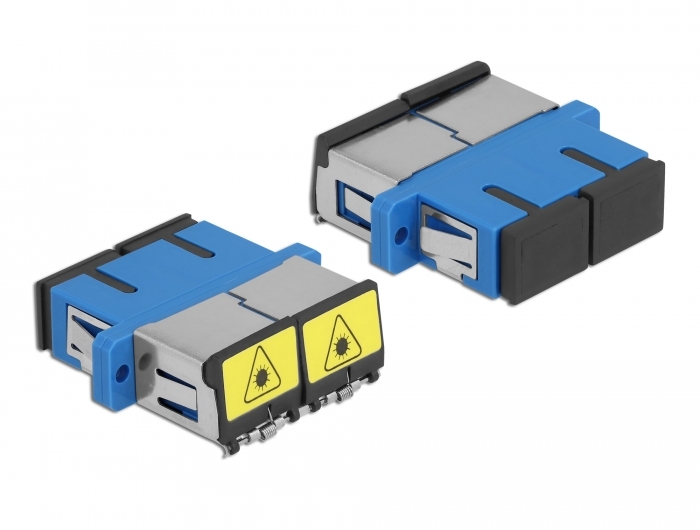

Delock Optical Fiber Coupler with laser protection flip SC Duplex female to SC Duplex female Single-mode blue

Reference 86893

Condition: New

More info

With this SC Duplex coupling by Delock, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.

Protection against laser radiation
The integrated flip ensures protection against laser radiation.

Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.

System requirements:
• A free SC Duplex male port

Specification:
• Connectors:
1 x SC Duplex female >
1 x SC Duplex female
• For single-mode fiber
• Ceramic sleeve
• With a laser protection flip and a dust protection cap
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: 2.4 mm
• Pitch of screw hole: ca. 30.7 mm
• Panel cut-out (WxH): ca. 26.6 x 9.5 mm
• Operating temperature: -20 °C ~ 70 °C
• Material: plastic
• Colour: blue
• Dimensions (LxWxH): ca. 34.7 x 25.6 x 9.3 mm

Package content:
• SC Duplex coupler

Data sheet:
http://www.delock.de/produkt/86893/pdf.html?sprache=en
