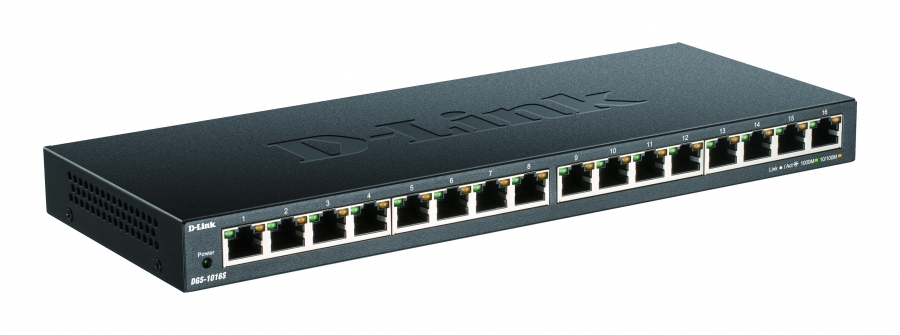

Switch 280mm D-Link DGS-1016S 16*GE retail

D-LINK

DGS-1016S

New

Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Switch typeUnmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.1p, IEEE 802.3az, IEEE 802.3x
10G support
Copper ethernet cabling technology1000BASE-T
Full duplex
Half duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
Cable length detection
MAC address table8000 entries
Switching capacity32 Gbit/s
Store-and-forward
Number of queues8
Jumbo frames support
Jumbo frames9216
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet buffer memory0.512 MB
Product colourBlack
LED indicatorsActivity, Link, Power, Speed
CertificationCE, FCC, ICES 003, RCM
Fanless
Mean time between failures (MTBF)564658 h
DC input voltage12 V
Input current1 A
Power consumption (max)8.89 W
Power over Ethernet (PoE)
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation30.32 BTU/h
Width280 mm
Depth110 mm
Height25 mm
Weight770 g
