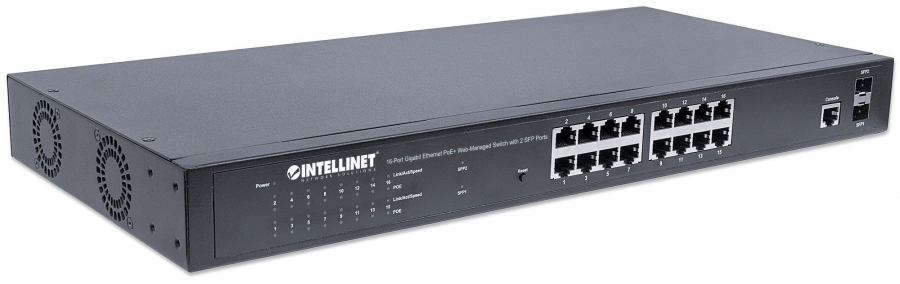

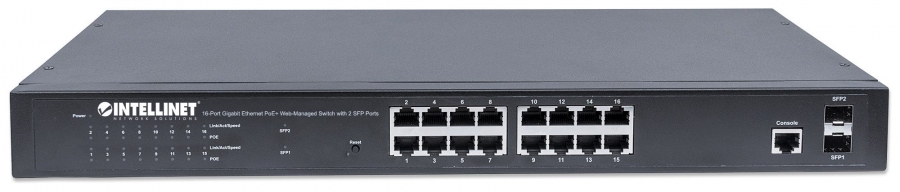

INTELLINET Switch 16x GE Web-Managed 2 SFP-Ports 16x PoE+

Reference 561341

Condition: New

More info

Save installation time and money with PoEThe Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports (561341) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with sixteen Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1,000 Mbps.Power over Ethernet 802.3atThe Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.Sophisticated PoE Management FeaturesThe Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch provides detailed, real-time information about the connected PoE devices, how much power they draw and how much power is still available. The delay-time-per-port feature reduces the power hike that usually happens at system start, and the PoE priority feature (low, medium, high) allows you to define mission-critical ports that will continue to receive power even if the switches power budget limit has been exceeded. Furthermore, you can define the maximum available power per port, turn PoE on and off per port and monitor the current power draw of all connected PoE devices. Finally, the Intellinet Network Solutions switch can send SNMP-traps messages to alert the administrator that the total power draw on the switch exceeds the user-defined threshold value. The Powered Device Monitor (Intellinet Network Solutions PDM) feature keeps an eye on connected PoE devices and restarts them in case they stop responding. What's more, you can also program the Intellinet Network Solutions PoE switch to restart connected PoE devices based upon a schedule, ensuring that the PoE devices remain stable and operational.Eliminate Bottlenecks with Gigabit SpeedsEquipped with 16 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 16-Port PoE Web-Managed Gigabit Switch (561341) offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fibre connectivity for greater distances.Full Layer 2+ Management FeaturesThe switch includes full Layer 2+ Management features. The software set includes up to 4k 802.1Q VLAN and advanced protocol VLAN, and private VLAN. There are eight physical Quality of Service queues, Multicast filtering, Rapid Spanning Tree Protocol to avoid network loop, Multiple Spanning Tree Protocol (MSTP) to integrate VLAN and spanning tree, LACP, port mirroring and advanced network security features.Advanced SecurityThe Intellinet Network Solutions 16-Port PoE+ Web-Managed Gigabit Switch (561341) supports advanced security features. For secure switch management, HTTPS and SSH are provided. In addition, the login password and configuration packets are secured. Port binding allows a specific MAC address to be bound to a port, and then only that MAC has the privilege to access the network. Thanks to 802.1X port based access control, every user needs to be authorised first when they want to access the network. The Layer 2+ access control list (ACL) allows the user to define the access privilege based on IP or port number. * Total PoE budget for this switch is 220 watts. Per-port average power distribution is 13.75 watts; maximum per-port power usage cannot exceed 30 watts.

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
SFP module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	N
Auto-sensing	Y
VLAN support	Y
Virtual LAN features	Tagged VLAN, Port-based VLAN
Number of VLANs	4096
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.512 MB
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSH-2
Authentication	Port-based authentication
Multicast support	Y
Management protocols	SNMP, Telnet, SSH
Rack mounting	Y
Form factor	1U
Product colour	Black
Housing material	Metal
LED indicators	Y
Number of fans	2 fan(s)
Certification	FCC Class A, CE
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power protection features	Over voltage, Overload, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	220 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 90 °C
Operating relative humidity (H-H)	10 - 90%
Width	440 mm
Depth	208 mm
Height	44 mm
Weight	3.86 kg
Cables included	AC
Manual	Y
Rack mount kit	Y
Harmonized System (HS) code	85176990
