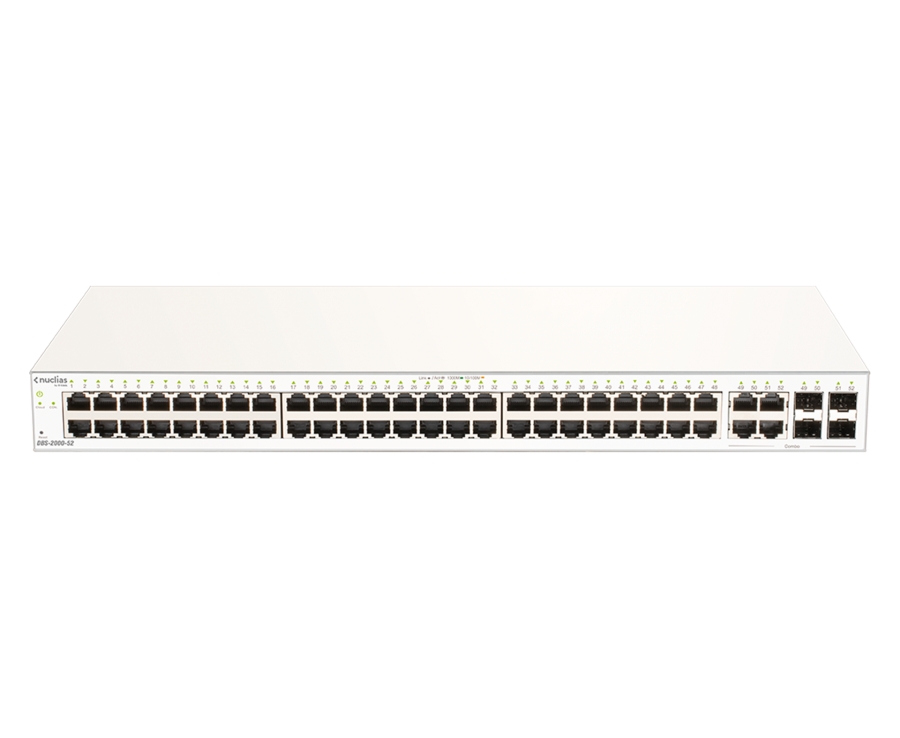

Switch 440mm D-Link DBS-2000-52 4*Combo/52*GE PoE retail

D-LINK

DBS-2000-52

New

Cloud Networking, Refreshed The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.Management Over the Cloud DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.Easy Troubleshooting The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.Advanced Security Features The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Switch typeManaged
Switch layerL2
Web-based managementY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4
Console portRJ-45
Networking standardsIEEE 802.3ad
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregationY
Auto MDI/MDI-XY
Spanning tree protocolY
Switching capacity104 Gbit/s
Forwarding rate77.4 Mpps
Packet buffer memory12 MB
IGMP snoopingY
Security algorithmsWPA, WPA2
Rack mountingY
Product colourGrey
LED indicatorsY
Built-in processorY
Processor frequency700 MHz
Memory typeDDR3-SDRAM
Internal memory256 MB
Flash memory32 MB
Mean time between failures (MTBF)400667 h
Shipping (inner) case height38.3 cm
Shipping (inner) case width31.4 cm
Shipping (inner) case length56.2 cm
Shipping (inner) case net weight13.8 kg
Products per shipping (inner) case3 pc(s)
Pallet gross weight (air)284.8 kg
Master (outer) cases per pallet (air)18 pc(s)
Products per pallet (air)54 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)128.4 cm
Pallet gross weight (sea)462.2 kg
Master (outer) cases per pallet (sea)30 pc(s)
Products per pallet (sea)90 pc(s)
Pallet height (sea)2.05 m
Shipping (inner) case gross weight14.7 kg
AC input voltage100 - 240 V
Power consumption (max)34.85 W
Power over Ethernet (PoE)N
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation118.92 BTU/h
Width440 mm
Depth210 mm
Height44.5 mm
Weight3.46 kg
Package width354 mm
Package depth552 mm
Package height98 mm
Package weight4.6 kg
Harmonized System (HS) code85176990
