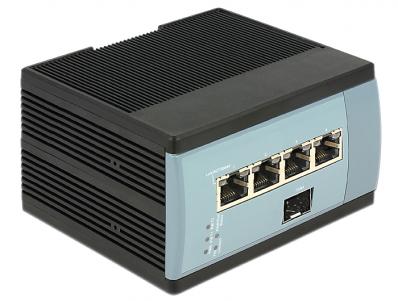

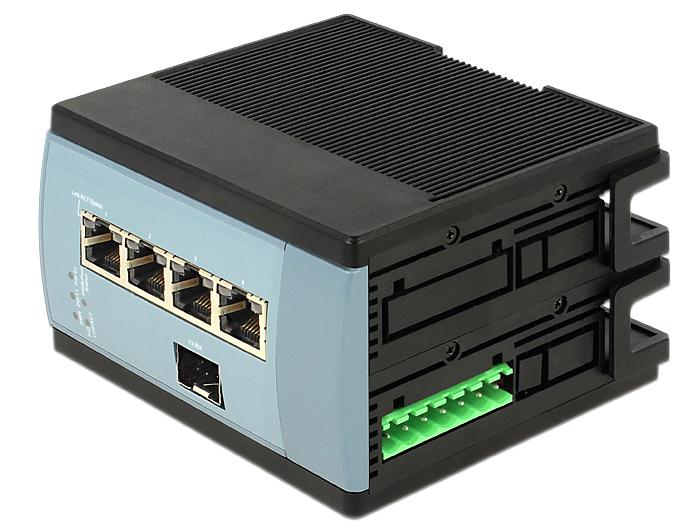

Delock Gigabit Ethernet Switch 4 Port + 1 SFP DIN-rail mounting

Description:

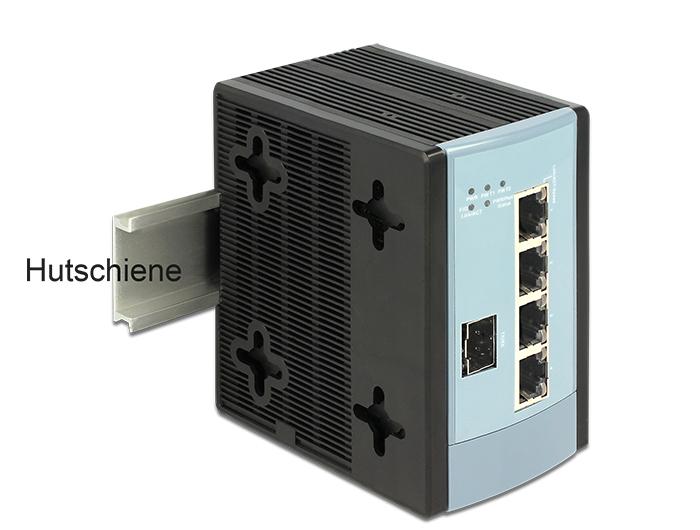

This Gigabit Ethernet Switch by Delock can be used to connect different network components. In addition, the built-in SFP slot allows you to expand the network with a fiber optic connection. The housing has a built-in mechanism for easy attachment to a DIN rail; alternatively there are several options for wall mounting.

Specification:
• Connector:
4 x RJ45 female for 10/100/1000 Mb/s Base-T
1 x SFP slot for 1 Gb/s SFP module (SFP module not included)

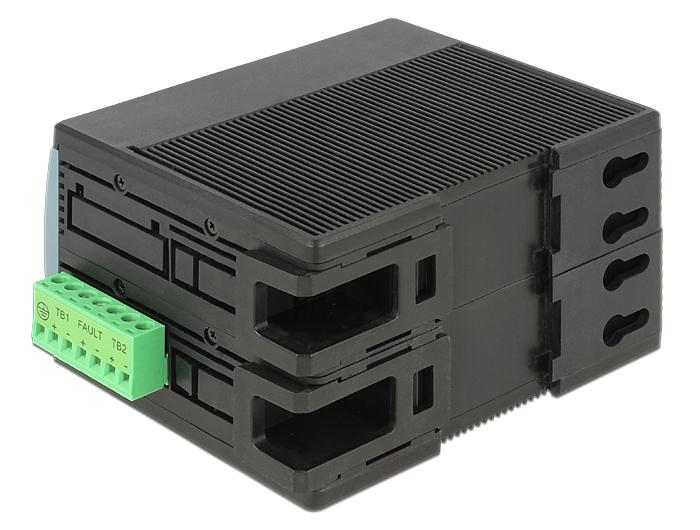

1 x terminal block (power and alarm)
1 x DC female 5.5 x 2.1 mm (power)
• Data transfer rate up to 1 Gb/s
• 5 LEDs for status monitoring
• Flexible power option for 12 V to 54 V
• Redundand power supply (optional)
• Power consumption: max. 4.6 W
• Operating temparature: -20 °C ~ 60 °C
• Integrated DIN-rail mounting
• Dimensions (LxWxH): ca. 105 x 93 x 61 mm

System requirements:
• Power supply with DC 12 ~ 54 V (not included)

Package content:
• DIN-rail switch
• User manual
• Installation manual
