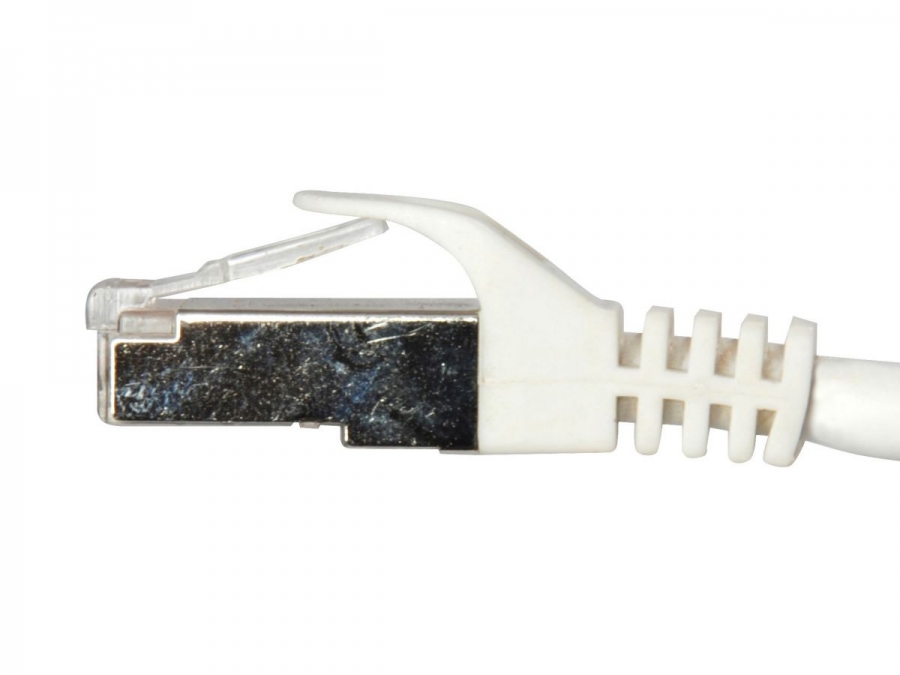

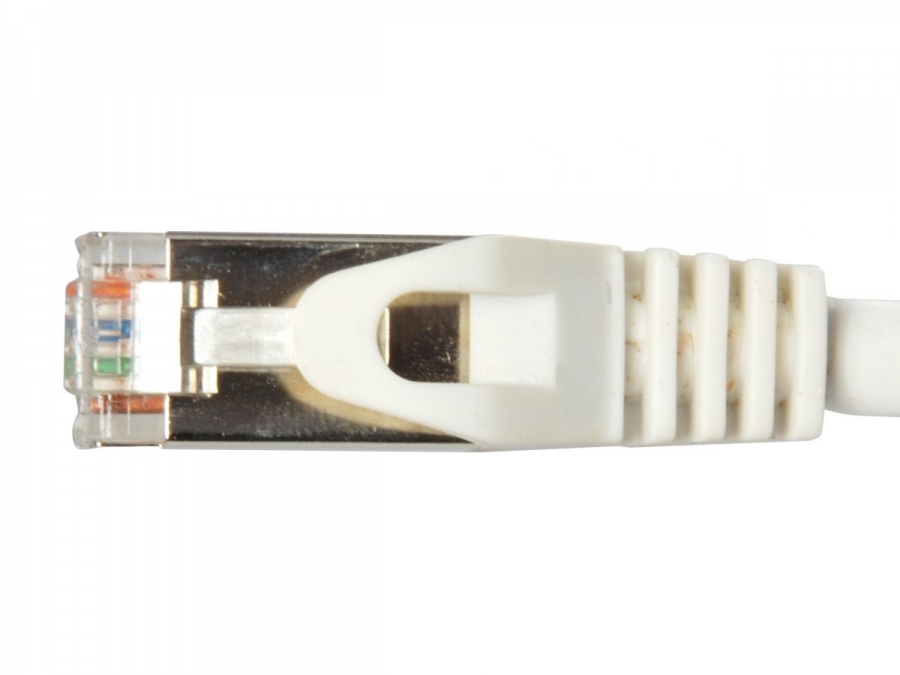

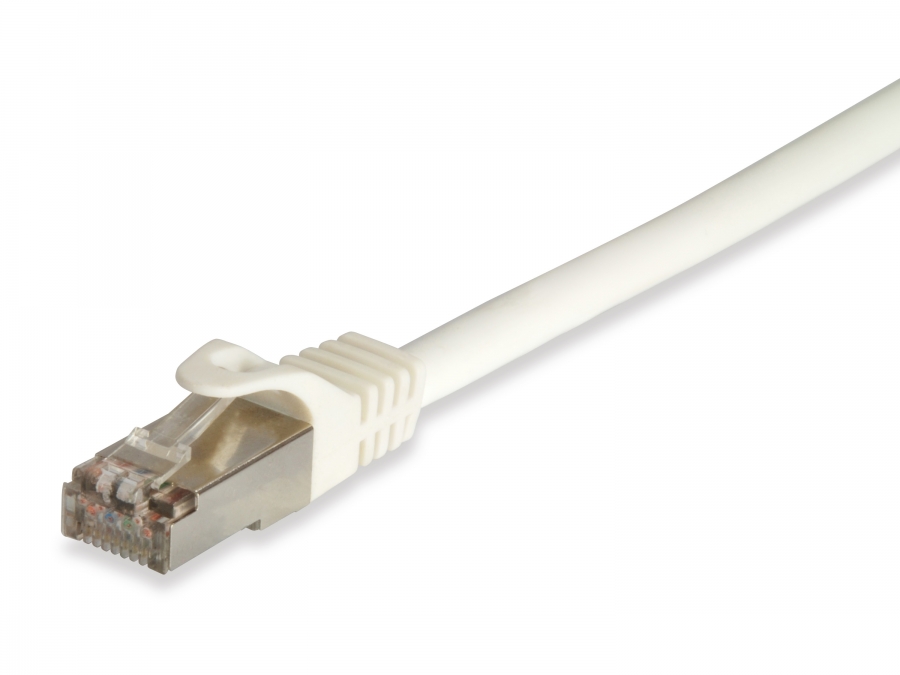

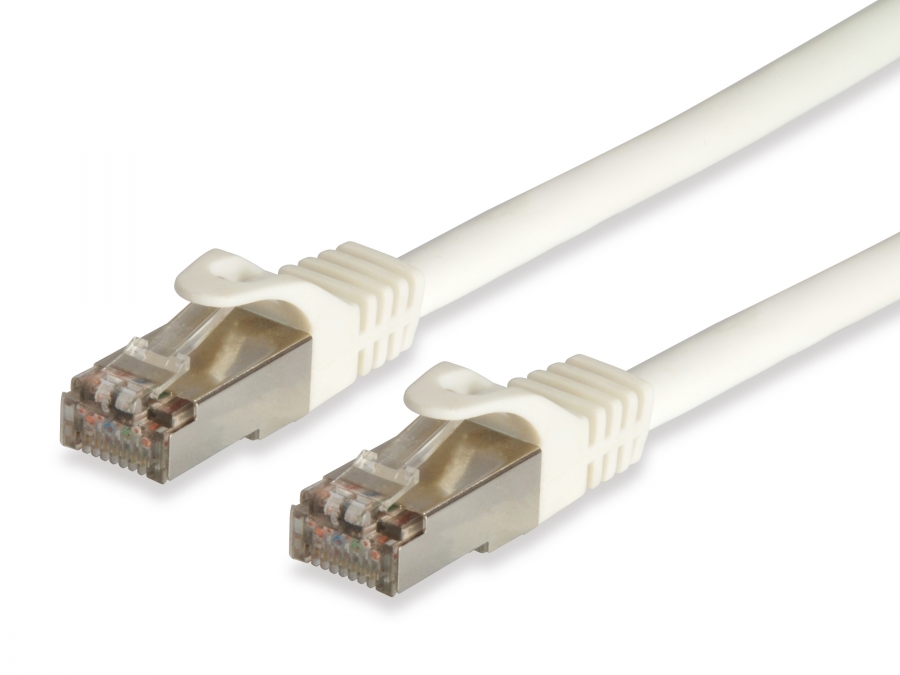

Equip Patchkabel Cat6A S/FTP 2xRJ45 15.00m weiß Cat7ProLSZH Polybeutel

EQUIP

605718

New

The equip®Cat.6A Pro S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.7 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.

Cable length15 m
Cable standardCat6a
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Product colourWhite
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor typeStranded
Conductor materialCopper
Cabling technology10GBase-T
AWG wire size26/7
Data transfer rate10000 Mbit/s
Frequency500 MHz
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) type supportedPoE+, PoE++ (4PPoE)
Molded cable bootY
Plug and PlayY
Country of originChina
Width10.7 mm
Depth11.7 mm
Height15000 mm
Outer diameter6.1 mm
Weight516 g
Quantity per pack1 pc(s)
Package width200 mm
Package depth45 mm
Package height260 mm
Package weight536 g
Package typePolybag
Sustainability complianceY
Sustainability certificatesRoHS, CE, REACH
Doesn't containHalogen
Harmonized System (HS) code84733080
Master (outer) case width300 mm
Master (outer) case length300 mm
Master (outer) case gross weight13.4 kg
Master (outer) case height400 mm
Products per master (outer) case25 pc(s)

Network RJ45 (7 cat)
