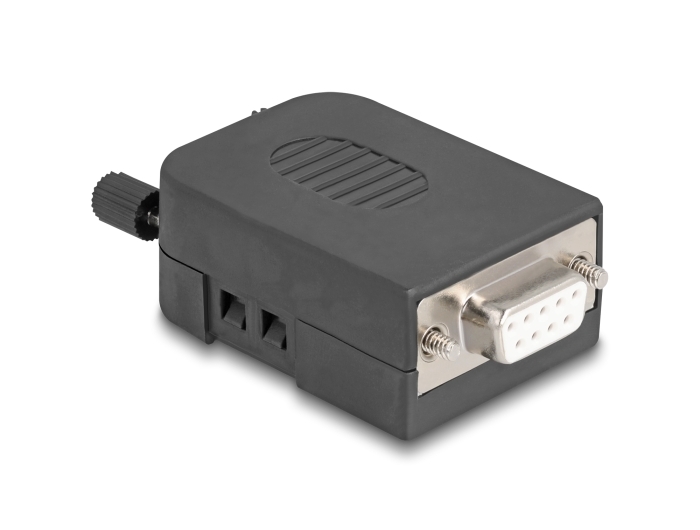

Delock Sub-D connector housing 9 pin serial made of plastic including terminal block Connector socket for RS-232/RS-485/CANBUS

Reference 90655

Condition: New

More info

This terminal block adapter by Delock can be used to connect bare wires. It is suitable for serial data communication, e.g. for connecting devices with compatible interfaces, such as computers, microcontrollers or industrial controllers.

Protection by enclosure

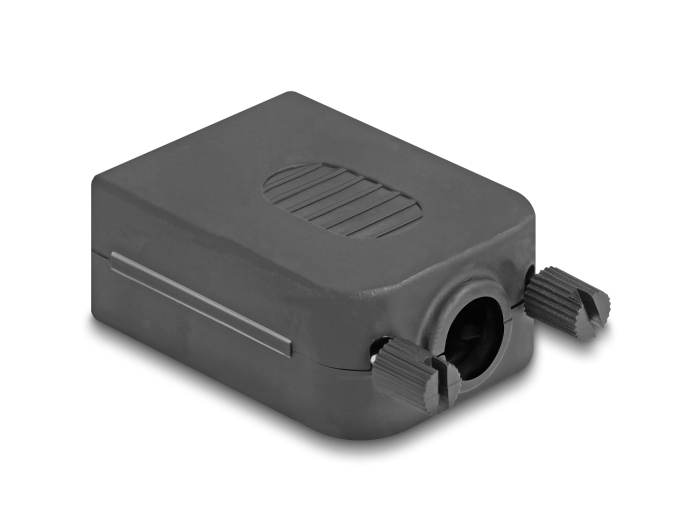

This D Sub connector housing protects the terminal block PCB board from dirt and damage.

Strain relief
The integrated strain relief fixes the cable in the enclosure.

Specification:
• Connectors:
1 x serial D-Sub 9 female with screws
1 x 3 pin terminal block
• D-Sub 9: CD(1), RXD(2), TXD(3), DTR(4), GND(5), DSR(6), RTS(7), CTS(8), RI(9)
• Terminal block: RXD (2), TXD (3), GND (5)
• Pitch: 3.81 mm
• Useable for a cable gauge from 26 to 18 AWG
• For cable diameter: 10 mm
• Operating temperature: -40 °C ~ 70 °C
• Dimensions (LxWxH): ca. 48 x 20 x 34 mm

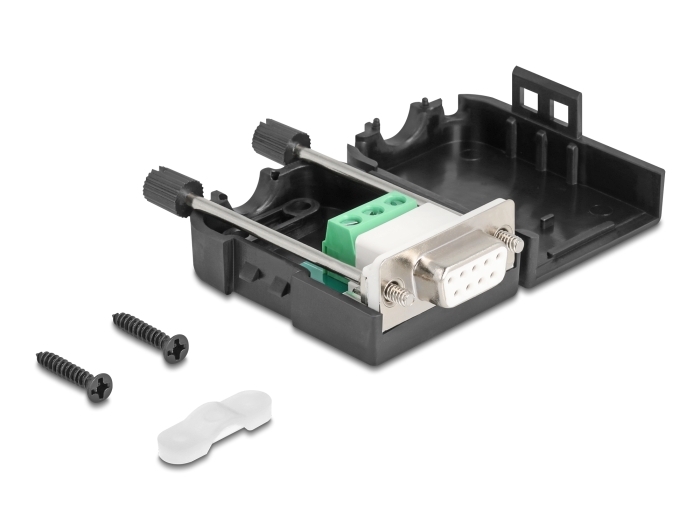

Package content:
• Adapter
• 1 x strain relief
• 2 x locking screw

Data sheet:
http://www.delock.de/produkt/90655/pdf.html?sprache=en
