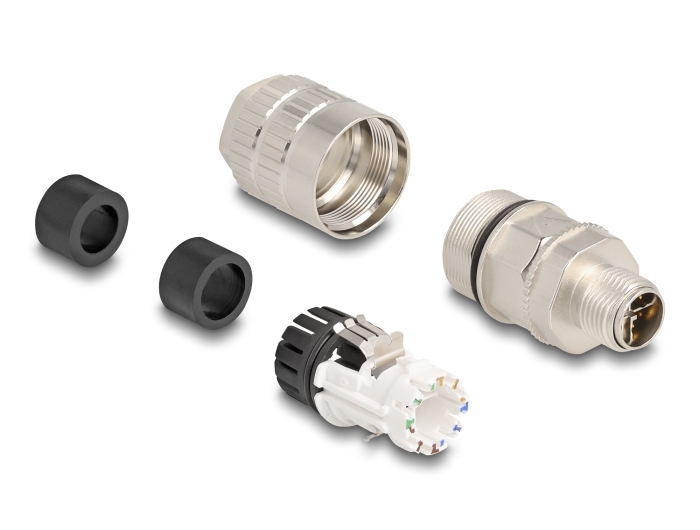

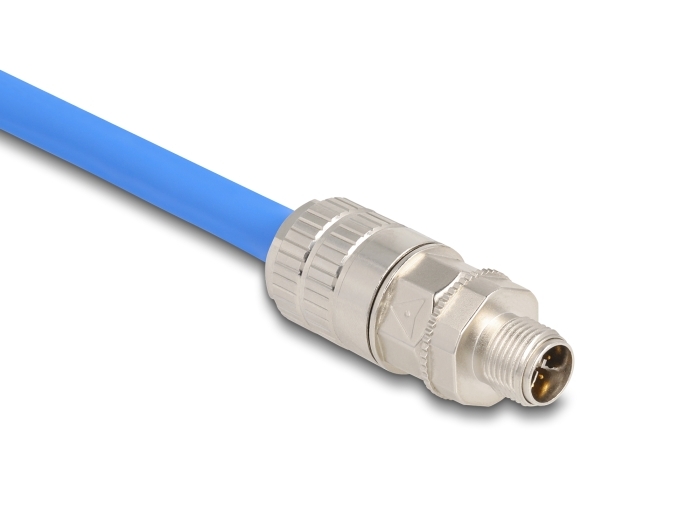

Delock M12 male 8 pin X-coded field assembly Cat.6A

DELOCK

86032

New

This industrial connector by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
System requirements:
• 16 mm spanner for assembly
Specification:
• Connectors:
  1 x M12 male X-coded 8 pin
  1 x LSA block
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and IEC 61076-2-109, and ANSI/TIA 568-D.2
• Supports IEEE 802.3an: 10GBASE-T
• Supports PoE++
• Material: zinc diecast
• For solid or stranded wire up to 0.644 mm (22 - 26 AWG)
• For cable diameter from 5.5 - 9.0 mm
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67
• Dimensions (LxD): ca. 50 x 20 mm
Package content:
• Connector
Data sheet:
http://www.delock.de/produkt/86032/pdf.html?sprache=en
