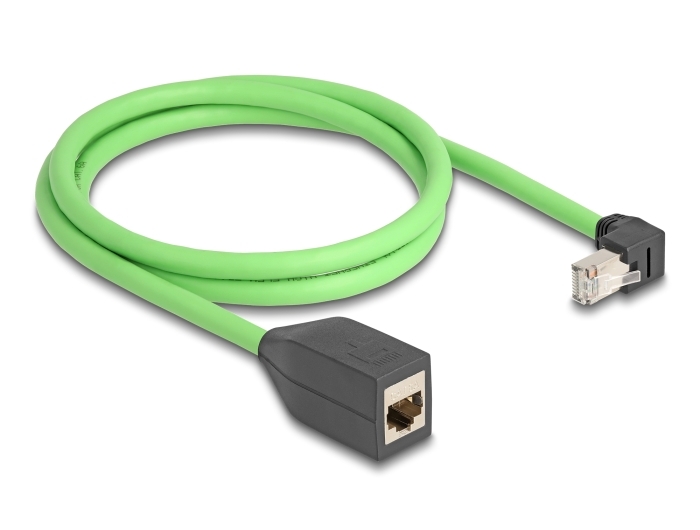

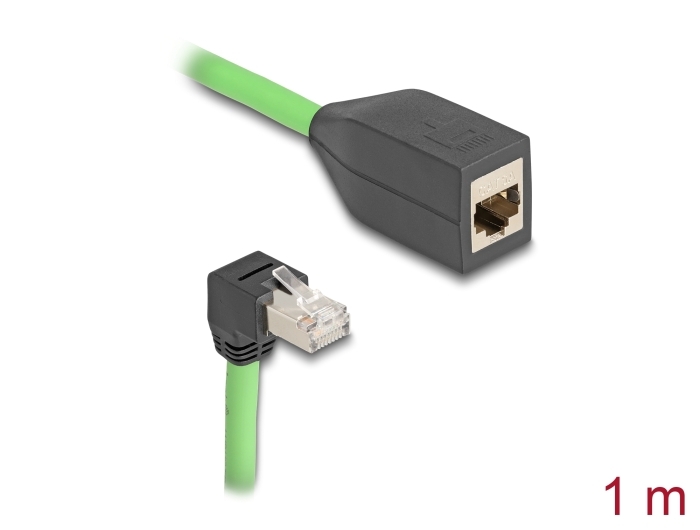

Delock RJ45 Network Extension Cable Cat.6A plug downwards angled to jack SF/UTP suitable for drag chains PUR (TPU) 1 m green

DELOCK

80886

New

This network cable by Delock can be used to connect different networking devices, e.g. a NIC to a switch or a patch panel.

Drag chain suitability
The high-quality processed cable supports up to 10 million bending cycles, therefore it is also suitable for use in drag chains and other harsh environments.


The cable sheath made of polyurethane (PUR) is oil and UV resistant, so the cable also meets the high requirements for industrial applications, e.g. in the tool and automation sector.
System requirements:
• Patch cable
Specification:
• Connectors:
  1 x RJ45 plug 90° downwards angled
  1 x RJ45 jack
• 1:1 connected
• Cat.6A specification
• Suitable for drag chains
• SF/UTP
• Shielding: aluminium foil, tinned copper braiding
• Copper conductor
• Cable gauge: 26 AWG (0.129 mm²)
• Cable diameter: ca. 6.8 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 10,000,000
• Smallest bending radius:
  54.4 mm with fixed installation
  102.0 mm with flexible installation
• Oil-resistant
• UV-resistant
• Flammability class: UL 94
• Operating temperature: -40 °C ~ 80 °C
• Colour: green
• Length incl. connectors: ca. 1 m
Data sheet:
http://www.delock.de/produkt/80886/pdf.html?sprache=en
