Delock RJ45 Plug field assembly Cat.6A

Delock RJ45 Plug field assembly Cat.6A

DELOCK

86016

New

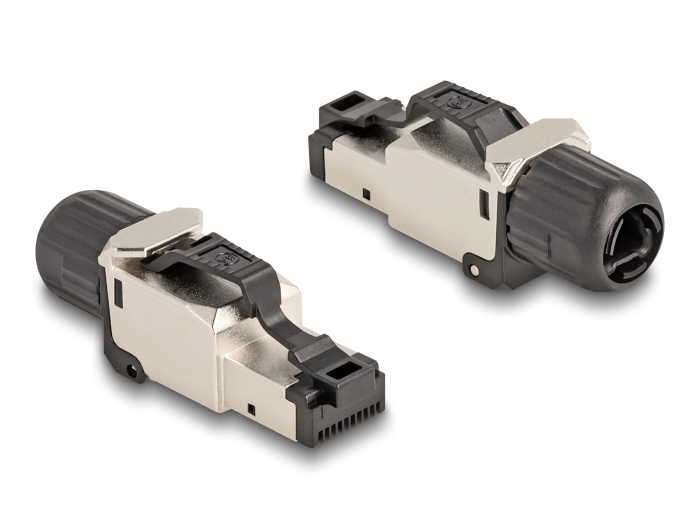

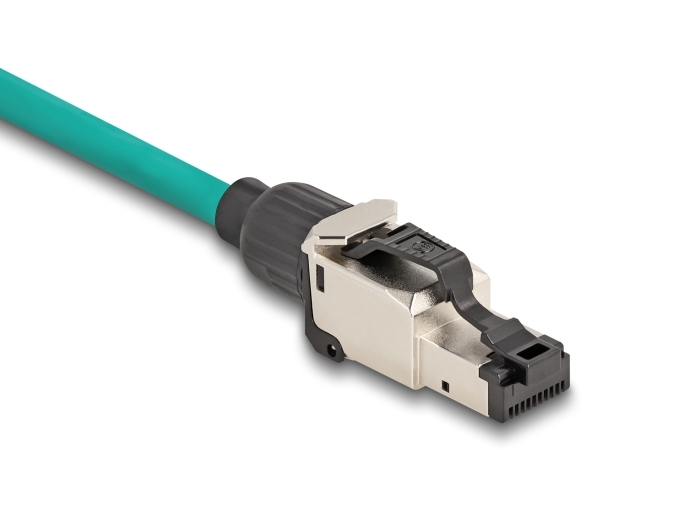

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.
Specification:
• Connectors:
  1 x RJ45 plug
  1 x LSA block
• Cable routing 180°
• Shielded (STP)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and IEC 60603-7-51, and ANSI/TIA 568.2-D
• Supports PoE++
• TIA-568B pinout
• For solid or stranded wire up to 0.644 mm (22 - 26 AWG)
• For cable diameter from 6.0 - 8.5 mm
• Operating temperature: -40 °C ~ 68 °C
• Dimensions (LxWxH): ca. 48.7 x 16.4 x 13.9 mm

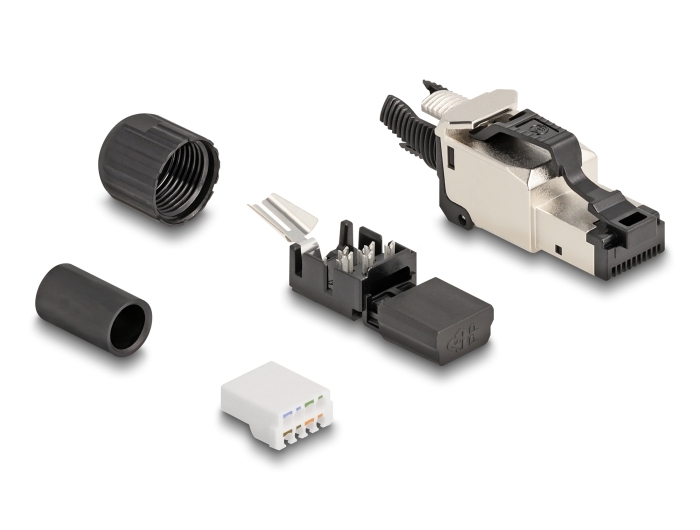

Package content:
• RJ45 plug
• Dust cover
• Cable manager
• Installation manual
Data sheet:
http://www.delock.de/produkt/86016/pdf.html?sprache=en
