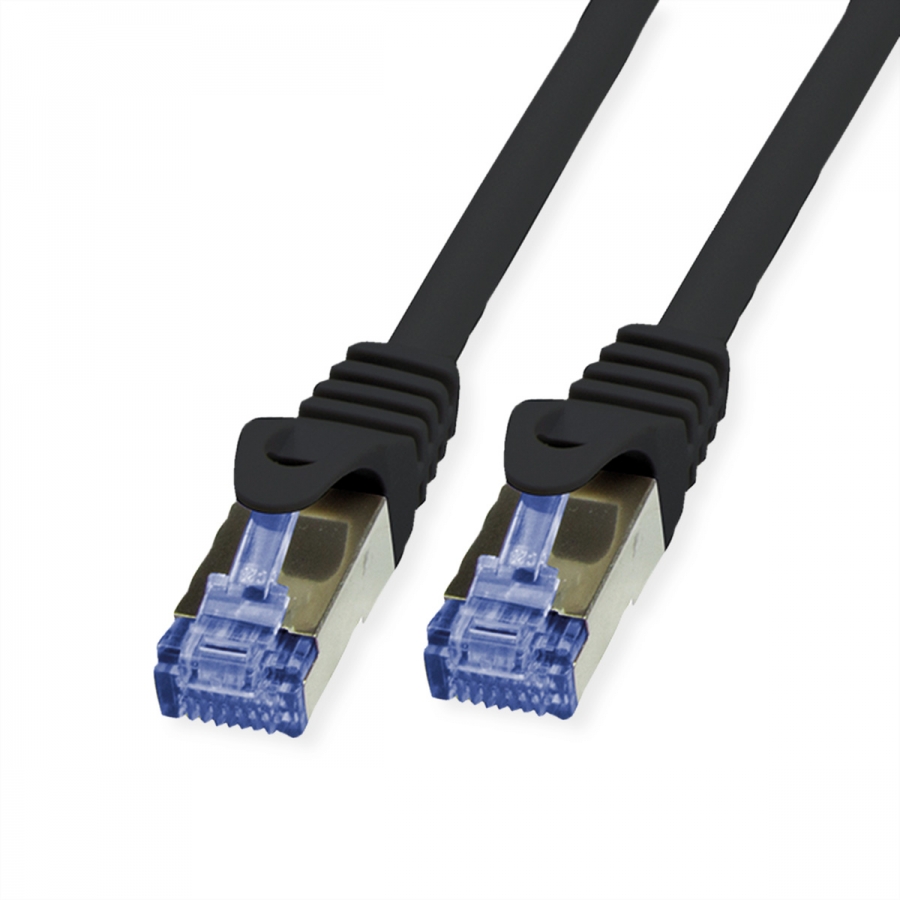

VALUE Outdoor S/FTP Patch Cord Cat.6A/Class EA, Solid, TPE, LSOH, black, 30 m

VALUE

21.99.0721

New

Patch cord for outdoor use, e.g. for connecting an IP camera

Patch cords for networking connections between devices in combination with outdoor application (e.g. connection to outdoor surveillance cameras)

  • Assembled double shielded (PiMF) twisted pair cable made of solid wire in category 6A with shielded RJ-45 connectors on both sides.
  • Suitable for connecting external components (e.g. IP cameras), but also for PoE applications or as TP extension cable in multimedia applications
  • UV - resistant
  • Durable thanks to molded bend protection
  • Contact assignment: 1:1 according to EIA/TIA568, 8 cores
  • Construction: 8 cores solid wire. Pair shielding: aluminum-clad polyester foil. Overall shielding: copper braiding
  • High quality gold plated contacts

REMARK: NOT suitable for underground installation / application

Important: Not suitable for underground installation. RJ-45 connectors must be protected from the influence of the weather.



ManufacturerVALUE
Product groupTwisted Pair Cable
Product typeS/FTP Patchcord
Colourblack
Length30 m
Shield typePiMF
Transfer qualityCat6A / Class EA
Quantity of wires8
Conductor typeSolid wire
Crossed
Cable LSOH
Material (external cable mantle)TPE
Side 1 Connector TypeRJ-45
Side 1 Connector GenderMale
Side 2 Connector TypeRJ-45
Side 2 Connector GenderMale
Connector Type RJ45Standard
Weight1053 g
Height of packaging (single piece)50 mm
Width of packaging (single piece)220 mm
Depth of packaging (single piece)200 mm
Package weight (single piece)0.875 kg
Current catalog editionC23-New

Network RJ45 (6a cat)
