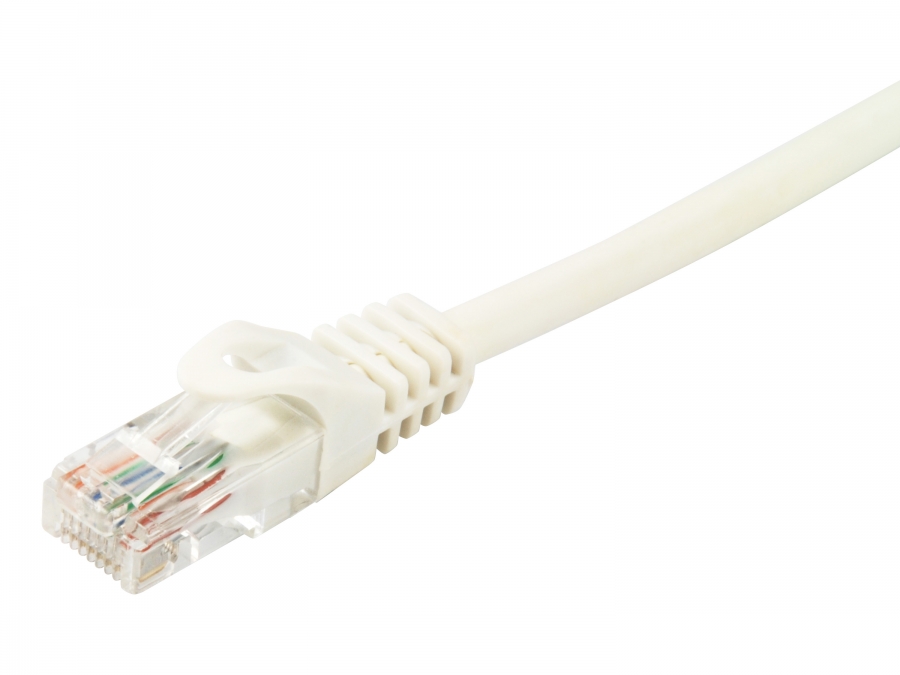

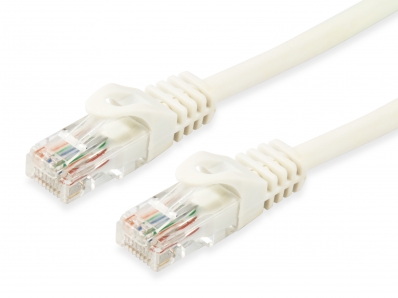

Equip Patchkabel Cat6A U/UTP 2xRJ45 20.00m weiß LSZH

EQUIP

603009

New

The equip® Cat.6A U/UTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.

Cable length20 m
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Product colourWhite
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor typeStranded
Conductor materialCopper
Cabling technology10GBase-T
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
AWG wire size26/7
Frequency500 MHz
Power over Ethernet (PoE)
Power over Ethernet (PoE) type supportedPoE+
Molded cable boot
Plug and Play
Country of originChina
Width10.7 mm
Depth11.7 mm
Height20000 mm
Insulation thickness0.35 mm
Outer diameter5.5 mm
Weight625 g
Quantity per pack1 pc(s)
Package width250 mm
Package depth50 mm
Package height290 mm
Package weight650 g
Package typePolybag
Doesn't containHalogen
Compliance certificatesRoHS, CE, REACH
Harmonized System (HS) code84733080
Master (outer) case width300 mm
Master (outer) case length300 mm
Master (outer) case gross weight13 kg
Master (outer) case height400 mm
Products per master (outer) case20 pc(s)
Insulation outer diameter1.05 mm
Sustainability compliance
