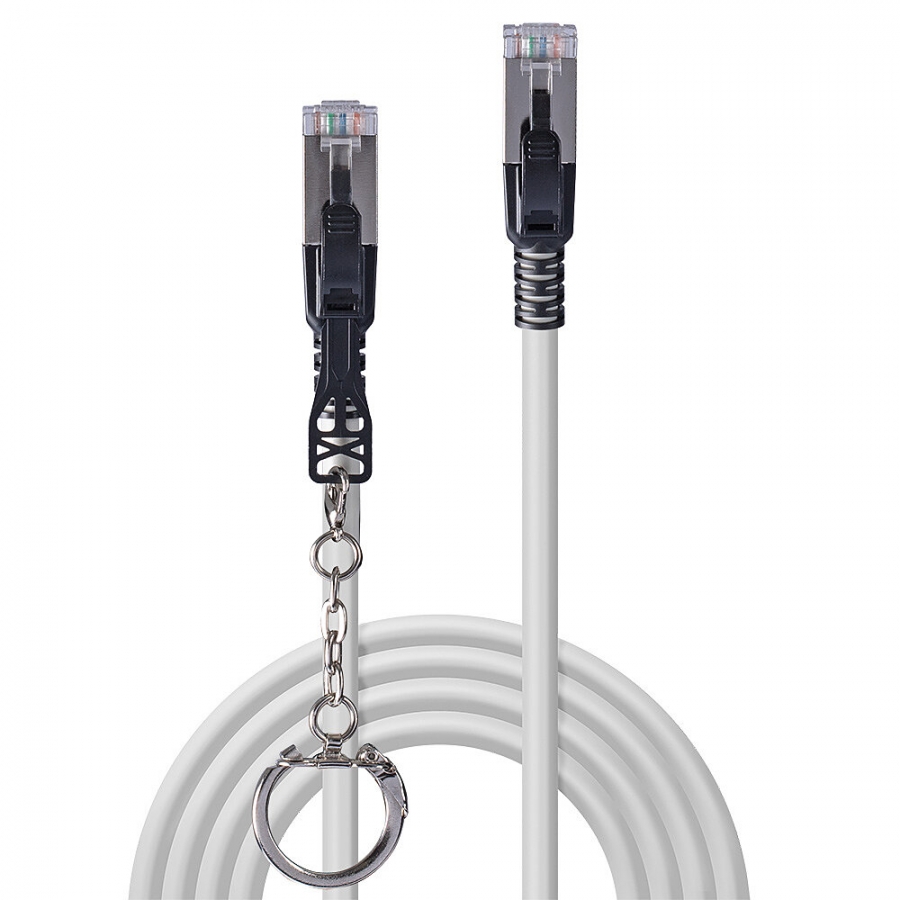

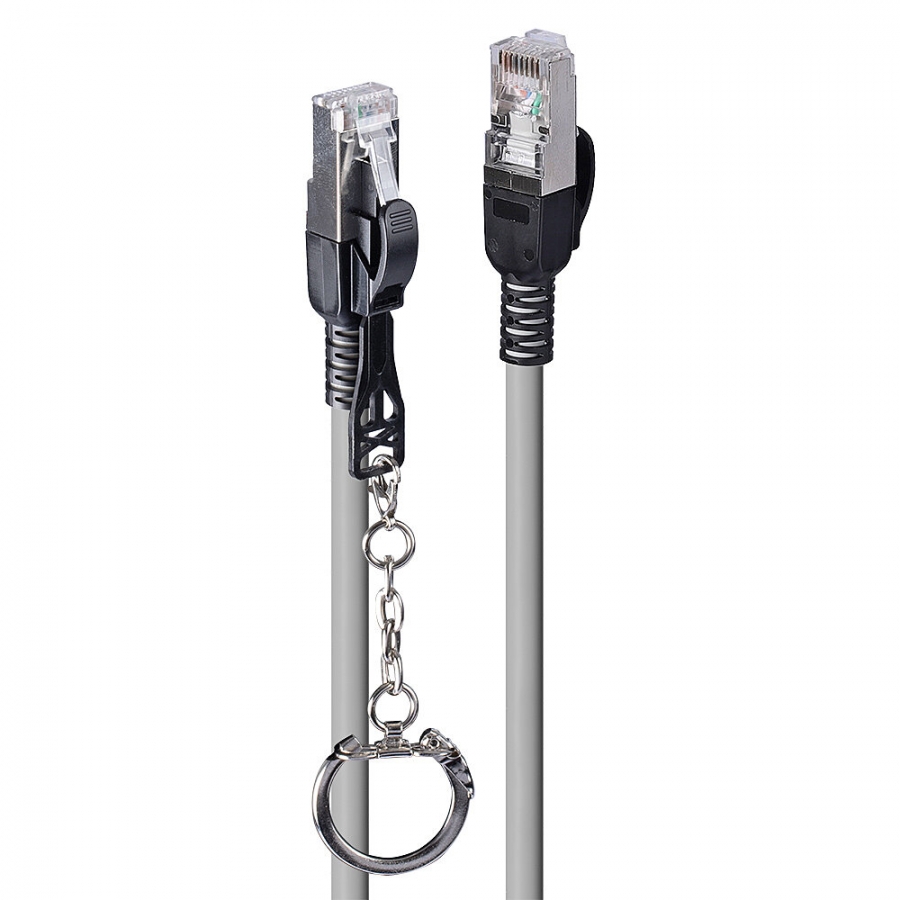

LINDY 5m Cat.6A S/FTP SicherheitsPatchkabel, grau

Reference 47606

Condition: New

More info

5m Cat.6A S/FTP LSZH Network Security Cable, Grey

Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH
Locking connectors to prevent unauthorized access only accessible with the included key
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

The Lindy Cat.6A Security Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Cable length	5 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Product colour	Grey
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Nickel
Connector shielding	Jā
Connector shield material	Aluminium
Jacket material	Low smoke zero halogen (LSZH)
Conductor material	Copper
AWG wire size	26
Frequency	500 MHz
Bend radius (min)	7.2 cm
Nominal attenuation	49.3dB/100m @ 500MHz
Certification	RoHS, REACH, UL
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Connector 1 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)	11.6 x 21.5 x 8.5 mm
Package type	Polybag
