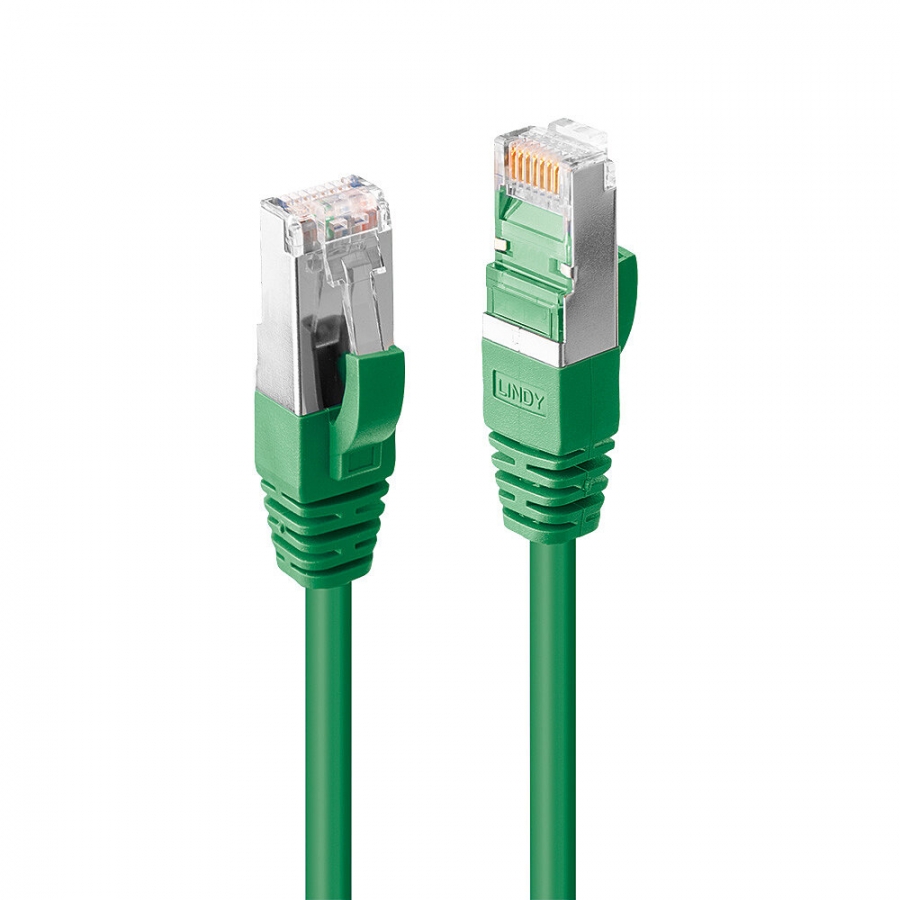

LINDY Patchkabel Cat6 S/FTP LSZH Grün 0.30m

Lindy

45949

New

Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Cable length0.3 m
Cable standardCat6
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Product colourGreen
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Conductor materialCopper
Connector housing materialPolycarbonate (PC)
AWG wire size26
Data transfer rate1000 Mbit/s
Frequency250 MHz
Bend radius (min)1.86 cm
Operating temperature (T-T)-25 - 60 °C
Storage temperature (T-T)-25 - 60 °C
Outer diameter6.2 mm
Quantity per pack1 pc(s)
Package typePolybag
Sustainability certificatesREACH, RoHS, UL ECOLOGO
Warranty period10 year(s)

Network RJ45 (6 cat)
