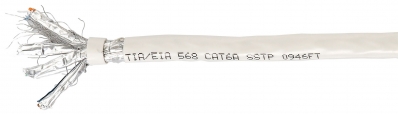

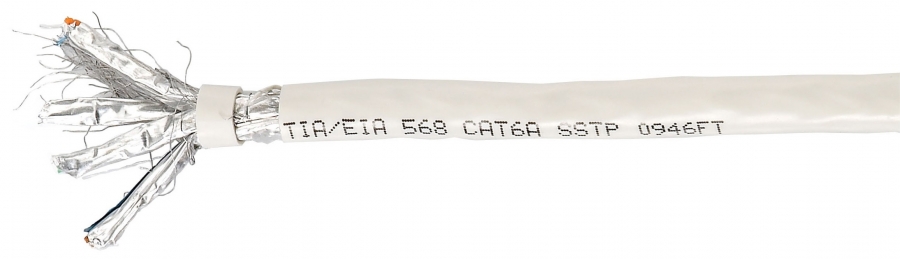

Equip Instal.Kab Cat6A S/FTP 4P23 305.00m grau LSZH

Reference 401493

Condition: New

More info

The equip® Installation Cable is made of preeminent materials and thoroughly examined to meet or surpass industrial standards defined by the EIA / TIA, ISO and EN standard bodies. The performance is guaranteed via a comprehensive test including attenuation, return loss, NEXT (Next End Crosstalk) and FEXT (Far End Crosstalk) up to 600 MHz and hence the equip® Installation Cable serves well in the most demanding networking environments.

Cable length	305 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	N
Connector 2	N
Product colour	Beige
Connector 1 gender	N
Connector 2 gender	N
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Cabling technology	10GBase-T
Ethernet interface type	5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Networking standards	IEEE 802.3, IEEE 802.5
AWG wire size	23
Data transfer rate	10000 Mbit/s
Frequency	600 MHz
Certification	ISO/IEC 11801, EN50288, TIA/EIA-568-B.2
Outer diameter	7.4 mm
Weight	16 kg
Sustainability certificates	RoHS
Harmonized System (HS) code	84733080
Input impedance	100 Ω
