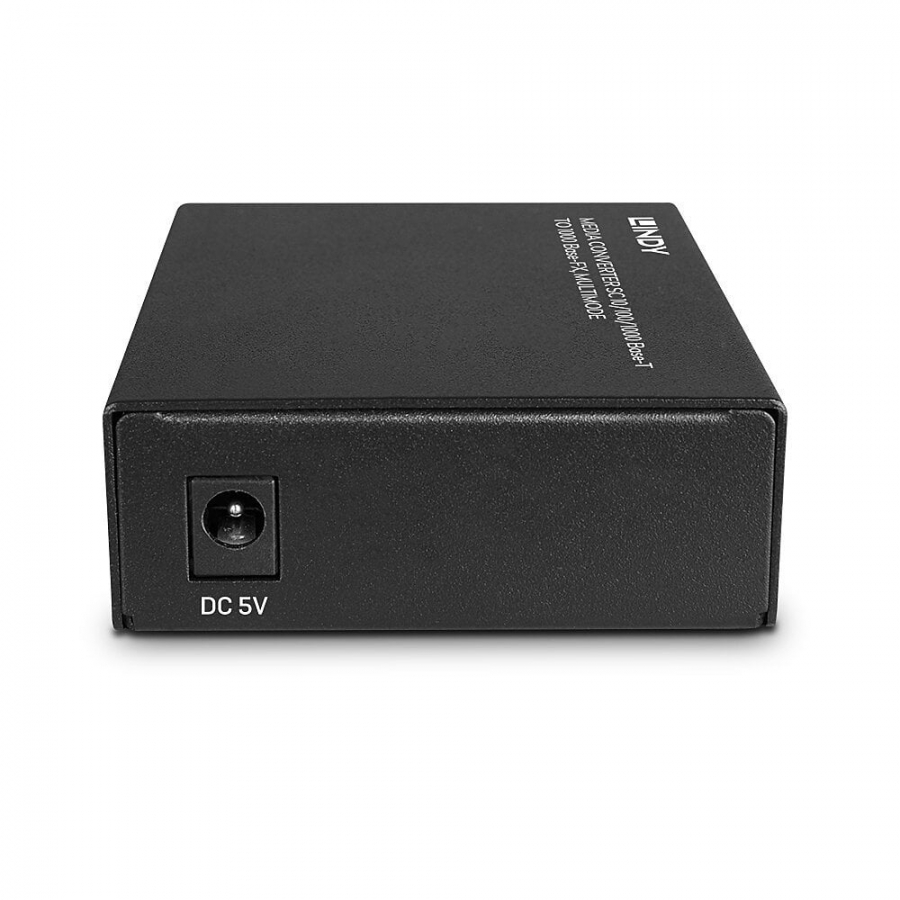

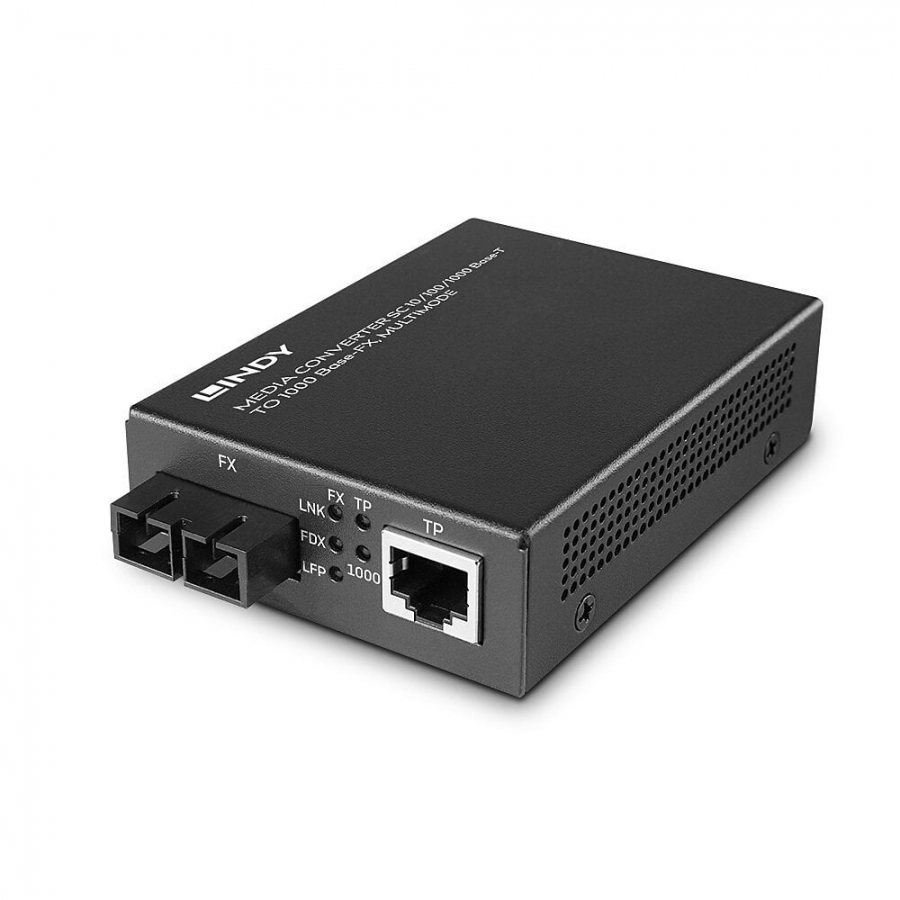

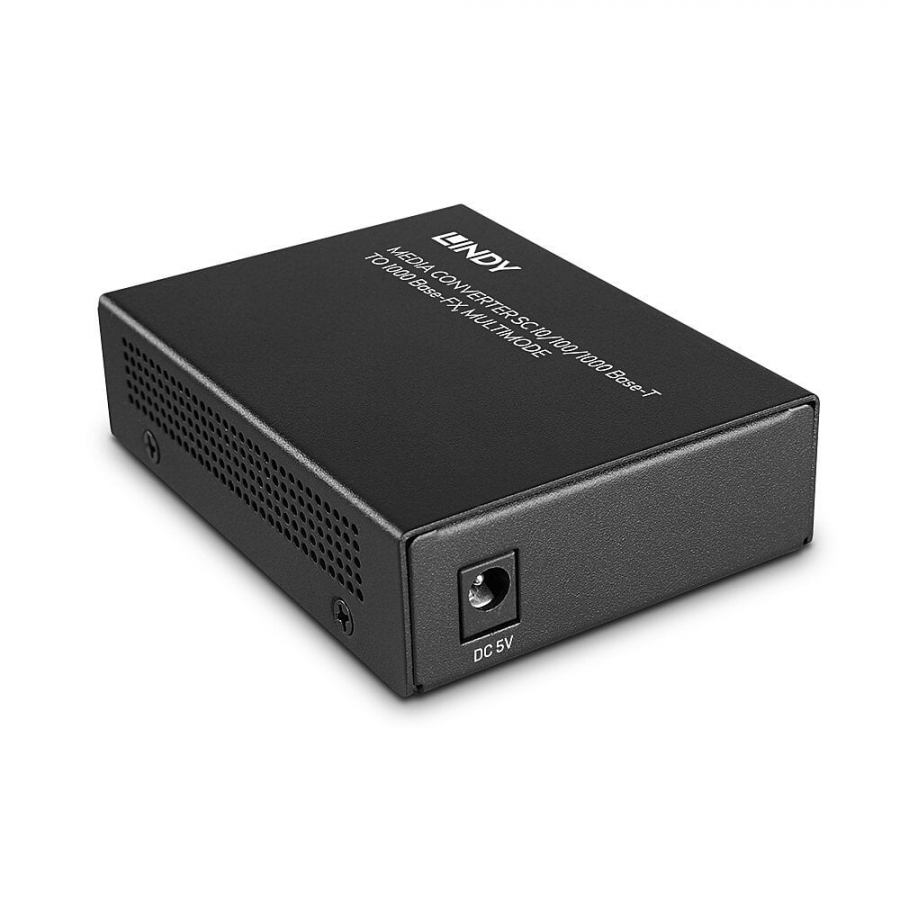

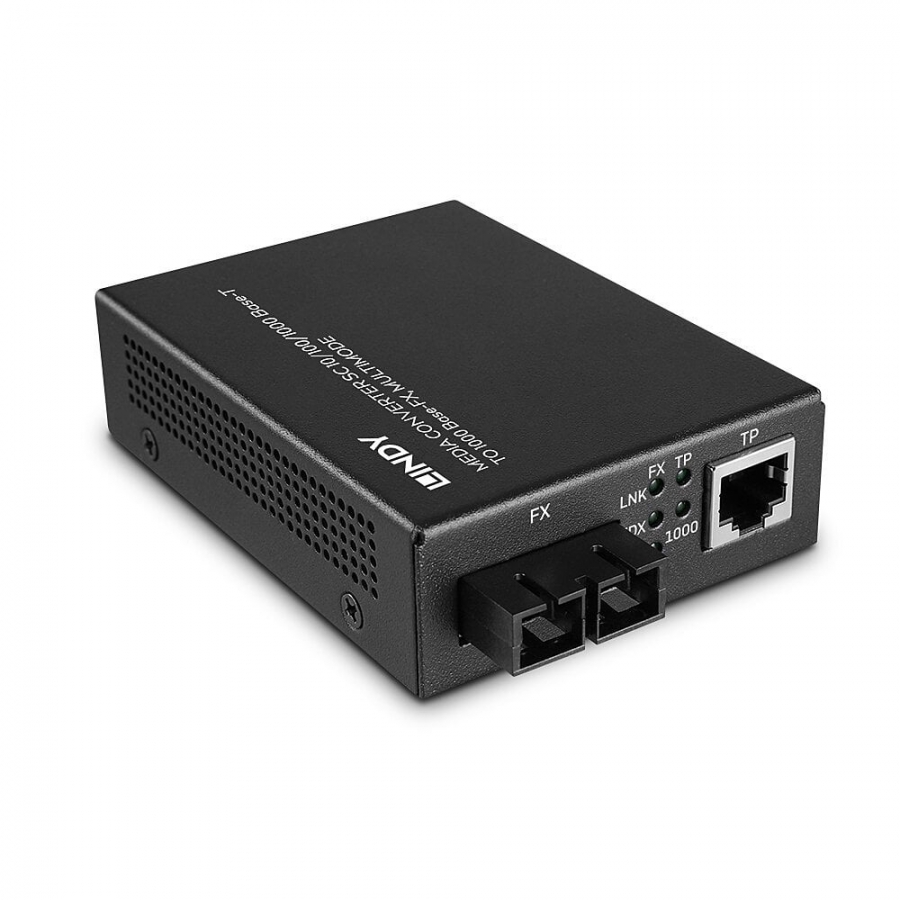

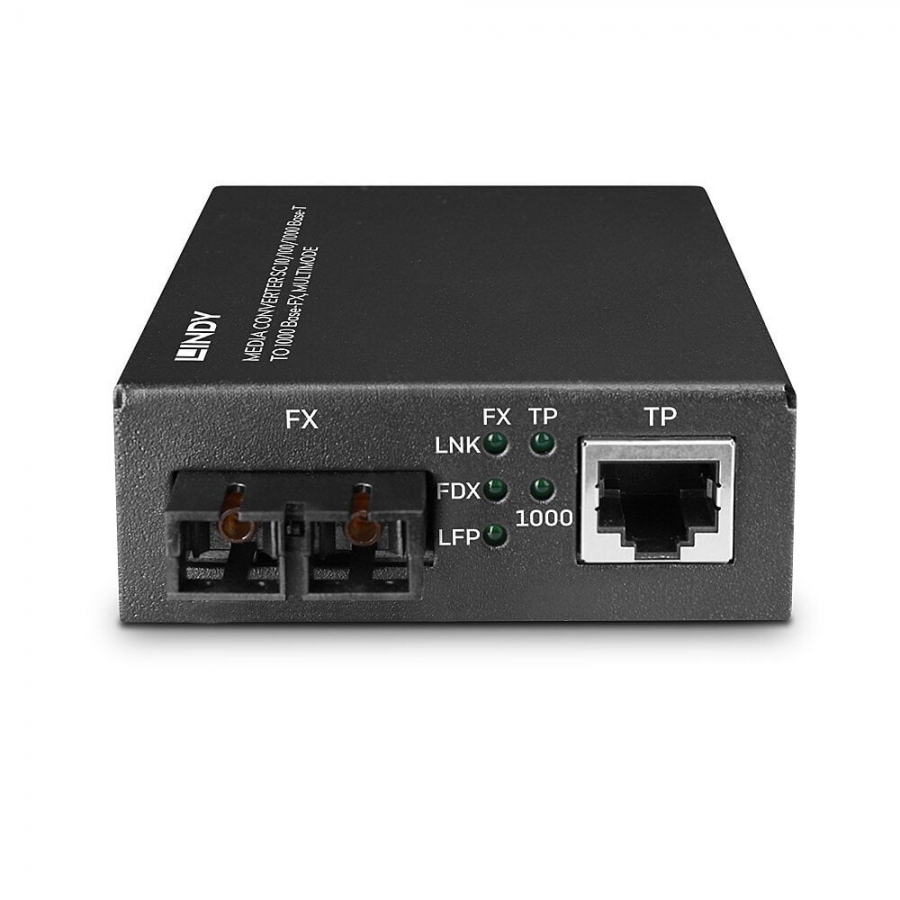

LINDY MediaConverter SC 1000 Base-FX, Multimode

Reference 25119

Condition: New

More info

This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.

Networking standards	IEEE 802.3
Ethernet LAN data rates	10,100,1000 Mbit/s
Duplex system	Full, Half
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	2
Maximum transfer distance	550 m
Wavelength	850 nm
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Internal	N
LED indicators	Y
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Output voltage	5 V
Output current	1 A
Width	95 mm
Depth	70 mm
Height	25 mm
Weight	540 g
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Package width	165 mm
Package depth	155 mm
Package height	45 mm
Package weight	650 g
