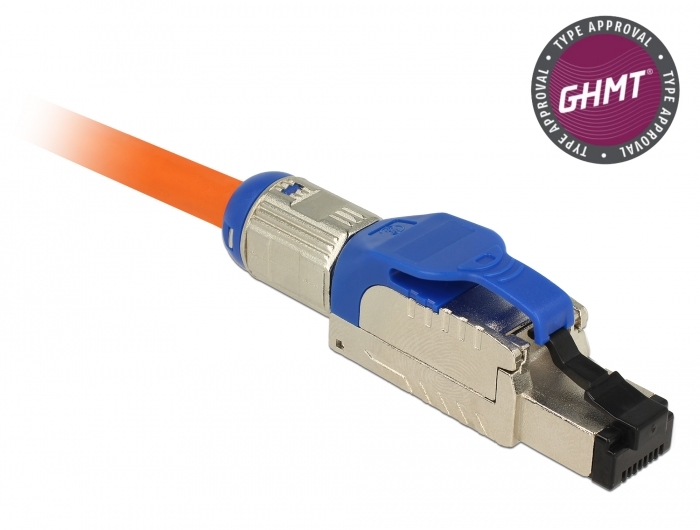

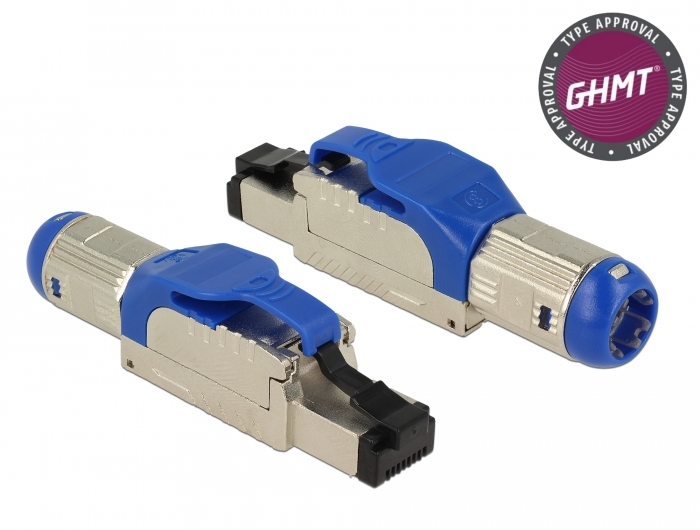

Delock RJ45 Plug field assembly Cat.8 metal

Delock RJ45 Plug field assembly Cat.8 metal

DELOCK

86487

New

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.
Specification:
• Connectors: 1 x RJ45 plug
• Cable routing 180°
• Shielded (STP)
• Cat.8 specification
• GHMT certified: 2 Connector Channel (30m), Copper, Class I up to 2GHz,
  ISO/IEC 11801-1 Ed.1.0 (2017-11)
• Screwable cable boot
• Material: zinc die cast
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For cable diameter from 7.0 - 8.5 mm
• Dimensions (LxWxH): ca. 66.0 x 18.4 x 13.8 mm

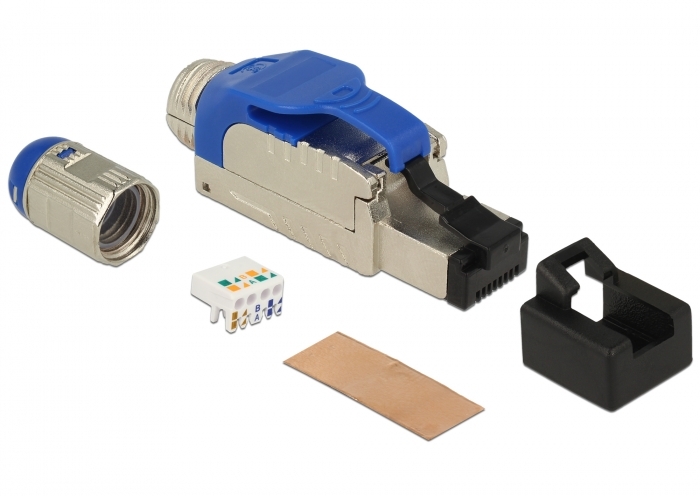

Package content:
• RJ45 plug
• Cable manager
• Dust cover
Data sheet:
http://www.delock.de/produkt/86487/pdf.html?sprache=en
