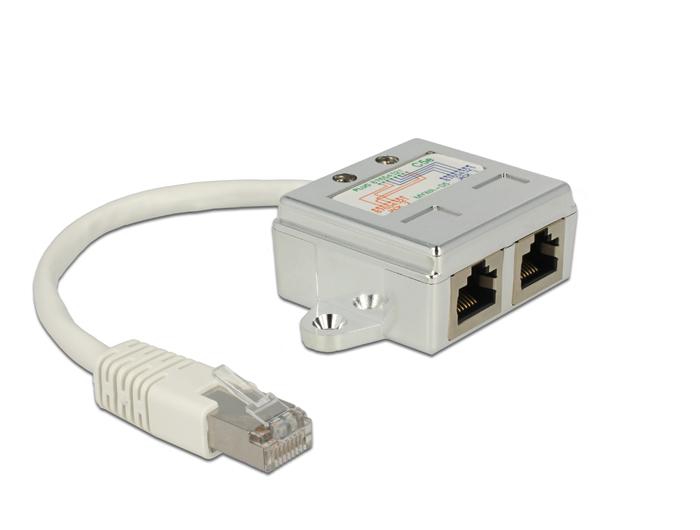

Delock RJ45 Port Doubler 1 x RJ45 male 2 x RJ45 female (2 x ISDN)

Description:
This Y-adapter by Delock enables you to double a fixed installed network connection. Thus you can use one single cable for two simultaneous ISDN connections.

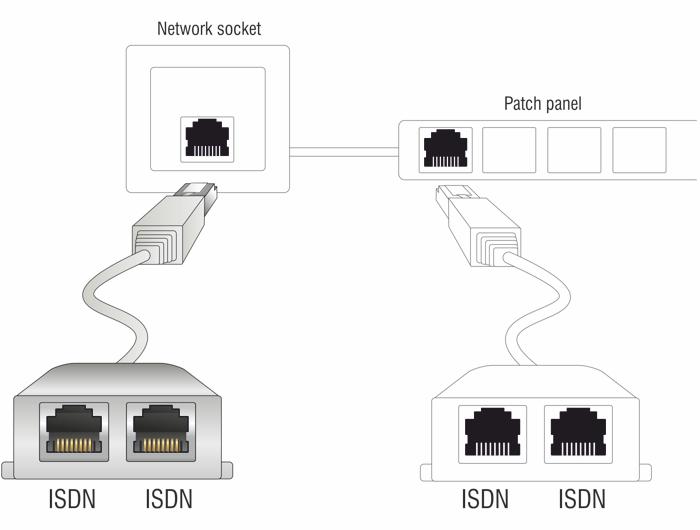

This application requires two adapters, which need to be connected with each cable side to the networking socket or patch panel. Hence you get two female ports instead of only one.

Specification:
• Connectors: 1 x RJ45 plug > 2 x RJ45 jacks
• Anodized plastic case
• Pin layout:

Plug	1 2	3 6 4 5	7 8
Socket1	5 4	-	3 6	ISDN
Socket2	-	3 6 4 5	-	ISDN

• Cable length ca. 15 cm

System requirements:
• A 8 pin Cat.5 cable with RJ45 female ports on both sides
(structured cabling, wall socket or patch panel)
• A second port doubler

Package content:
• RJ45 Port Doubler
