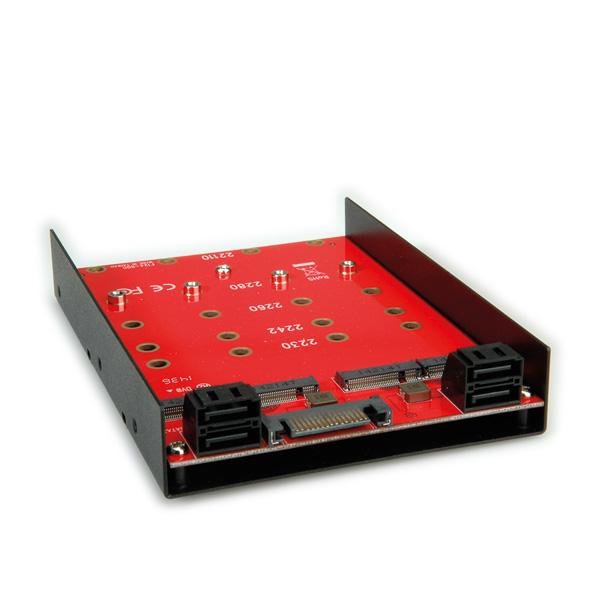

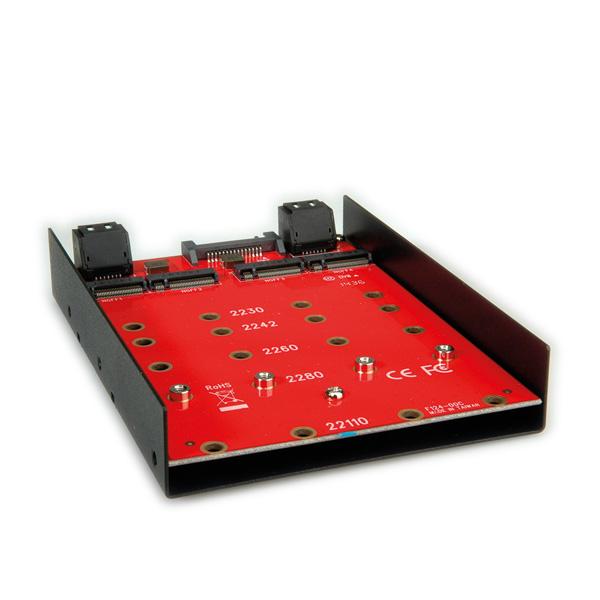

ROLINE SATA 3.5 Bay, 4x M.2NGFF SATA SSD

Reference 16.01.4140

Condition: New

Effective solution to install Fast Speed 4x M.2 NGFF 6Gbps SATA based SSD to a 3.5 inch SATA Form Factor!

Effective solution to install Fast Speed 4x M.2 NGFF 6Gbps SATA based SSD to a 3.5 inch SATA Form Factor!

Convert SATA based M.2 NGFF SSD to standard 3.5 SATA drive Form Factor
Supports 6Gbps, 3Gbps SATA based M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD
M.2 NGFF type 22110-D5-B connector on board
Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260, 2242 and 2230 SSD
Supports dual-sided SSD module 1.5mm component height on the top and bottom side
4x 7pin SATA data and 1x 15pin SATA Power connectors on board
M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application
SSD & PCBA power from SATA 12V input
Provides M.2 NGFF SSD Max 3.3V/4A power source
Transparent to the operating system and no driver required
Supports: Windows, Mac
Content: adapter, 3.5 drive metal frame

Colour	Black
Content of delivery	HDD Casing, Power Supply Unit, USB Cable (1.5 m), Manual
Conveyance good	No
Dimensions (HxWxD)	140 x 24 x 100 mm
Drive connection	S-ATA 7 pin Male
Drive form	3.5
Manufacturer	ROTRONIC-SECOMP
Manufacturer Item No.	16.01.4140
Material (casing)	Metal
Power supply	4x SATA 7pin / 1x SATA 15pin
Product group	Drive housing
Product type	Plug-In Casing S-ATA
Quantity of Drives	1
Technical particularity	Reset button
