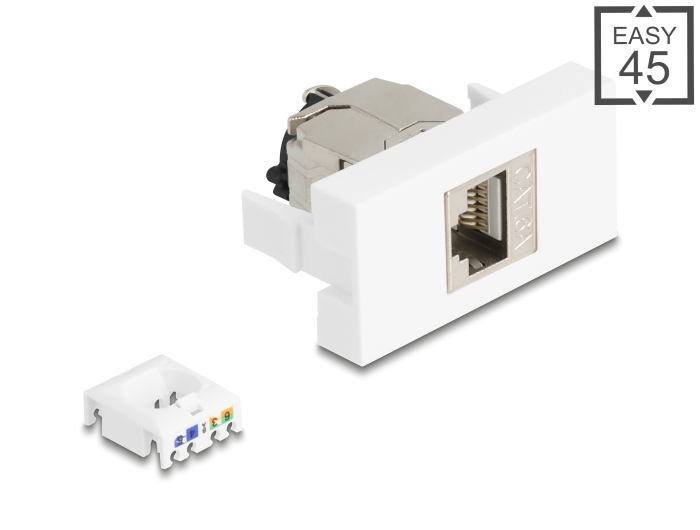

Delock Easy 45 Module RJ45 jack to LSA Cat.6A STP with locking clip and cable tie-free

Reference 90905

Condition: New

More info

This Easy 45 module by Delock is designed to provide a network cable port and can be attached to the Delock Easy 45 module system. The simple snap-in mechanism ensures that the module is firmly in place and can be easily removed if necessary.

Cable tie-free

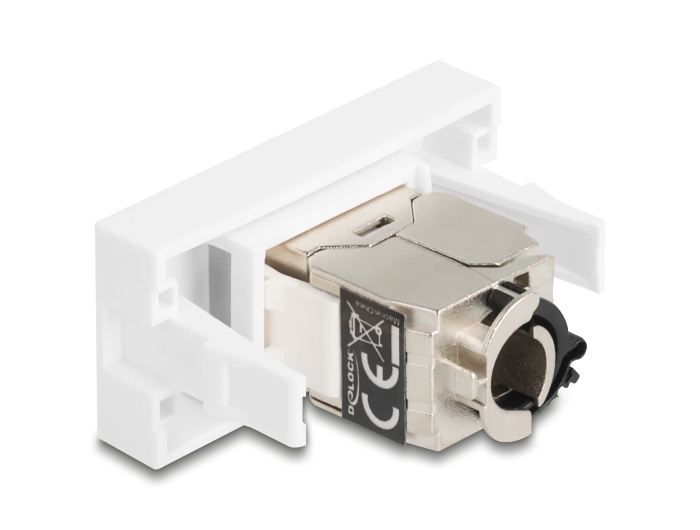

On the back of the module there is a locking clip with which the network cable can be fixed and fastened without cable ties.

Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.

Specification:
• Connectors:
1 x RJ45 jack
1 x LSA (toolfree)
• Cat.6A specification
• Shielded (STP)
• Mounting without cable ties
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• For cable diameter from 6.0 - 8.5 mm
• Suitable for module holder Delock Easy 45
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): ca. 22.5 x 45.0 x 31.5 mm
• Colour: white / silver

Package content:
• Easy 45 module

Data sheet:
http://www.delock.de/produkt/90905/pdf.html?sprache=en
