Delock Fiber Optic Patch Panel 6 port for SC Duplex and LC Quad with alternative panel for 8 x SC Simplex or LC Duplex grey for

Reference 86095

Condition: New

More info

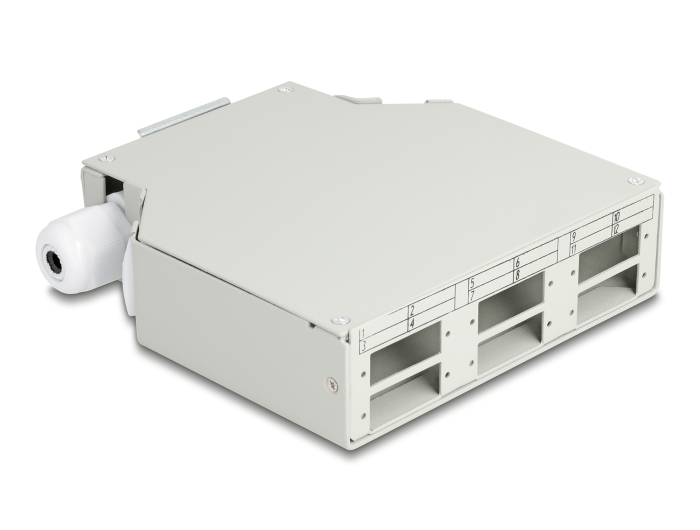

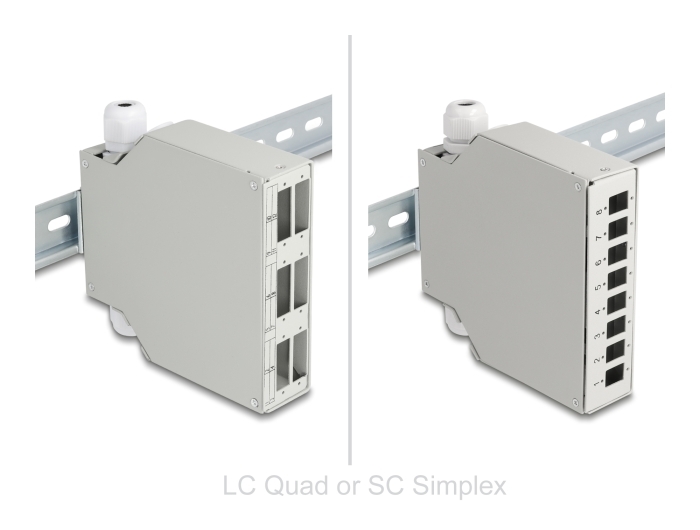

This fiber optic patch panel by Delock is suitable for mounting on a 35 mm wide DIN rail and can accommodate up to 6 fiber optic couplers of the types SC Duplex or LC Quad.

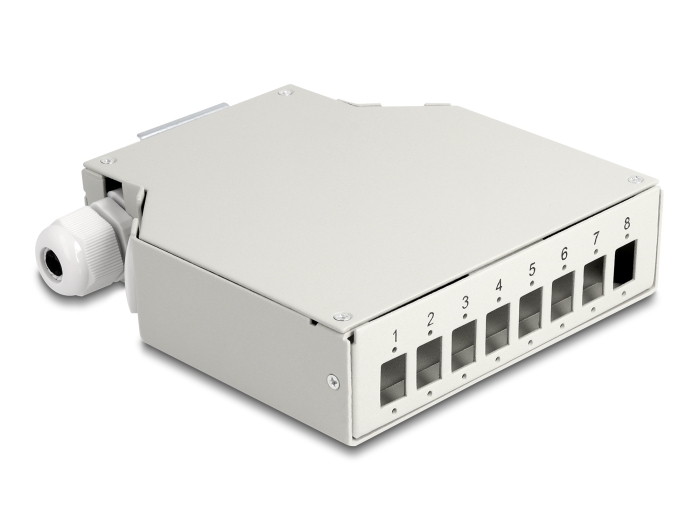

With alternative panel for 8 x SC Simplex or LC Duplex
The fiber optic distribution box can be equipped with an alternative panel that offers space for up to 8 SC Simplex or LC Duplex couplings. This means that the box can be used with either a 6 or an 8 panel.

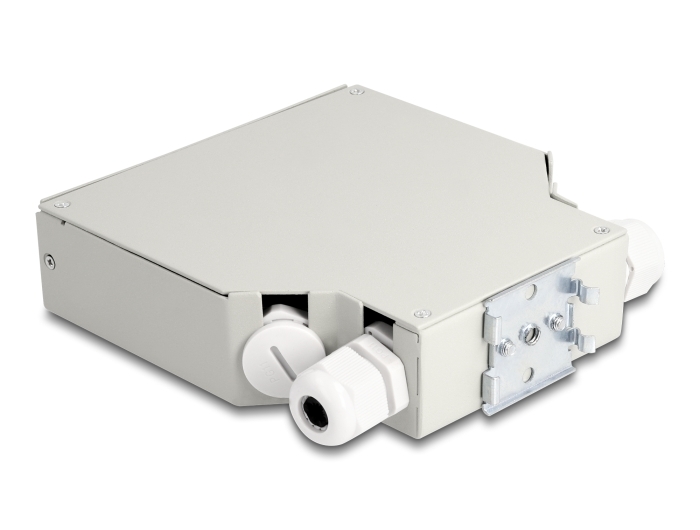

PG cable glands for feeding through fiber optic cables
The fiber optic cables can be fed through two waterproof PG11 cable glands.

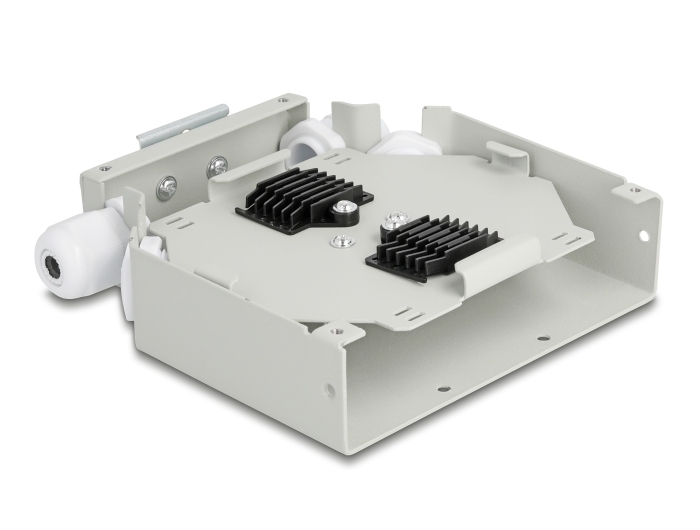

With splice cassette
The integrated splice cassette allows for the clean routing of individual fibers, ensuring optimal transmission of optical signals. In addition, the cassette is perfect for mechanical splicing and fusion splicing.

Specification:
• 6 slots for SC Duplex or LC Quad couplings
  Rectangular cut-out: 26.3 x 9.9 mm
  Mounting hole diameter: ca. 2.1 mm
  Pitch of screw hole: ca. 30.6 mm
• Alternative panel for 8 x SC Simplex or LC Duplex couplings
  Rectangular cut-out: 13.2 x 9.9 mm
  Mounting hole diameter: ca. 1.8 mm
  Pitch of screw hole: ca. 18.0 mm
• DIN rail mounting: 35 mm
• With splice cassette
• PG11 cable glands and sealing plugs
• Environmental temperature: -40 °C ~ 85 °C
• Housing colour: grey
• Housing material: metal
• Dimensions (LxWxH): ca. 130 x 126 x 35 mm

Package content:
• Fiber optic distribution box
• Panel

Data sheet:
http://www.delock.de/produkt/86095/pdf.html?sprache=en
