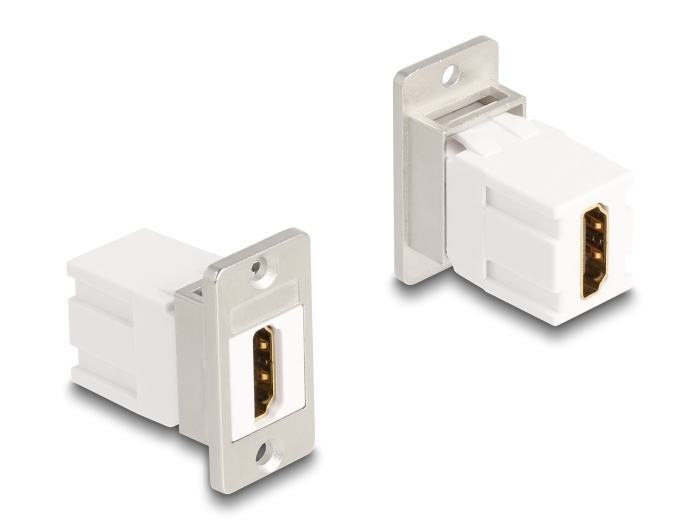

Delock Panel Mount Keystone Module HDMI female to female 8K 60 Hz conical

Reference 67166

Condition: New

More info

This Keystone module with mounting holder by Delock can be used to extend HDMI cables and is suitable for installation in housings or switch cabinets.

Specification:
• Connectors:
1 x HDMI female
1 x HDMI female
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware)
• With Keystone holder for panel mount
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Operating temperature: -10 °C ~ 60 °C
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): ca. 33.1 x 19.2 x 35.5 mm

Package content:
• HDMI Keystone module with holder

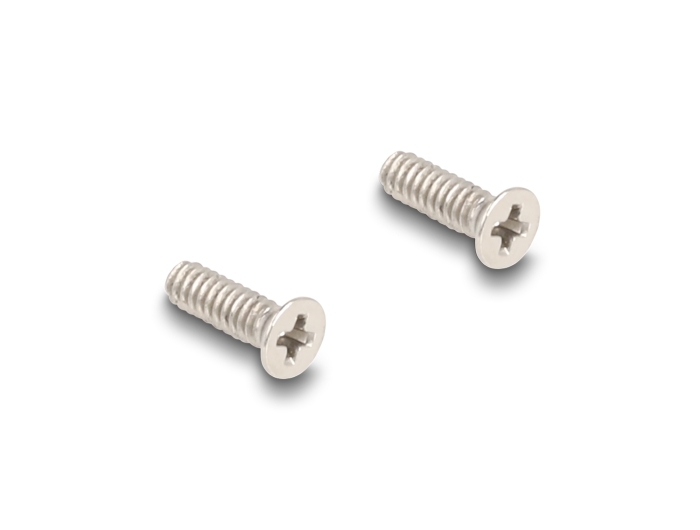

• 2 x screws

Data sheet:
http://www.delock.de/produkt/67166/pdf.html?sprache=en
