> >>Delock USB 5 Gbps USB Type-C™ female 6 pin SMD connector with two metal tabs for solder mounting waterproof 10 pieces
Delock USB 5 Gbps USB Type-C™ female 6 pin SMD connector with two metal tabs for solder mounting waterproof 10 pieces

Delock USB 5 Gbps USB Type-C™ female 6 pin SMD connector with two metal tabs for solder mounting waterproof 10 pieces

DELOCK

66945

New

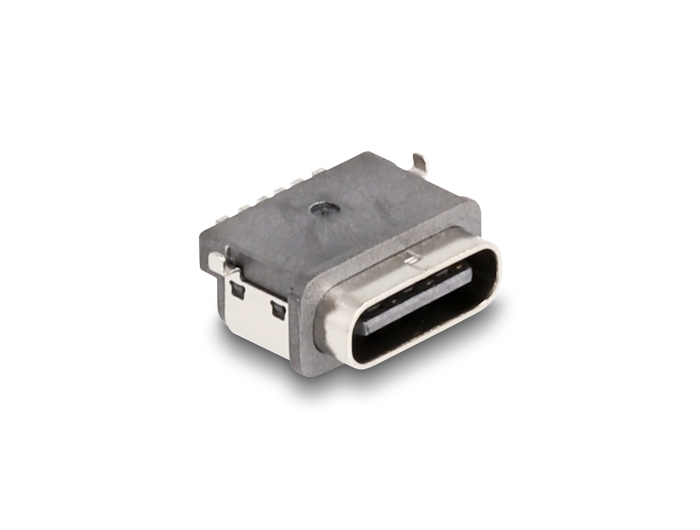

This USB connector by Delock can be used for solder mounting (SMD) on a PCB board.
Specification:
• Connector: 1 x USB 5 Gbps USB Type-C™ female 6 pin
• For SMD PCB mounting
• With two metal tabs
• Waterproof
• Vertical mounting
• Rated current: 5 A
• Rated voltage: 100 V
• Contact surface: gold-plated
• Operating temperature: -40 °C ~ 85 °C
• Flammability class: UL 94V-0
• Dimensions (LxWxH): ca. 11.6 x 9.9 x 4.4 mm
Package content:

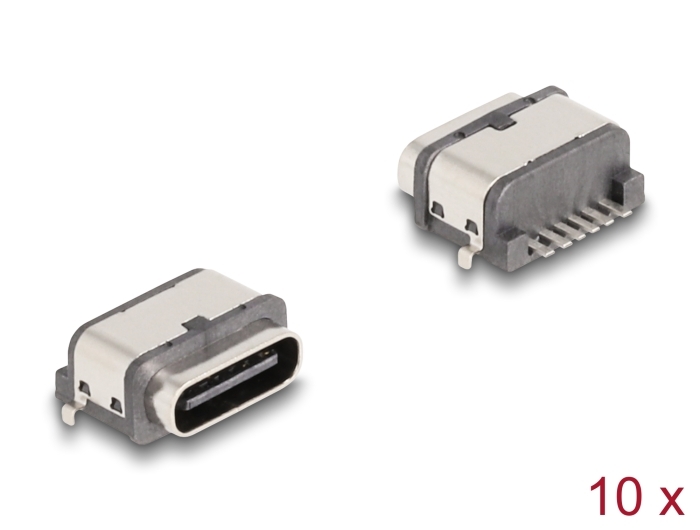

• 10 x Connector

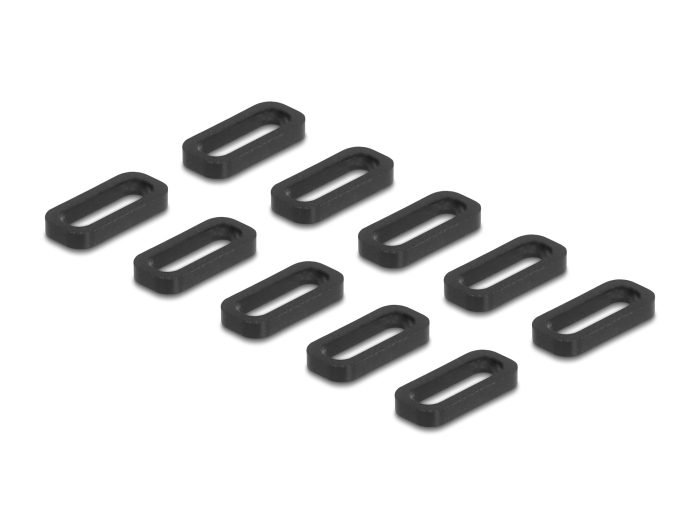

• 10 x rubber seal
Data sheet:
http://www.delock.de/produkt/66945/pdf.html?sprache=en
