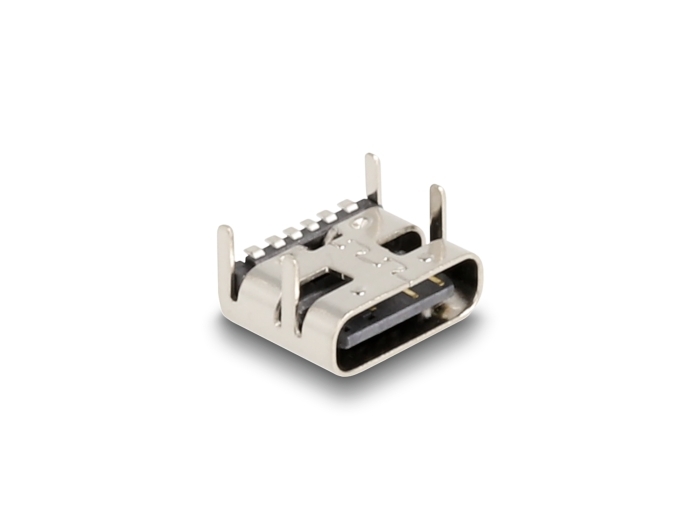

Delock USB 5 Gbps USB Type-C™ female 6 pin SMD connector for solder mounting 90° angled 10 pieces

Delock USB 5 Gbps USB Type-C™ female 6 pin SMD connector for solder mounting 90° angled 10 pieces

DELOCK

66949

New

This USB connector by Delock can be used for solder mounting (SMD) on a PCB board.
Specification:
• Connector: 1 x USB 5 Gbps USB Type-C™ female 6 pin 90° angled
• For SMD PCB mounting
• Horizontal mounting
• Rated current: 5 A
• Rated voltage: 100 V
• Contact surface: gold-plated
• Operating temperature: -40 °C ~ 85 °C
• Flammability class: UL 94V-0
• Dimensions (LxWxH): ca. 8.9 x 6.9 x 5.1 mm
Package content:

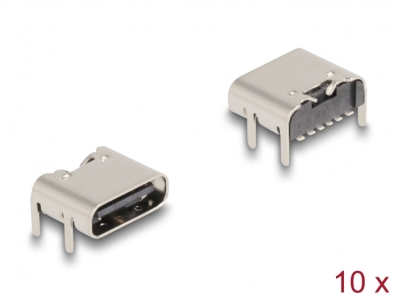

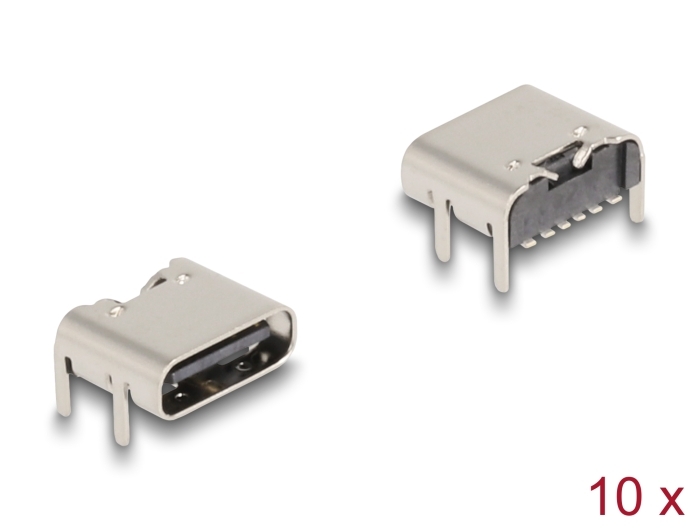

• 10 x Connector
Data sheet:
http://www.delock.de/produkt/66949/pdf.html?sprache=en
