> >>Delock USB 5 Gbps Type-A female double row 18 pin THT connector for through-hole mounting 90° angled 10 pieces

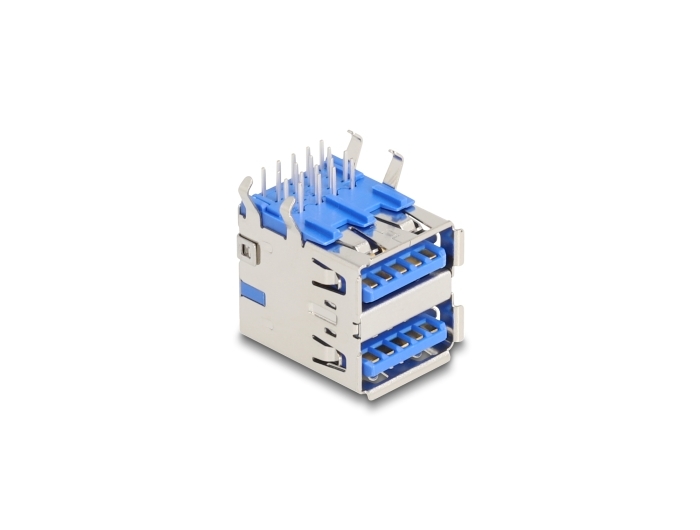

Delock USB 5 Gbps Type-A female double row 18 pin THT connector for through-hole mounting 90° angled 10 pieces

Delock USB 5 Gbps Type-A female double row 18 pin THT connector for through-hole mounting 90° angled 10 pieces

DELOCK

66950

New

This USB connector by Delock can be used for through-hole mounting (THT) on a PCB board.
Specification:
• Connector: 2 x USB 5 Gbps Type-A female 18 pin 90° angled
• For THT PCB mounting
• Horizontal mounting
• Rated current: 0.25 A, 1.8 A
• Rated voltage: 30 V
• Contact surface: selectively gold-plated
• Operating temperature: -40 °C ~ 85 °C
• Flammability class: UL 94V-0
• Dimensions (LxWxH): ca. 17.2 x 15.6 x 14.5 mm
Package content:

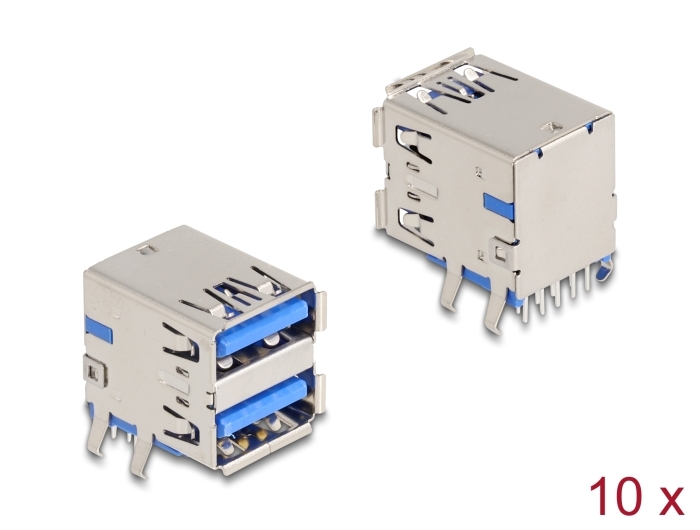

• 10 x Connector
Data sheet:
http://www.delock.de/produkt/66950/pdf.html?sprache=en
