Delock Consolidation Point Box 4 port for Keystone Modules

Reference 66235

Condition: New

More info

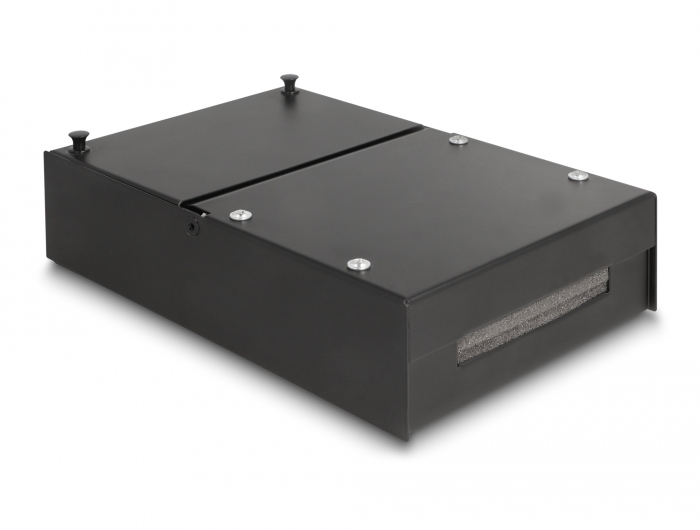

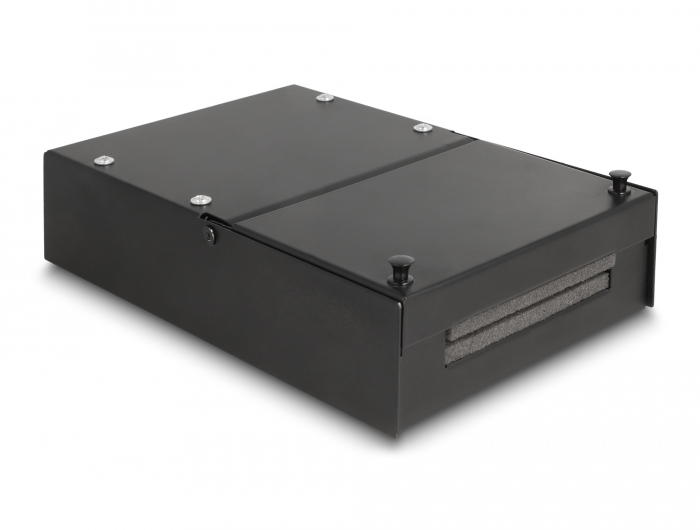

This distribution box by Delock can be used to install 4 Keystone modules and serves as a collection point for structured network cabling in buildings or in industrial areas. The box can be mounted on the wall, ceiling or floor and can also be used as a desktop version.

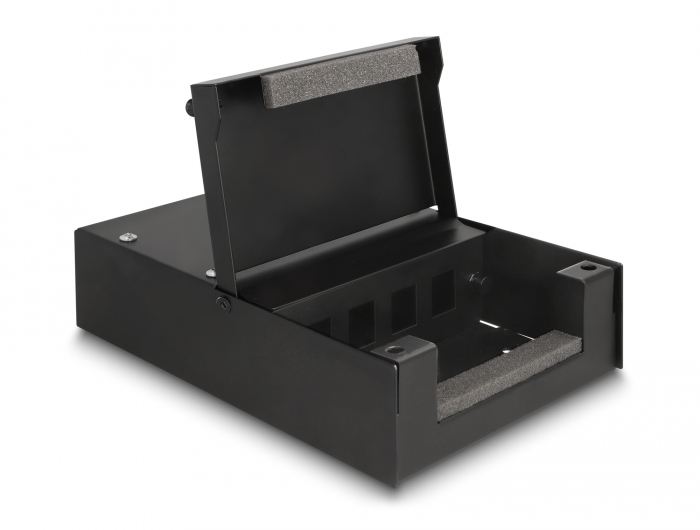

Hinged lid for easy mounting

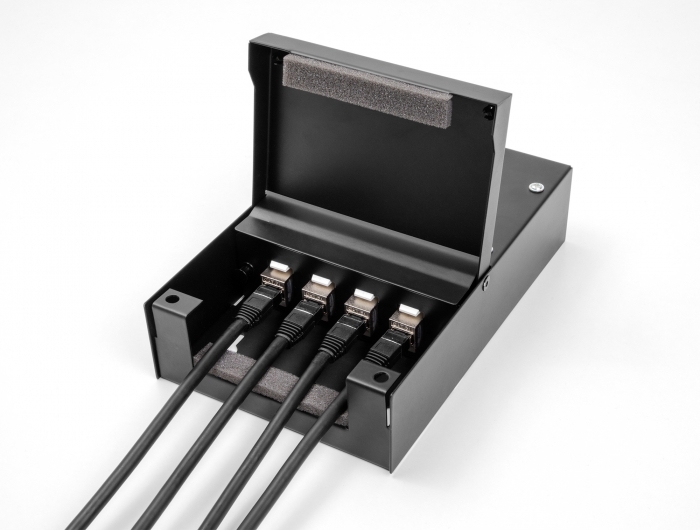

The distribution box has a hinged lid that can be opened without tools and enables easy connection of the patch cables.

Cable entry on the front and rear according to IP20 protection class
The two cable entries both on the front and on the rear are protected against for e.g. dust in accordance with IP20 protection class.

Specification:
• Distribution box for structured cabling
• 4 slots for Keystone modules
• Wall mounting:
Mounting hole diameter: ca. 4.2 mm
Pitch of screw hole: ca. 134.8 mm
• Cable feed on front and rear side
• Hinged lid for easy mounting
• Protection class: IP20
• Colour: black
• Material: metal
• Dimensions (LxWxH): ca. 203 x 134 x 58 mm

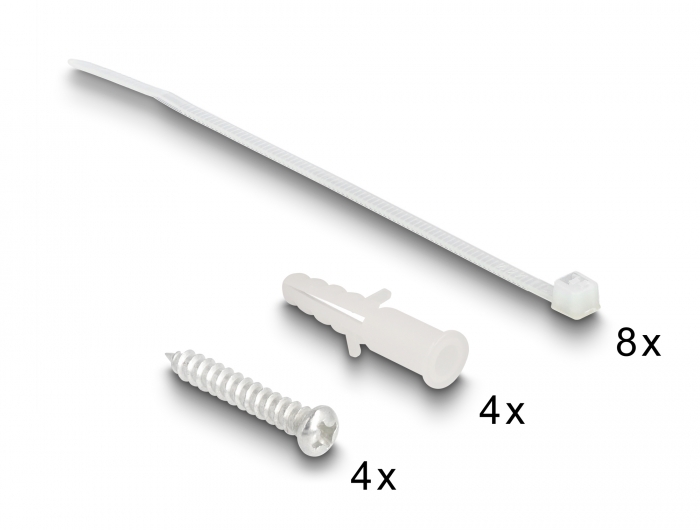

Package content:
• Distribution box
• 8 x cable tie
• 4 x screw
• 4 x dowel
