Delock RJ45 Modular Plug with curved latch Cat.6 and bend protection boots 50 pcs set

DELOCK

66904

New

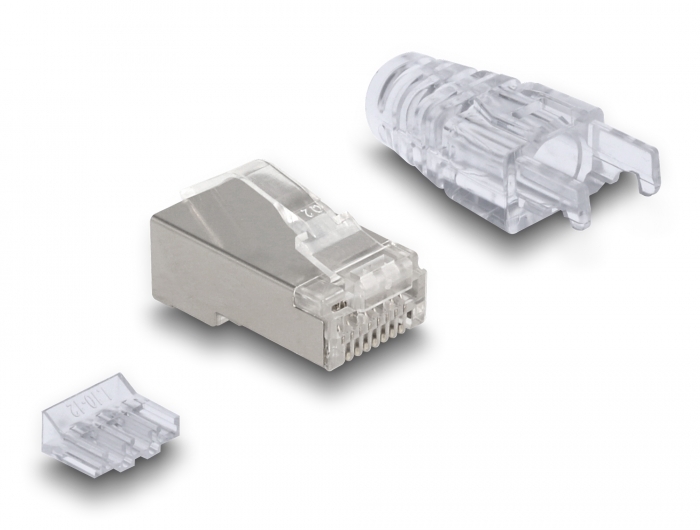

This high quality RJ45 plug set by Delock includes shielded RJ45 plugs with curved latch, suitable bend protection boots and a cable manager for optimal assembly installation of cables from 26 - 23 AWG.

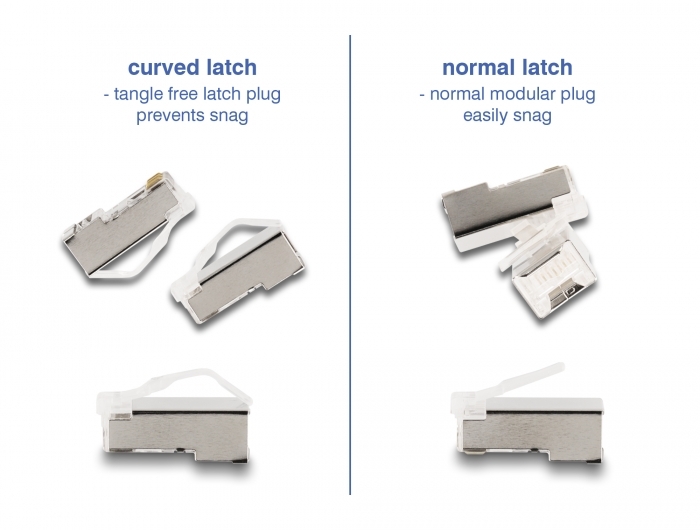

With curved latch
The RJ45 plug is designed with a curved latch that gives way when the plug is pulled out and therefore cannot be damaged.

With cable manager and bend protection boots
The RJ45 plug can be easily installed with the included cable manager and the bend protection boots protects the cable end from abrasion and prevents heavy tensile strain on the cable.
Specification:
• RJ45 plug with curved latch
• Suitable for Cat.6 cables
• For solid or stranded wire (26 - 23 AWG)
• Shielded (FTP)
• 3-prong contact
• Contacts gold-plated: 1.27 um / 50 u″
• Housing material: PC
• Dimensions (LxWxH): ca. 22.5 x 15.0 x 11.7 mm

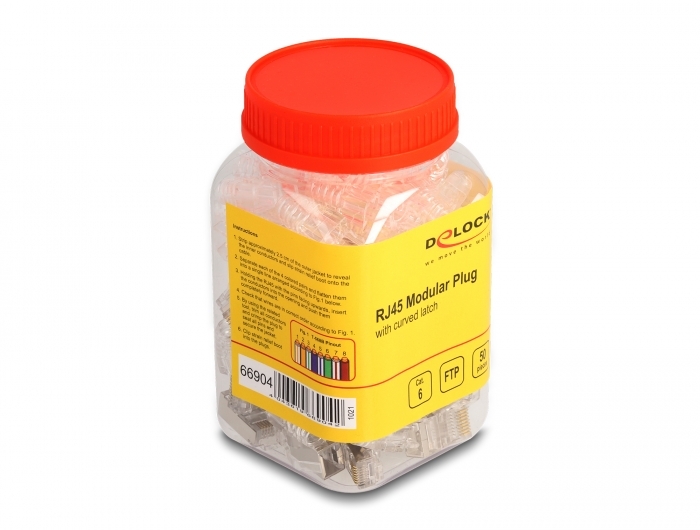

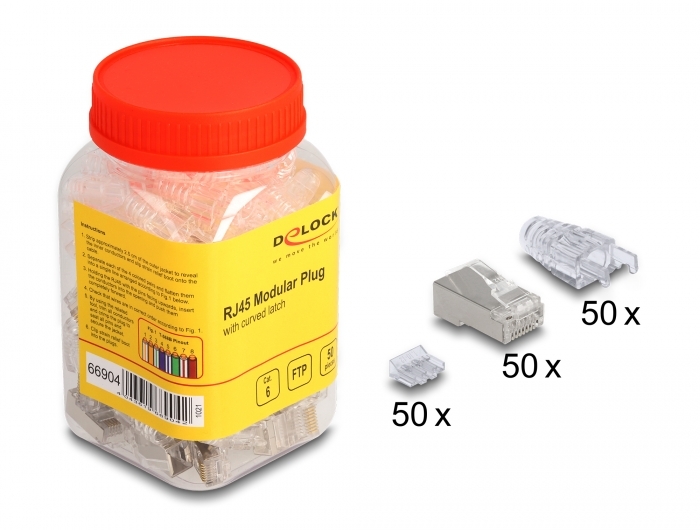

Package content:
• 50 x RJ45 plug
• 50 x bend protection boots
• 50 x Cable manager
Data sheet:
http://www.delock.de/produkt/66904/pdf.html?sprache=en
