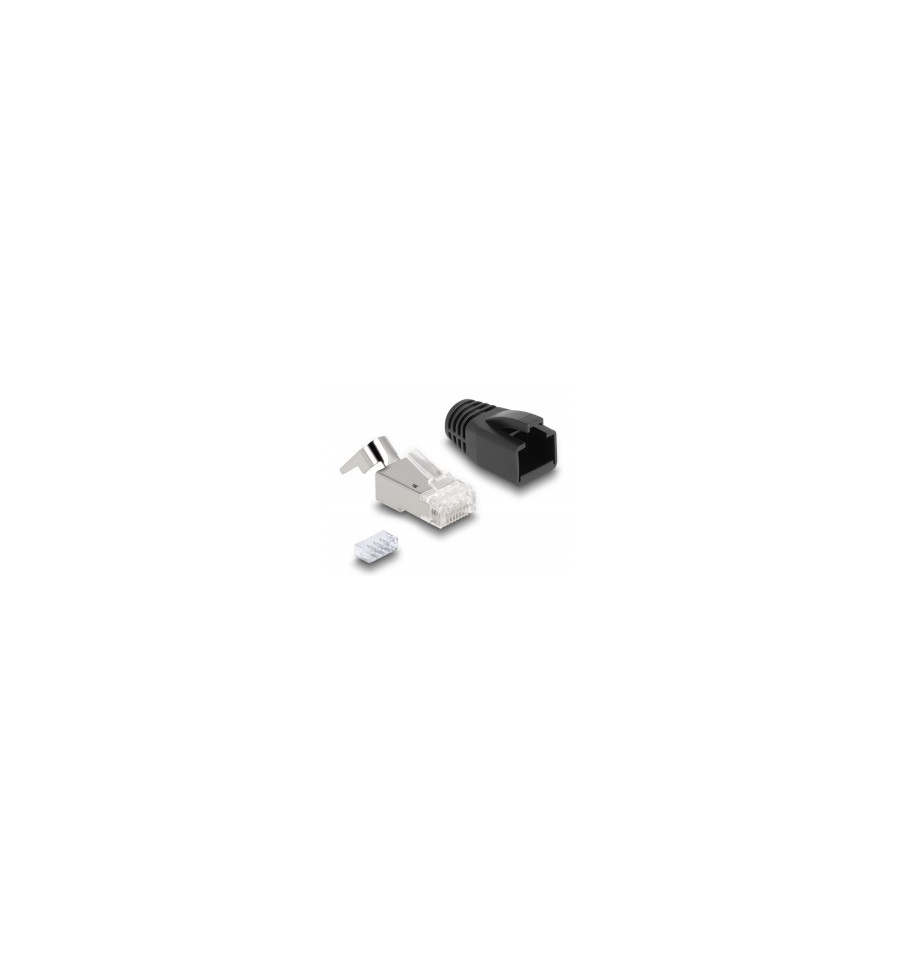

Delock RJ45 Modular Plug with strain relief Cat.6A, Cat.7 and bend protection boots 25 pcs set

Reference 66903

Condition: New

More info

This high quality RJ45 plug set by Delock includes shielded RJ45 plugs with strain relief, bend protection boots and a cable manager for optimal assembly installation of cables from 23 - 22 AWG.

With cable manager and bend protection boots

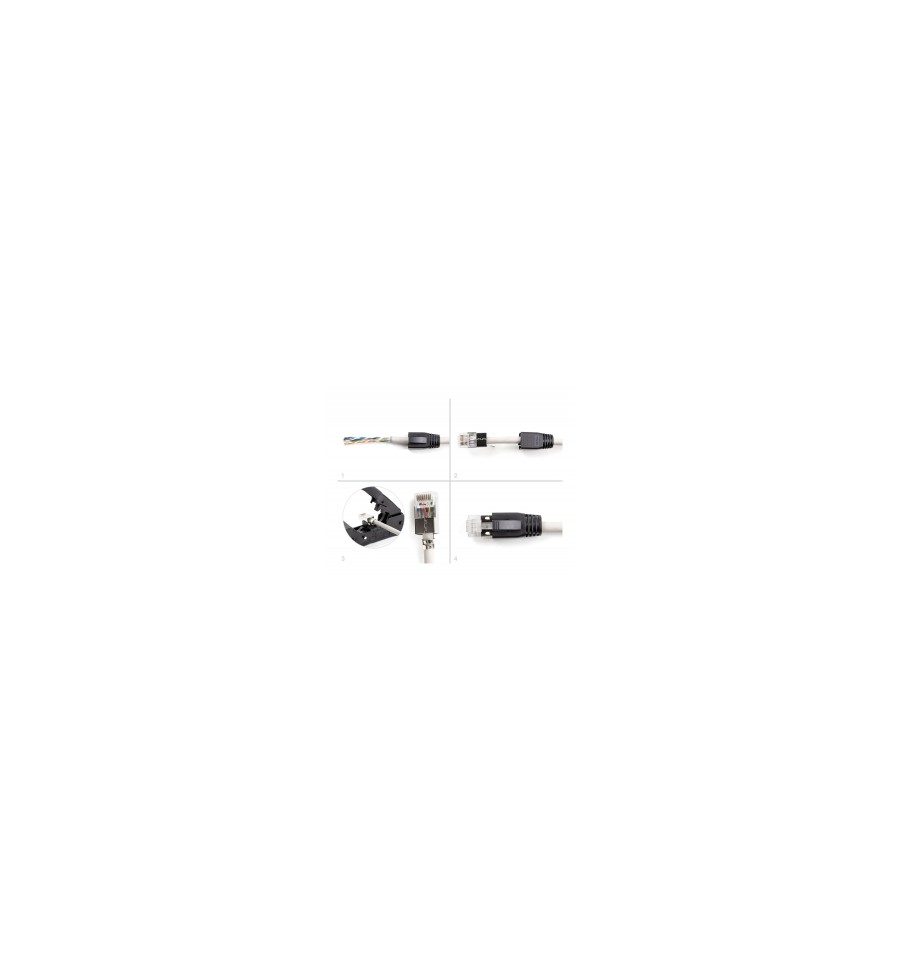

The RJ45 plug can be easily installed with the included cable manager and the bend protection boots protects the cable end from abrasion and prevents heavy tensile strain on the cable.

Specification:
• RJ45 plug with strain relief
• Suitable for Cat.6A and Cat.7 round cables up to 8 mm
• Wire diameter: ca. 1.5 mm
• For solid or stranded wire (23 - 22 AWG)
• Shielded (S/FTP)
• 3-prong contact
• Contacts gold-plated: 1.27 um / 50 u″
• Housing material: PC
• Dimensions (LxWxH): ca. 22.5 x 15.0 x 11.7 mm

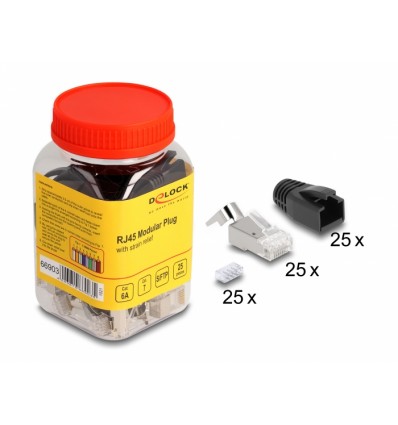

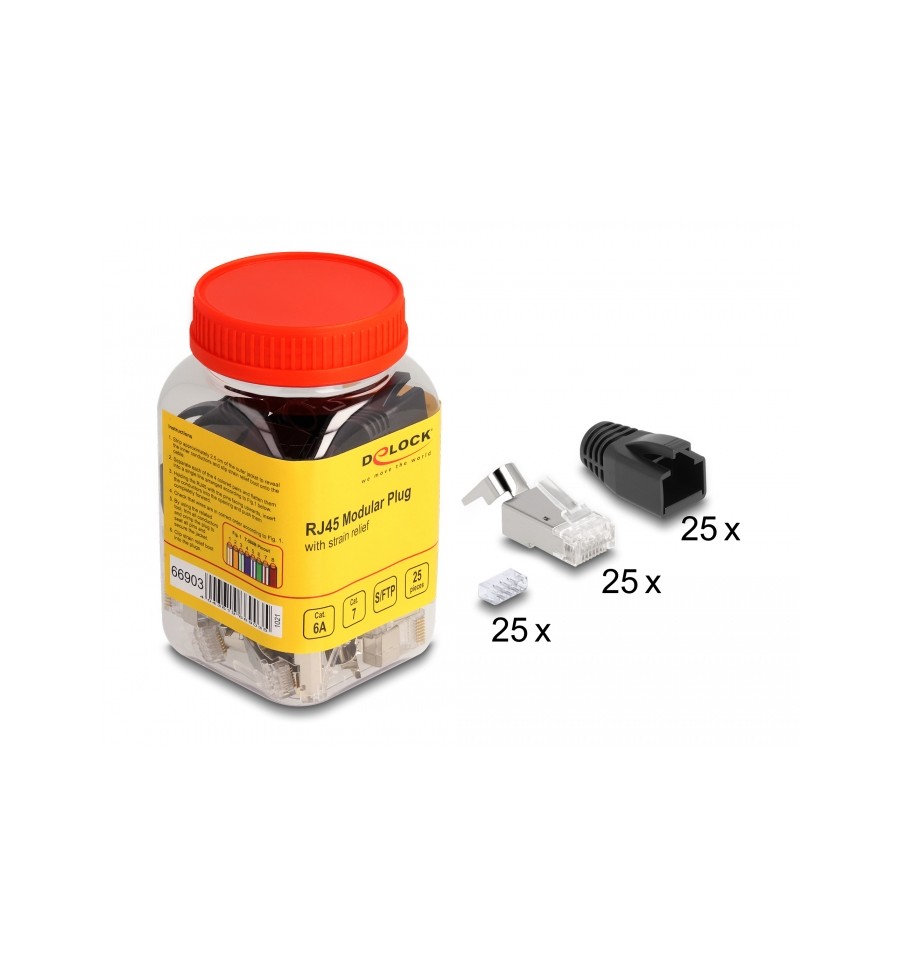

Package content:
• 25 x RJ45 plug
• 25 x bend protection boots
• 25 x Cable manager

Data sheet:
http://www.delock.de/produkt/66903/pdf.html?sprache=en
