Delock Easy 45 Module Plate Round cut-out Ø 24 mm, 45 x 45 mm 5 pieces white

DELOCK

81394

New

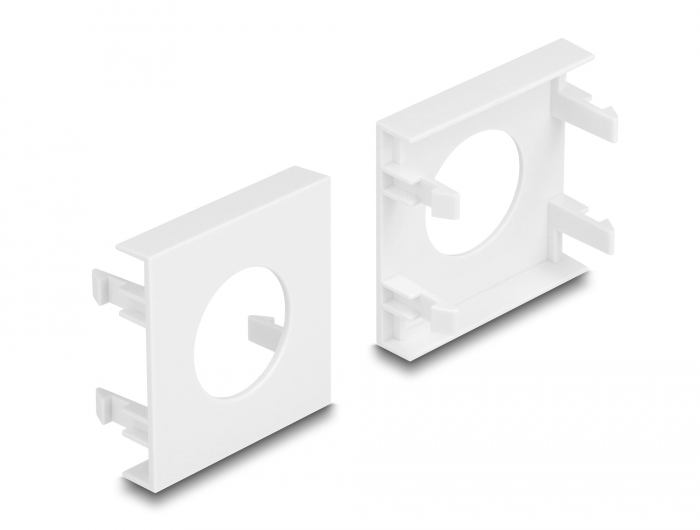

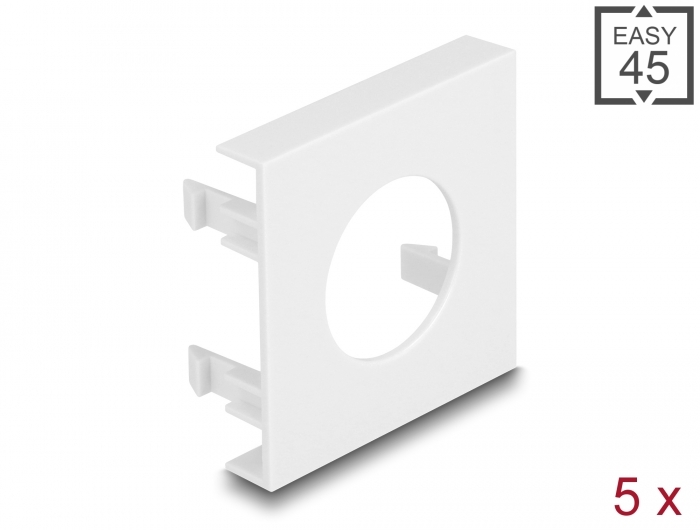

This module plate by Delock provides a hole cut-out of 24 mm. The simple snap-in mechanism ensures that the cover is firmly in place and can be easily and toolless changed if necessary.

Easy 45 connects

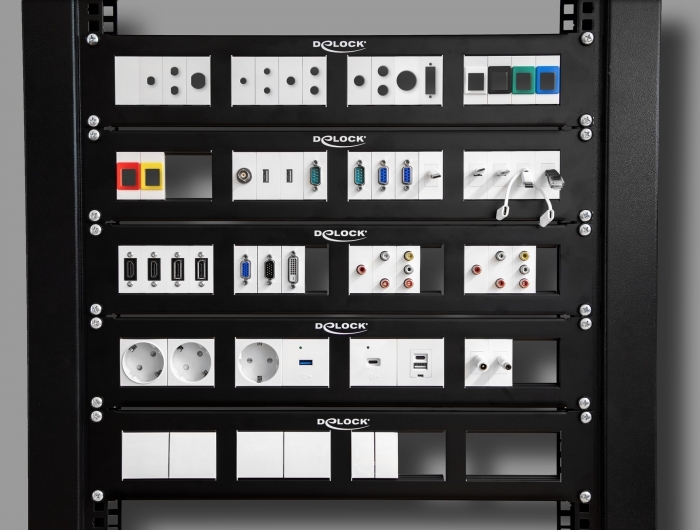

Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.
System requirements:
• A free module port Delock Easy 45 (45 x 45 mm)
Specification:
• Material: PC plastic
• Suitable for module holder Delock Easy 45
• Suitable for 45 mm cable duct with minimum depth 45 mm

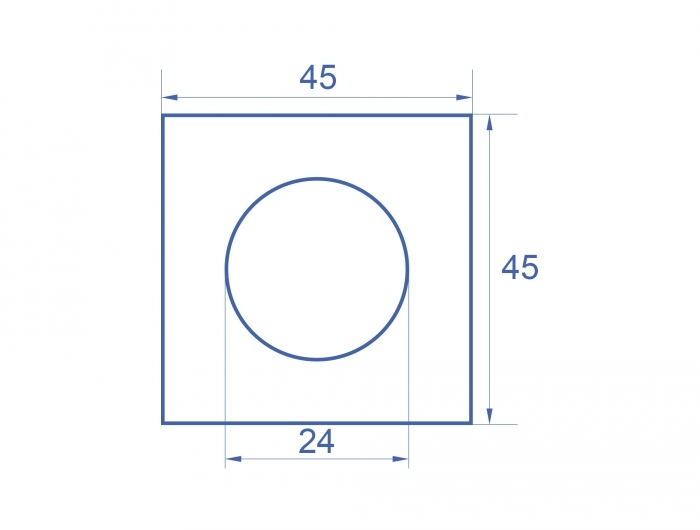

• Cut-out: Ø 24 mm
• Module size: 45 x 45 mm
• Dimensions (LxWxH): ca. 45.0 x 45.0 x 22.0 mm
• Colour: white
Package content:
• 5 x module plate
Data sheet:
http://www.delock.de/produkt/81394/pdf.html?sprache=en
