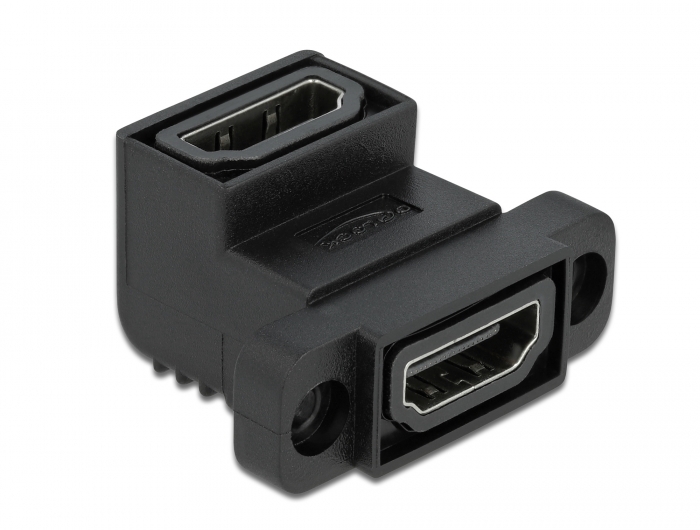

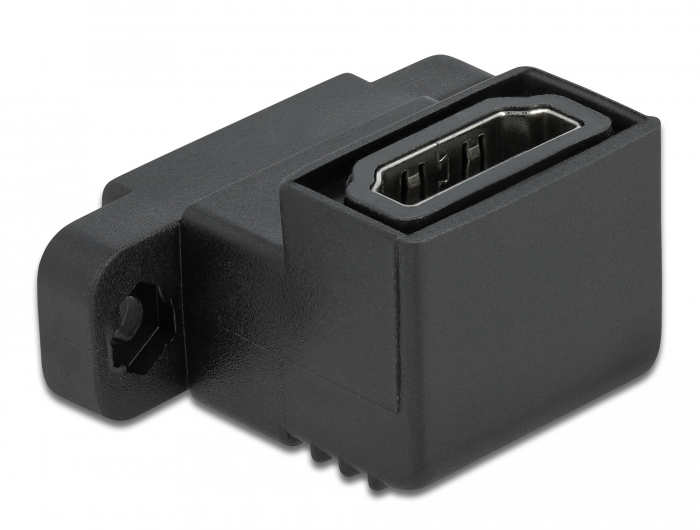

Delock Easy 45 HDMI Adapter angeled 90°

DELOCK

81308

New

This Easy 45 adapter by Delock is designed to connect two HDMI cables. The adapter can be used to extend cables or as a gender changer. The two holes on the side allow the adapter to be screwed into devices or furniture, for example.

Suitable for Delock Easy 45 module cover
The shape and hole spacing are optimally matched to the Delock Easy 45 module plate with rectangular cut-out. In conjunction with the module cover, the adapter can be mounted in a Delock Easy 45 module holder or in a 45 mm cable duct.
System requirements:
• A free HDMI-A male port
Specification:
• Connectors: 2 x HDMI-A female
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
  hardware)
• Supports CEC 2.0 control commands
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Material: PC plastic
• Suitable for Easy 45 module plate rectangular cut-out 12.5 x 21.5 mm
• Pitch of screw hole: ca. 23.5 mm
• Dimensions (LxWxH): ca. 36.0 x 26.5 x 20.5 mm
• Colour: black
Package content:
• HDMI adapter
Data sheet:
http://www.delock.de/produkt/81308/pdf.html?sprache=en
