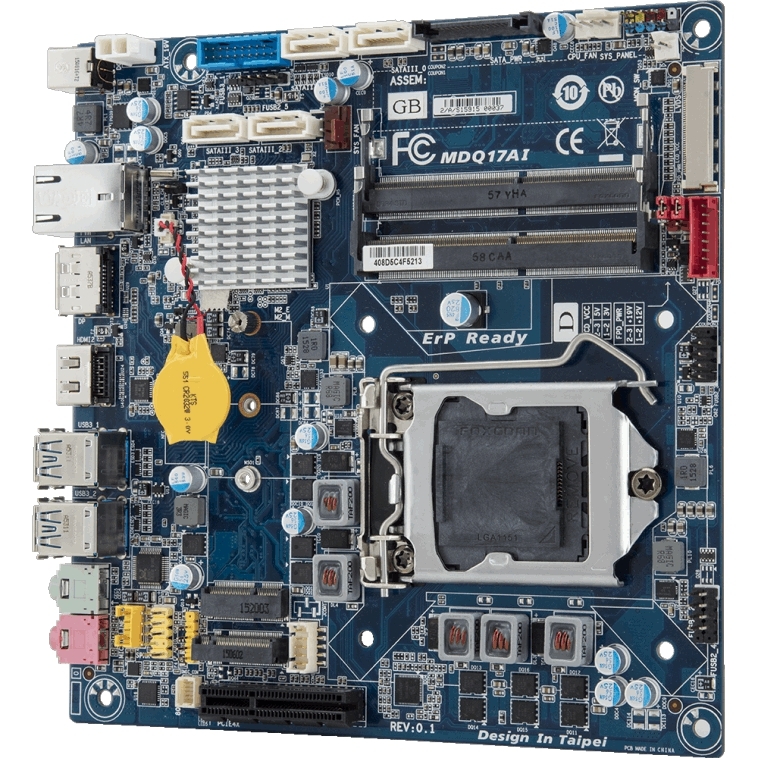

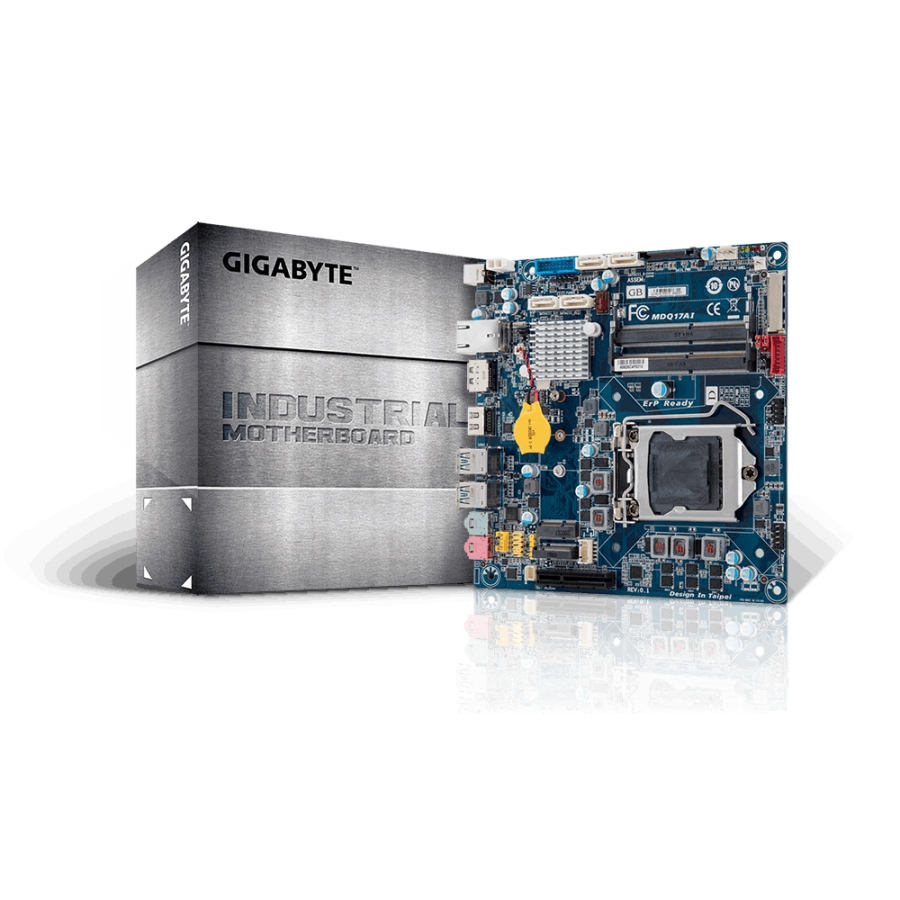

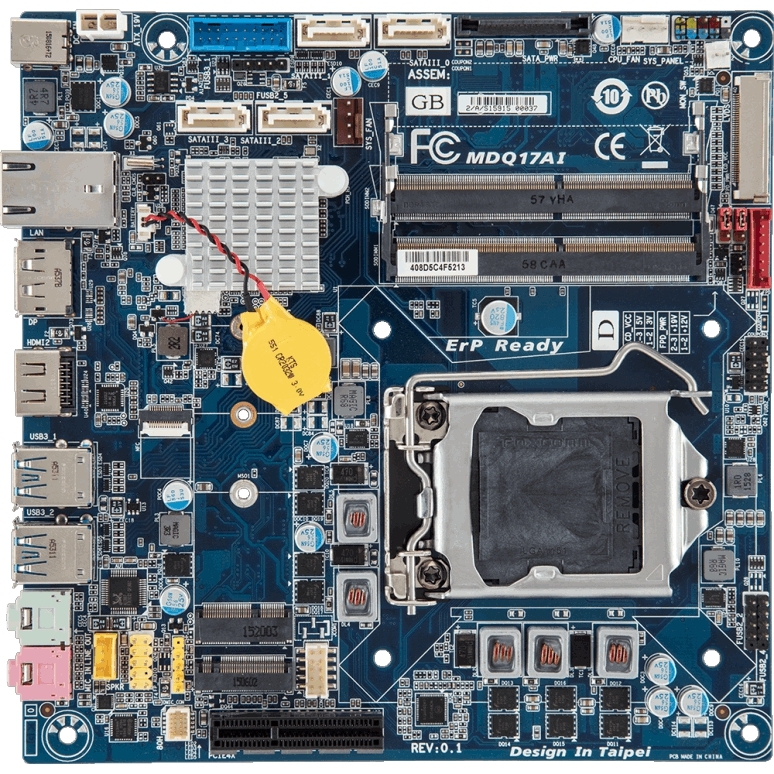

Mainboard Gigabyte MDQ17AI Industrial Thin Mini-ITX

Mainboard Gigabyte MDQ17AI Industrial Thin Mini-ITX

Gigabyte

33202

New

Add to Compare
Specification:
24/7 Operation - Extended Lifecycle

Processor socket LGA 1151 for:
Intel® Core™ i7 processors
Intel® Core™ i5 processors
Intel® Core™ i3 processors
Intel® Pentium® processors
Intel® Celeron® processors
L3 cache varies with CPU
Chipset:
Intel® Q170 Express Chipset
Memory:
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2400 MHz memory modules
Lan: 1 x GbE LAN port (Intel® I219LM)
Video:
Integrated Graphics Processor - Intel® HD Graphics support:
1 x DisplayPort up to 4096 x 2304 @60Hz
• Support for DisplayPort 1.2 version
1 x HDMI port up to 4096 x 2160 @24Hz
• Support for HDMI 1.4 version
1 x LVDS connector up to 1920 x 1200 @60Hz
• Support for up to 3 displays at the same time
Audio: Realtek ALC887 codec High Definition Audio

Expansions slots:
1 x PCIe x4 (3.0 x4 bus) slot
1 x M.2 Key E (PCIe 3.0 x4)
• Supports NGFF-2230

Storage:
4 x SATA 6Gb/s ports (One port with SATA DOM supported)
1 x M.2 key M (SATA 6Gb/s or PCIe 3.0 x4)
• Supports NGFF-2260 / 2280

Internal I/O:
1 x 2-pin power connector
1 x CPU fan header
1 x System fan header
4 x SATA 6Gb/s connectors
2 x M.2 slot
1 x SATA power connector
5 x USB 2.0 headers
1 x USB 3.0 connector
1 x Front panel header
1 x Front panel audio header
1 x Digital microphone header
1 x LVDS 18/ 24bit connector
1 x LCD_VCC header
1 x FPD_PWR header
1 x Backlight switch header
1 x NFC connector
1 x COM
1 x 2 pin (1 x 2) power connector
1 x Onboard TPM 2.0
(SLB9665VQ2.0 Infineon)

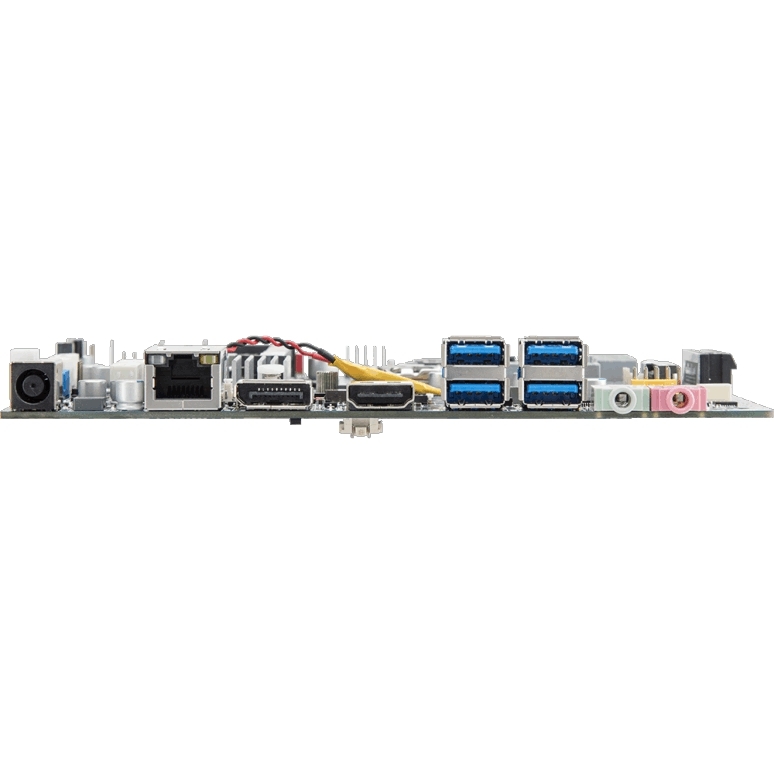

External I/O:
1 x RJ45
4 x USB 3.0
1 x HDMI
1 x DisplayPort
1 x Line Out
1 x MIC In
1 x 12-19V DC-in

Operating temperature: 0°C to 50°C
Storage temperature: -40°C to 70°C
OS supported:
Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 (x32 / x64)
• Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Form factor: Mini-ITX 17 x 17 cm

Package content:
1 x Quick Installation Guide
1 x IO standard shielding (12AIO-H77TN4-00R)
1 x low profile shielding (12AIO-H77TN3-00R)
1 x SATA power cable 130mm (25CRI-130310-K1R)
