Mainboard Gigabyte GA-H110MSTX-HD3 Industrial Mini-STX

Mainboard Gigabyte GA-H110MSTX-HD3 Industrial Mini-STX

Gigabyte

33180

New

Add to Compare

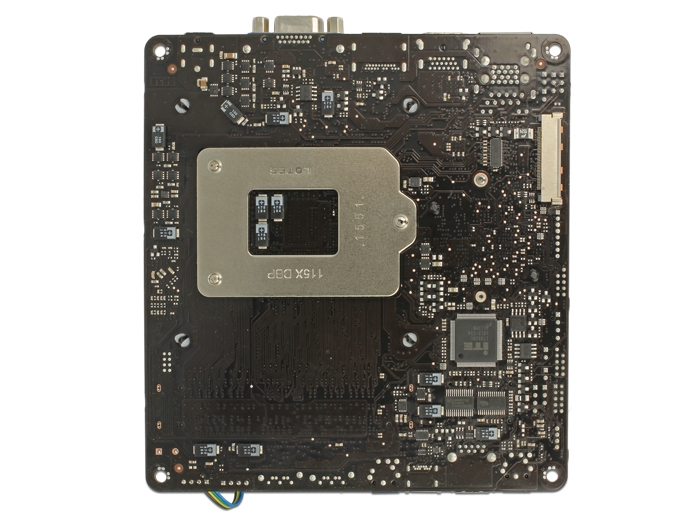

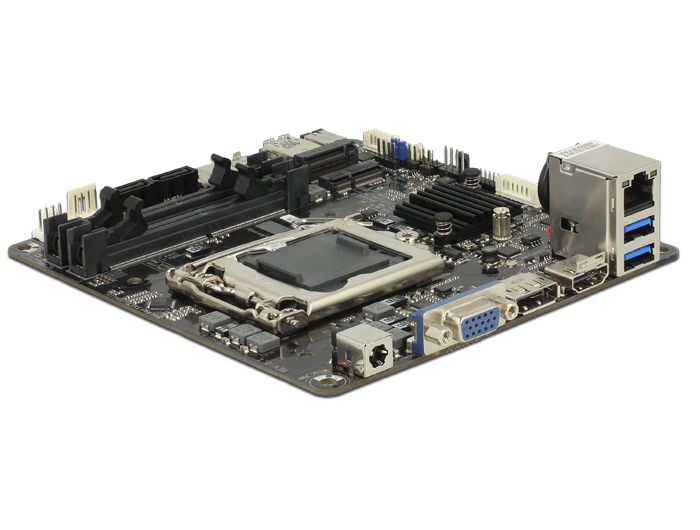

The GIGABYTE GA-H110MSTX is one of the first industrial embedded motherboards with the new form factor Mini-STX (14 cm x 14.7 cm) and impresses with high-quality components and a long-term availability of up to 5 years. Recommended application areas are industrial plants, digital signage applications and other product categories that require high quality as well as 24/7 operation.
Specification:
24/7 Operation - Extended Lifecycle up to 5 Years

Processor socket LGA 1151 for:
Intel® Core™ i7 / i5 / i3 supports 6th and 7th generation, Intel® Pentium, Intel® Celeron (up to 64 W)
Chipset: Intel® H110 Express
Memory socket:
2 x DDR4 SO-DIMM up to 32 GB, supports 2133 MHz,
dual channel memory architecture
(Due to a Windows 32bit operating system limitation, when more
than 4 GB of physical memory is installed, the actual memory size
displayed will be less than the size of the physical memora installed.)

LAN: 1 x Intel® GigaLAN (10/100/1000 Mbit)
Audio: Realtek ALC255 High Definition Audio
Graphics:
DisplayPort (Maximum resolution 4096 x 2304@60 Hz)
Support for DP 1.2 version
HDMI (Maximum resolution 4096 x 2160@24 Hz)
Support for HDMI 1.4 version
VGA (Maximum resolution 1920 x 1200@60 Hz)

Expansions slots:
1 x M.2 Socket 1 connector for wireless comminication module (M.2_WIFI)

Storage:
2 x SATA 6Gb/s
1 x M.2 connector (Socket 3, M key, type 2280 SATA SSD support)

Internal I/O:
1 x CPU fan header
1 x System fan header
2 x SATA 6 Gb/s
1 x SATA power connector
1 x Front panel header
1 x battery cable header
1 x USB 3.0 port
1 x USB 2.0 header
1 x USB Type-C port
1 x Serial port header
1 x Serial port power select jumper
1 x Speaker header
1 x Buzzer header
1 x Clear CMOS jumper
1 x Chassis intrusion header
1 x Microphone jack
1 x Headphone and microphone combo jack

External I/O:
1 x HDMI
1 x DisplayPort
1 x VGA
2 x USB 3.0
1 x GigaLAN (RJ45)
1 x DC in power connector

For operating sytems:
Windows 10 / 8.1 64 bit
Windows 7 32/64 bit
Operating temperature: 0°C - 60°C
Power supply requirements: Input PWR: 12-19V DC-In
Form factor: Mini-STX 14 cm x 14,7 cm
Package content:
• Mainboard

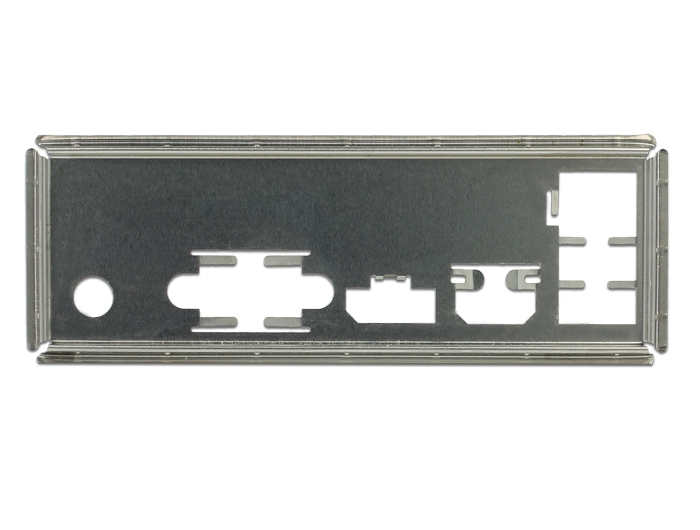

• I/O shield

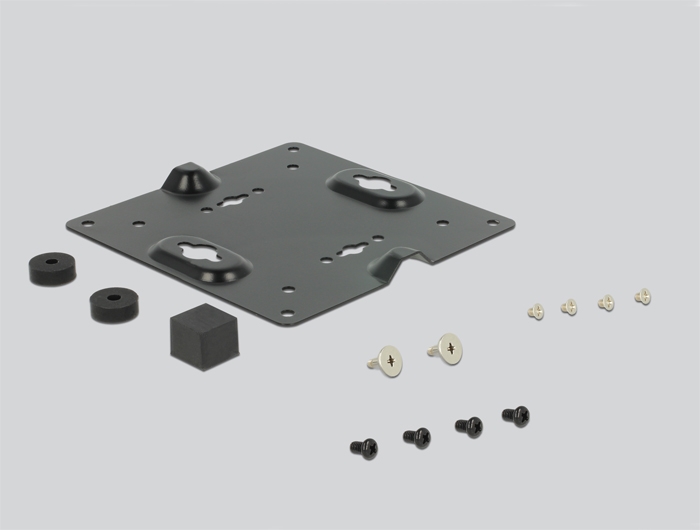

• Wall/VESA mounting plate
• Screws for mounting
